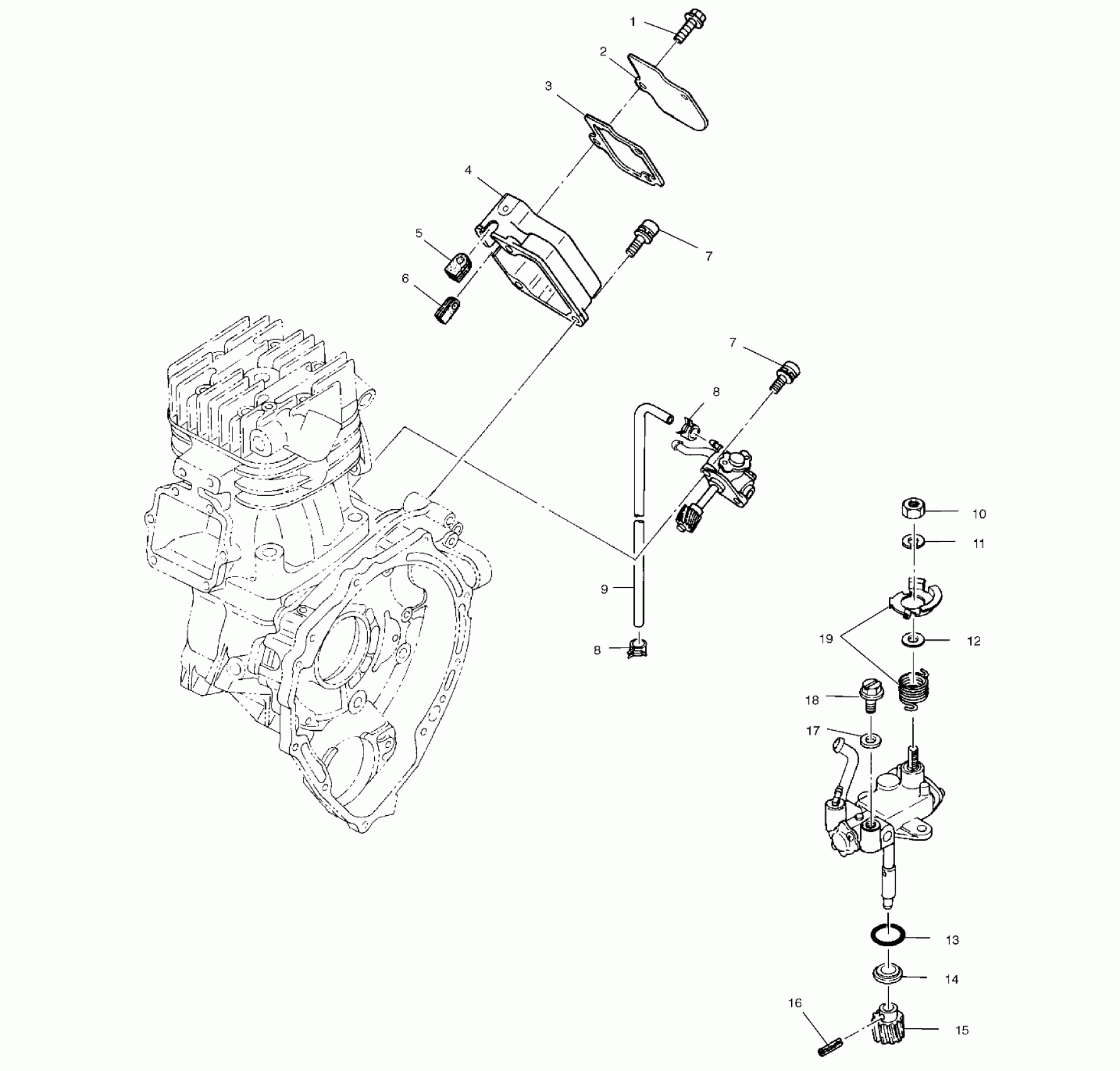

Polaris XPLORER 400 - A02CG38CA OIL PUMP - A02CG38CA (4970247024D03) Diagram

#

Description
Price

-

Asm., Oil Pump [Incl. 10-19]

3085284

Unavailable

1

Bolt and Washer

3084757

$2.39

2

Cover, Case, Oil Pump

3085281

Unavailable

3

Gasket, Case, Oil Pump

3085280

Unavailable

4

Case, Oil Pump

3085520

$23.83

5

Grommet

3086777

Unavailable

6

Grommet

3086779

Unavailable

7

Screw and Washer

3086778

Unavailable

7

Screw and Washer

3086778

Unavailable

8

Clamp, Hose

3083141

$1.49

8

Clamp, Hose

3083141

$1.49

9

Pipe, Vinyl

3086776

Unavailable

10

Nut

3083120

$3.19

11

Washer, Spring

3083121

$299.99

12

Collar, Camshaft

3083445

$2.39

13

O-Ring

3083127

Unavailable

14

Spacer

3084195

Unavailable

15

Wheel

3084196

Unavailable

16

Pin, Spring

3084197

Unavailable

17

Washer

3084194

$6.23

18

Screw, Air Vent

3083125

Unavailable

19

Lever and Spring Set

3085570

Unavailable
