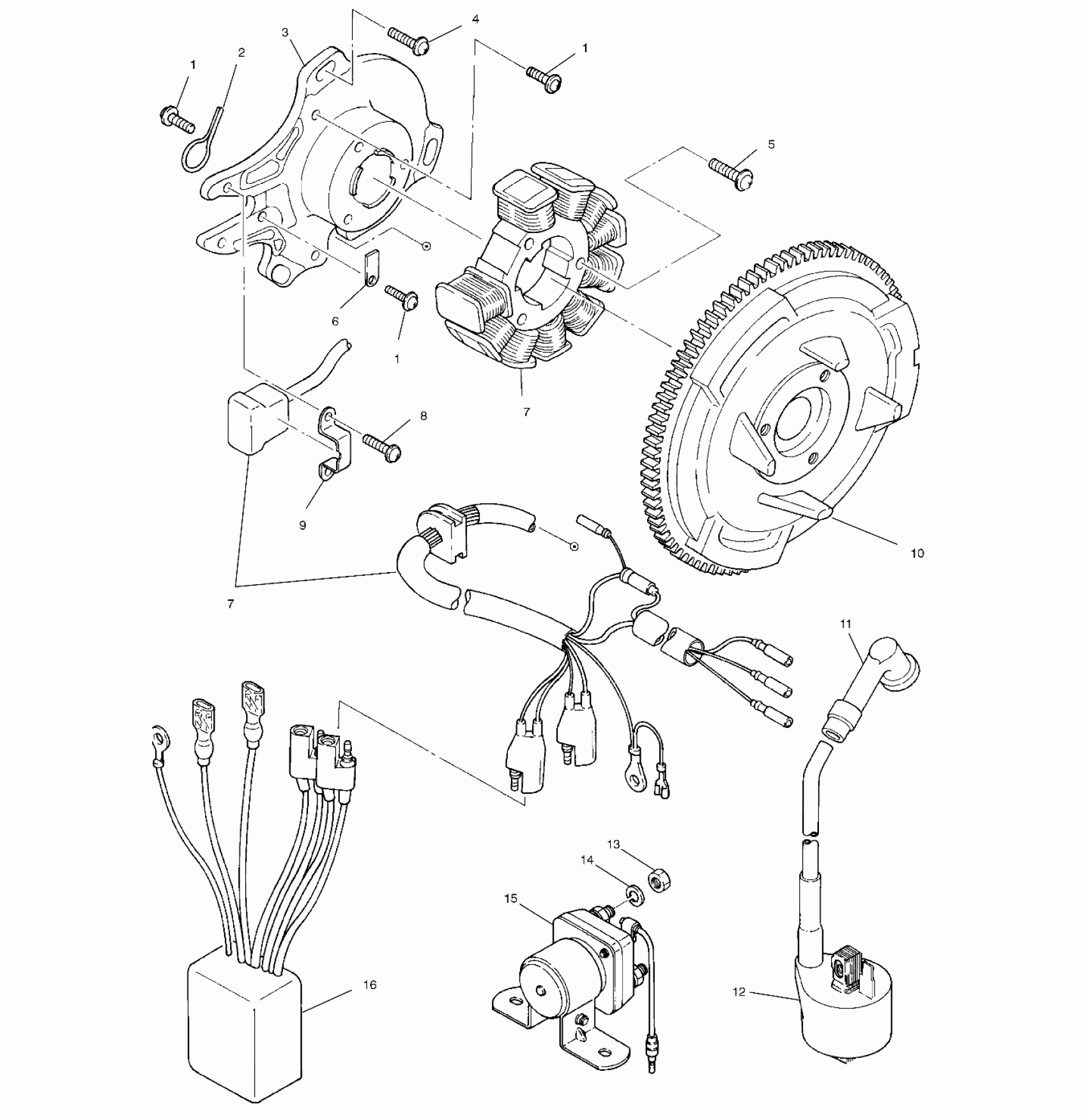

Polaris XPLORER 400 - A02CG38CA MAGNETO - A02CG38CA (4970247024D04) Diagram

#

Description
Price

1

Screw and Washer

3081260

$3.19

1

Screw and Washer

3081260

$3.19

1

Screw and Washer

3081260

$3.19

2

Clamp

3081146

$1.49

3

Asm., Plate [Incl. 1-3,5-9]

3084761

$609.99

3

Plate, Coil

3084762

Unavailable

4

Screw, Flange

3084766

Unavailable

5

Screw and Washer

3081342

$1.49

6

Clamp

3084765

$1.99

7

Stator

3084763

Unavailable

7

Stator

3084763

Unavailable

8

Screw and Washer

3084764

Unavailable

9

Band

3084099

Unavailable

10

Flywheel w/Ring Gear

3084760

Unavailable

11

Cap, Spark Plug

4020129

$9.70

12

Ignition Coil

3083923

Unavailable

13

Nut

3083073

$2.39

14

Washer

3080077

$2.39

15

Switch, Magnetic

3085521

$60.70

16

C.D.I. System

3085623

Unavailable
