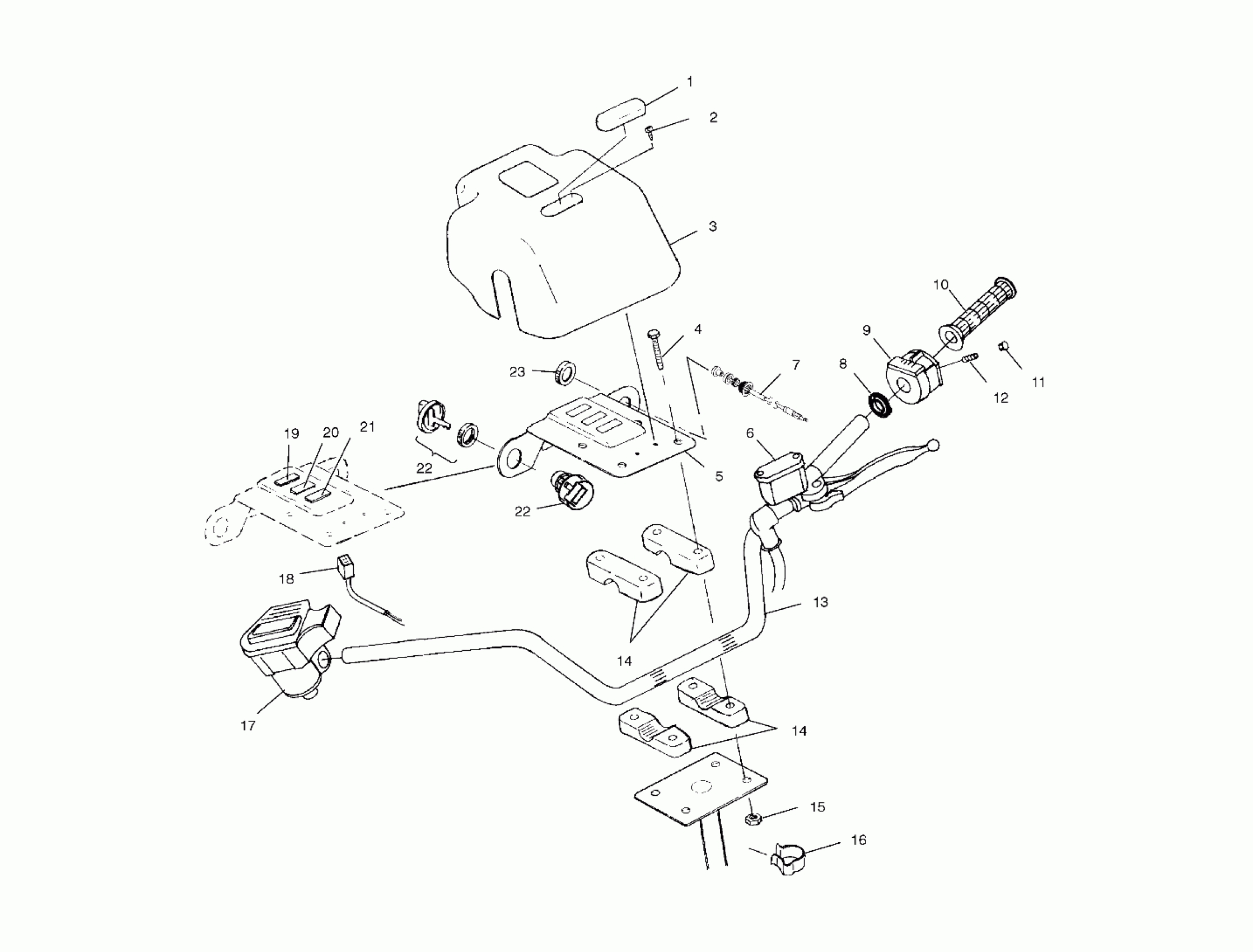

Polaris XPLORER 400 - A02CG38CA HANDLEBAR - A02CG38CA (4970247024B10) Diagram

#

Description
Price

1

Cover, Logo

5432247-070

Unavailable

2

SCREW

7512024

$4.79

3

Panel, Instrument

5433842-070

Unavailable

4

Screw

7517216

Unavailable

5

Bracket, Instrument Panel

5244292-067

Unavailable

6

ASM., MASTER CYLINDER [See Control - Master Cylinder/Brake Line Pg. B7 for Details]

-------

Unavailable

7

Cable, Choke

7081008

$79.99

8

Spacer, Switch, LH

5433903

Unavailable

9

Switch, Handlebar, Hi/Lo/Rev. Override

4010422

$123.54

10

Grip, Handlebar

5433834-070

$24.27

11

PLUG, HOLE

5432952

$5.59

12

Screw

7517625

$4.79

13

Tube, Handlebar

5224715-067

Unavailable

14

Block, Handlebar

5630629

$11.59

14

Block, Handlebar

5630629

$11.59

15

Nut, Nylok

7542122

$1.49

16

Clip, Cable Retaining

7080631

$6.29

17

ASM., THROTTLE CONTROL [See Controls - Throttle Asm./Cable Pg. B6, Ref. 3]

-------

Unavailable

18

Harness, Control Panel

2460872

Unavailable

19

Indicator, Neutral/Reverse

4040054

$31.99

20

Indicator, "Hot Temperature"

4040053

$31.99

21

Indicator, Low Oil

4010140

Unavailable

22

BLANK, KEY, SERIES 2000, 2100, 6700, 6800

4010278

Unavailable

22

KEY SWITCH KEY COVER

5433534

$12.35

22

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

22

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

22

Switch, Ignition

4010390

Unavailable

22

BLANK, KEY, SERIES 2000, 2100, 6700, 6800

4010278

Unavailable

22

KEY SWITCH KEY COVER

5433534

$12.35

22

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

22

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

22

Switch, Ignition

4010390

Unavailable

23

Nut, Choke

7080922

$3.19
