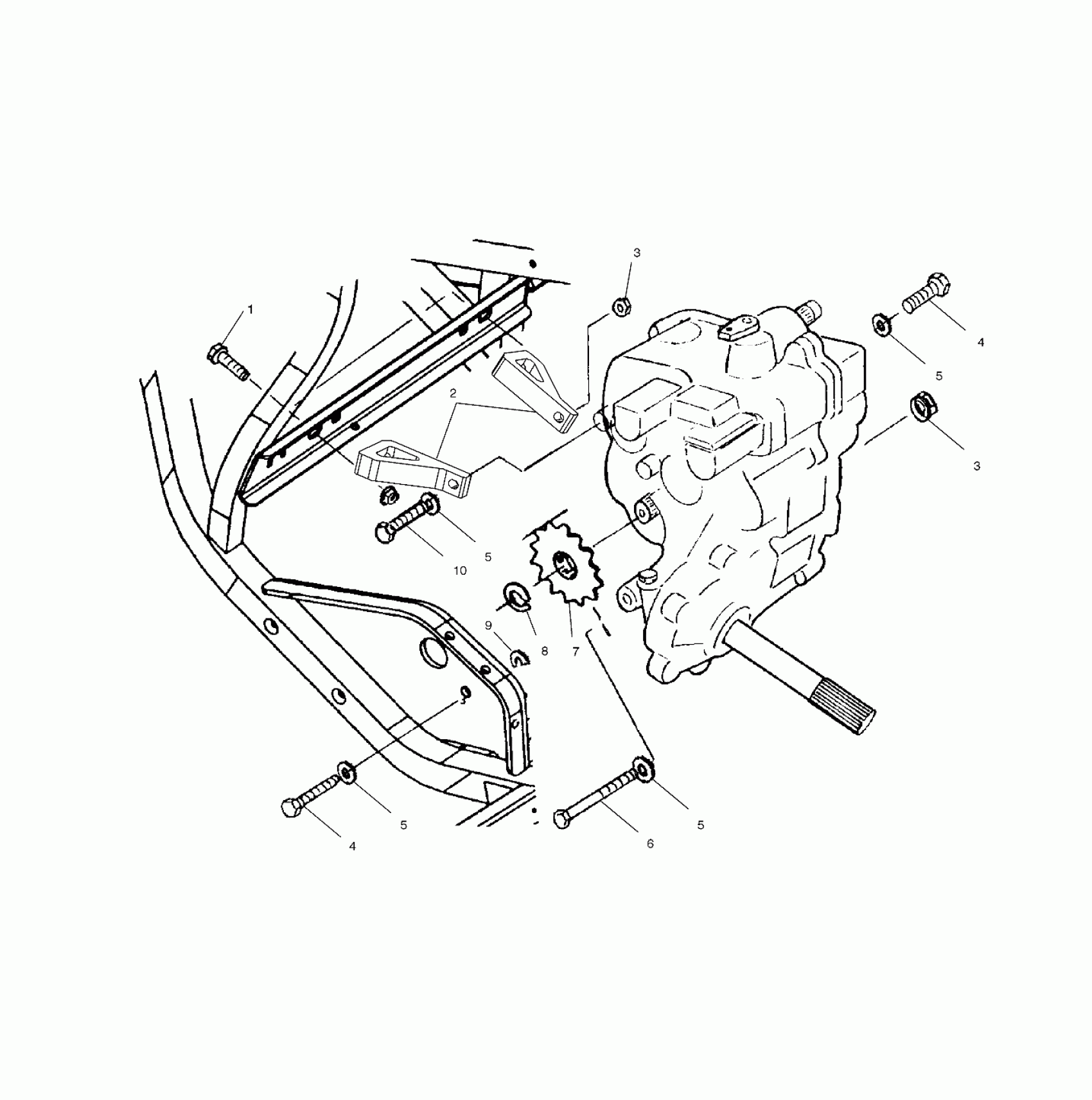

Polaris XPLORER 400 - A02CG38CA GEARCASE MOUNTING - A02CG38CA (4970247024C09) Diagram

#

Description
Price

1

SCREW

7517632

$5.56

2

Mount, Transmission, Rear

5132046

$35.71

3

Nut, Flange Lock

7547089

$4.76

3

Nut, Flange Lock

7547089

$4.76

4

Screw

7512492

$1.19

4

Screw

7512492

$1.19

5

Washer, Flat

7555806

$0.79

5

Washer, Flat

7555806

$0.79

5

Washer, Flat

7555806

$0.79

5

Washer, Flat

7555806

$0.79

6

SCREW

7517646

$7.14

7

Sprocket, 13T

3221041

$44.51

8

RING, RETAINING

7710434

$3.97

9

Shim [.020]

5210764

Unavailable

9

Shim [.010]

5211065

Unavailable

9

Shim [.030]

5211517

Unavailable

10

Screw

7517642

$7.94
