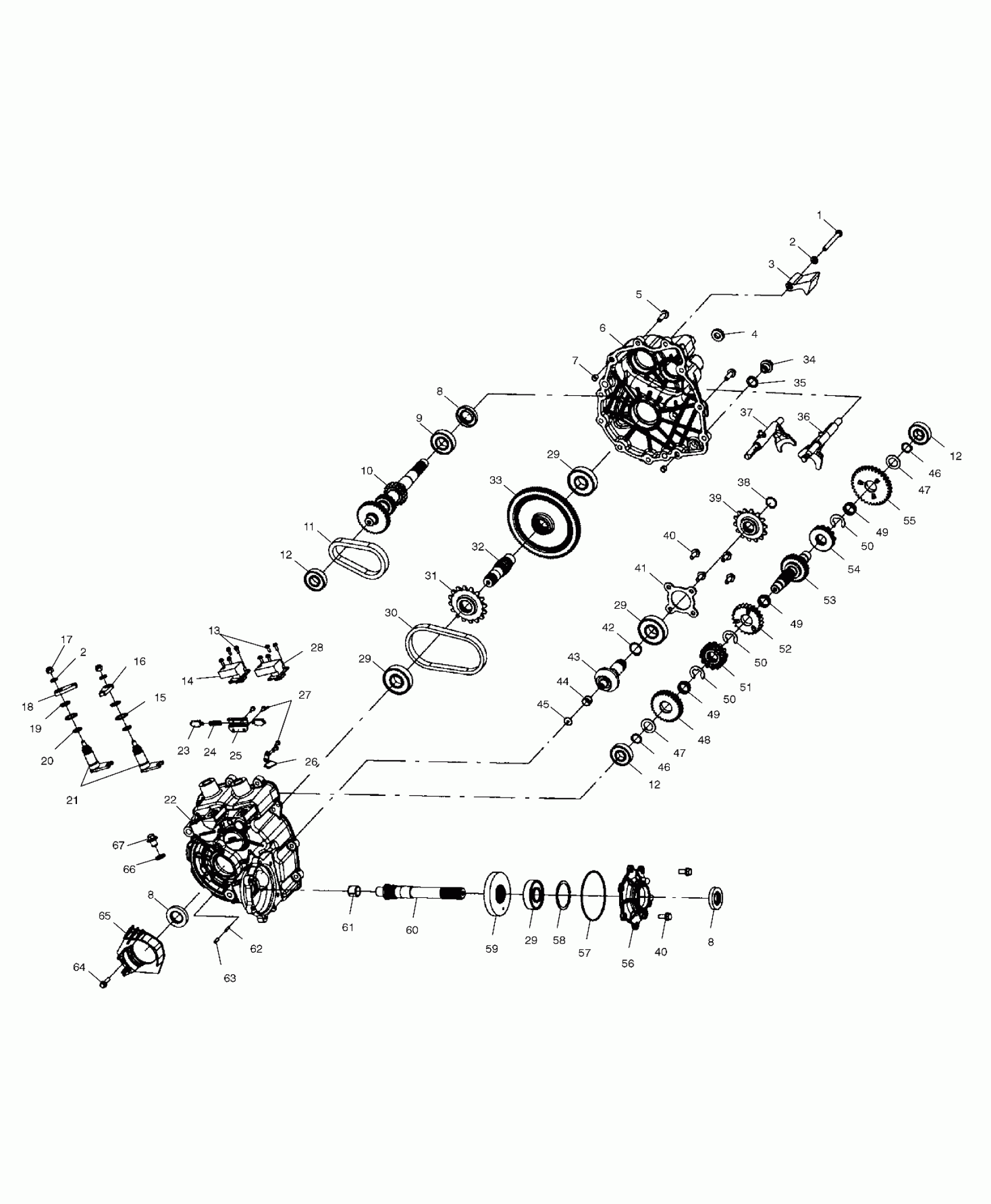

Polaris XPLORER 400 - A02CG38CA GEARCASE - A02CG38CA (4970247024C07) Diagram

#

Description
Price

-

Asm., Gearcase [Incl. All]

1341379

Unavailable

1

Screw

3233525

$1.59

2

Washer

3233054

$6.46

2

Washer

3233054

$6.46

3

Dampener, Carb Vibration

3233526

Unavailable

4

Bushing, Pivot

3233527

$39.99

5

Screw

3233252

$5.69

6

Gearcase, HLR, Hybrid Mach, LH

3233632

$354.99

7

Pipe, Knock

3233529

$10.99

8

Seal, Triple Lip

3233788

$32.37

8

Seal, Triple Lip

3233788

$32.37

8

Seal, Triple Lip

3233788

$32.37

9

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

10

Shaft, Input, HLR

3233704

Unavailable

11

Chain, Silent

3233036

Unavailable

12

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

12

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

12

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

13

Screw, Tapping

3233749

$5.65

14

Switch, 2 Position

3233617

Unavailable

15

Washer

3233040

$9.52

16

Bellcrank, HLR

3233153

$32.37

17

Nut, FLEXLOC

3233055

$3.32

18

Bellcrank

3233547

$56.99

19

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

20

O-Ring

3233548

$33.24

21

Shaft, Shift, H/R

3233549

Unavailable

22

Gearcase, RH

3233895

Unavailable

23

Pin, Interlock

3233308

Unavailable

24

Spring, Shifting, Interlock

3233032

$13.75

25

Bracket, Interlock

3233309

$20.48

26

Deflector, Oil

3233043

$13.10

27

Screw, Tapping

3233747

Unavailable

28

Switch, 3 Position

3233635

$174.99

29

BEARING

3233020

$47.62

29

BEARING

3233020

$47.62

29

BEARING

3233020

$47.62

29

BEARING

3233020

$47.62

30

Chain, Roller

3233546

$68.79

31

Sprocket, 16T

3233545

$55.56

32

Shaft, Output

3233544

$174.99

33

Gear, 98T

3233558

$211.90

34

Plug, Drain

3233448

$23.81

35

Washer

3233035

Unavailable

36

Fork, Shift, H/R

3233633

$141.65

37

Fork, Shift, Low

3233706

$119.05

38

Ring, Retaining

3233537

$6.99

39

Sprocket, 14T

3233538

Unavailable

40

Screw

3233539

Unavailable

40

Screw

3233539

Unavailable

41

Cover, Bearing

3233263

Unavailable

42

RING, RETAINING

3233306

$4.76

43

Shaft, Pinion

3233540

$158.73

44

Bushing, Garlock

3233541

$23.81

45

Washer, Thrust

3233542

$11.32

46

Ring, Retaining

3233177

$6.46

46

Ring, Retaining

3233177

$6.46

47

WASHER, THRUST

3233176

$9.52

47

WASHER, THRUST

3233176

$9.52

48

Gear, 30T

3233722

Unavailable

49

BEARING, NEEDLE

3233718

$35.71

49

BEARING, NEEDLE

3233718

$35.71

49

BEARING, NEEDLE

3233718

$35.71

50

Ring, Retaining, E-Clip

3233720

$9.52

51

Dog, Engagement

3233721

Unavailable

52

Sprocket, 24T

3233719

$109.27

53

Shaft, Reverse, 31T

3233736

Unavailable

54

Dog, Engagement, Low

3233732

$178.08

55

Gear, 33T

3233731

Unavailable

56

Cover, Snorkel Drive

3233556

$31.11

57

O-Ring

3233555

$6.06

58

SHIM

3233554

$39.99

59

Gear, 25T

3233898

$229.37

60

Shaft, Snorkel

3233899

$133.56

60

Shaft, Snorkel

3233899

$133.56

60

Shaft, Snorkel

3233899

$133.56

61

BUSHING-GARLOCK

3233552

$23.81

62

Vent, Tube

3233037

Unavailable

63

Plug, Vent Cap

3233286

$2.62

64

Screw

3233026

$6.46

65

Guide, Chain

3233897

$59.99

66

Washer

3233324

$8.54

67

Plug, Oil Fill

3233711

Unavailable
