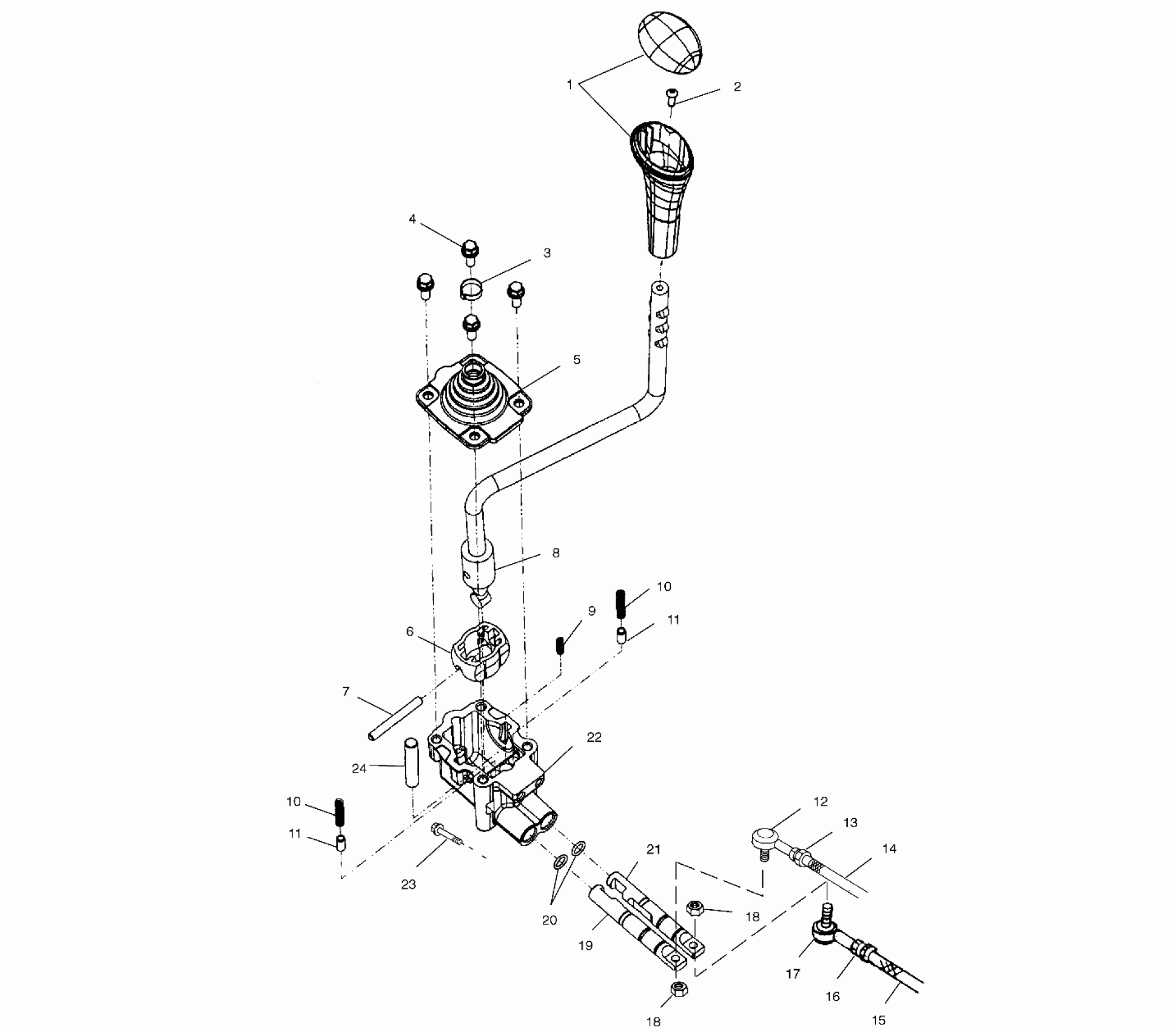

Polaris XPLORER 400 - A02CG38CA GEAR SELECTOR - A02CG38CA (4970247024C10) Diagram

#

Description
Price

-

Asm., Gear Selector [Incl. 1-11,19-22,24]

1341289

Unavailable

1

Asm., Knob

3233195

$49.99

2

SCREW

7512024

$4.79

3

Strap, Wire

3233131

$9.70

4

Screw

3233649

Unavailable

5

Cover, Gear Selector Boot

3233648

$31.99

6

Sphere, Plastic

3233646

$14.07

7

Pin, Groove

3233645

$9.99

8

Rod, Gear Selector

3233647

Unavailable

9

Spring, Centering

3233643

$52.79

10

Spring, Detent

3233642

$16.99

10

Spring, Detent

3233642

$16.99

11

Bullet, Detent

3233060

$64.99

11

Bullet, Detent

3233060

$64.99

12

Rod End, 6mm, LH

7061013

$65.99

13

Nut, LH

7546702

$1.49

14

Rod, Shift Linkage, Low

5020743

Unavailable

15

Rod, Shift Linkage, Hi Range

5132042

Unavailable

16

Nut, RH

7546701

$3.99

17

Rod End, 6mm, RH

7061014

$65.99

18

Nut, FLEXLOC

7546707

Unavailable

18

Nut, FLEXLOC

7546707

Unavailable

19

Slide, Low

3233639

Unavailable

20

O-RING

3233076

$6.39

21

Slide, High/Reverse

3233640

Unavailable

22

Body, Gear Selector

3233641

$99.99

23

SCREW

7512232

$1.49

24

Pin, Dowel

3233644

$7.99
