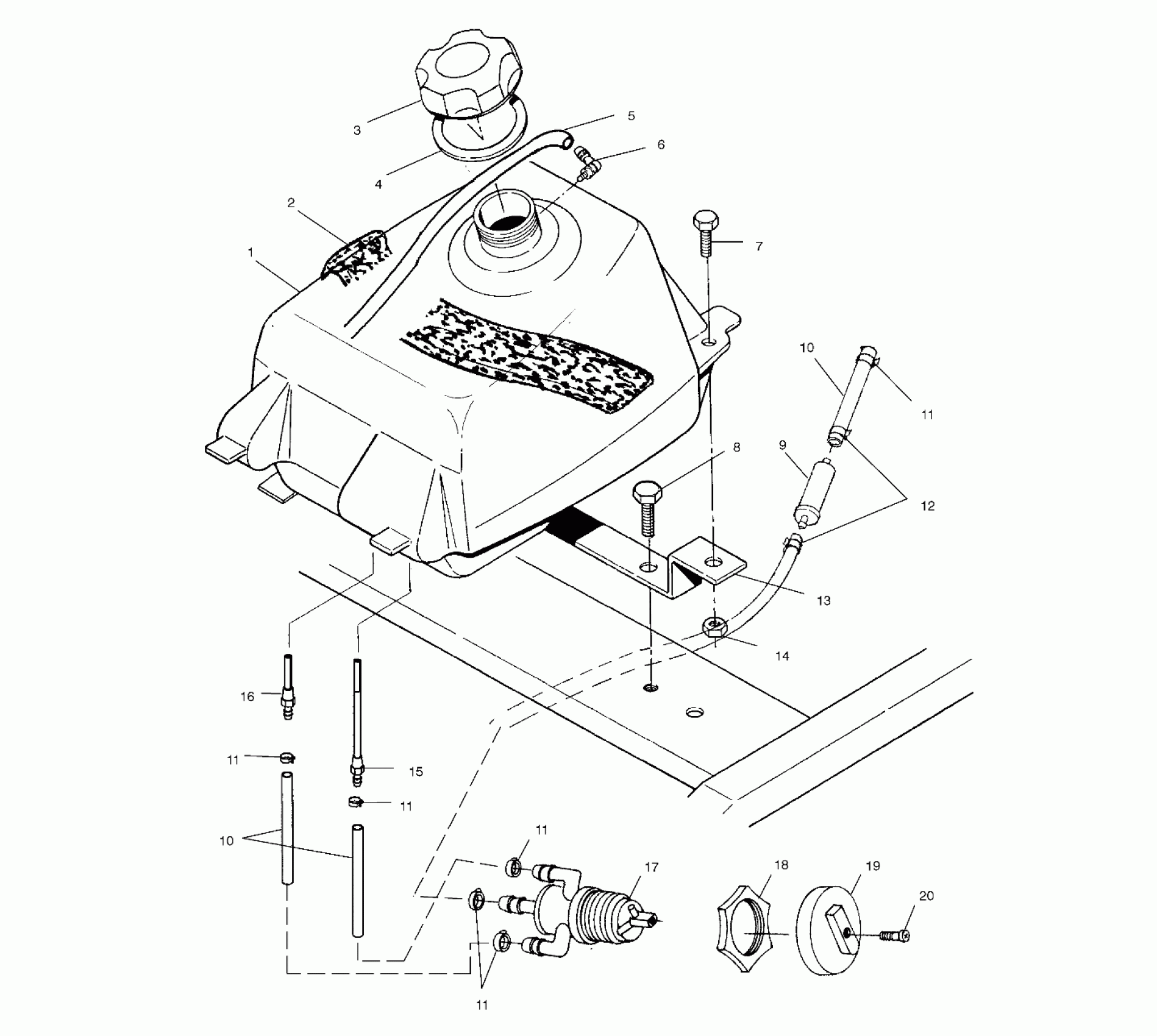

Polaris XPLORER 400 - A02CG38CA FUEL TANK - A02CG38CA (4970247024A12) Diagram

#

Description
Price

1

Tank, Fuel [Incl. 6,16,17]

2520183

Unavailable

2

Foam, Seal

5811052

Unavailable

3

Cap, Gas Tank

5433687

$20.22

4

GASKET

5812123

$5.65

5

Hose, Vent

8360009-600

Unavailable

6

Vent, Tank

5431053

$19.99

7

Bolt

7512310

$2.39

8

Screw

7512208

$3.99

9

Filter, Fuel

2530008

$4.84

10

Line, Fuel

8450040-600

Unavailable

10

Line, Fuel

8450040-600

Unavailable

11

HOSE CLAMP, RED

7080003

$1.49

11

HOSE CLAMP, RED

7080003

$1.49

11

HOSE CLAMP, RED

7080003

$1.49

11

HOSE CLAMP, RED

7080003

$1.49

11

HOSE CLAMP, RED

7080003

$1.49

12

Clamp, Hose

7080534

$1.59

13

Bracket, Tank Mount, Rear

5220916-067

Unavailable

14

NUT-5/16-18 NYLOK-Y

7542324

$1.49

15

Fitting, Fuel Outlet, Main

7052146

$27.99

16

Fitting, Fuel Outlet, Reserve

7052149

$23.99

17

Valve, 3-Way

7052154

$39.99

18

Nut, Fuel Valve

5432733

Unavailable

19

Knob, Fuel Valve

5432559

$10.39

20

Screw

7517505

$1.59
