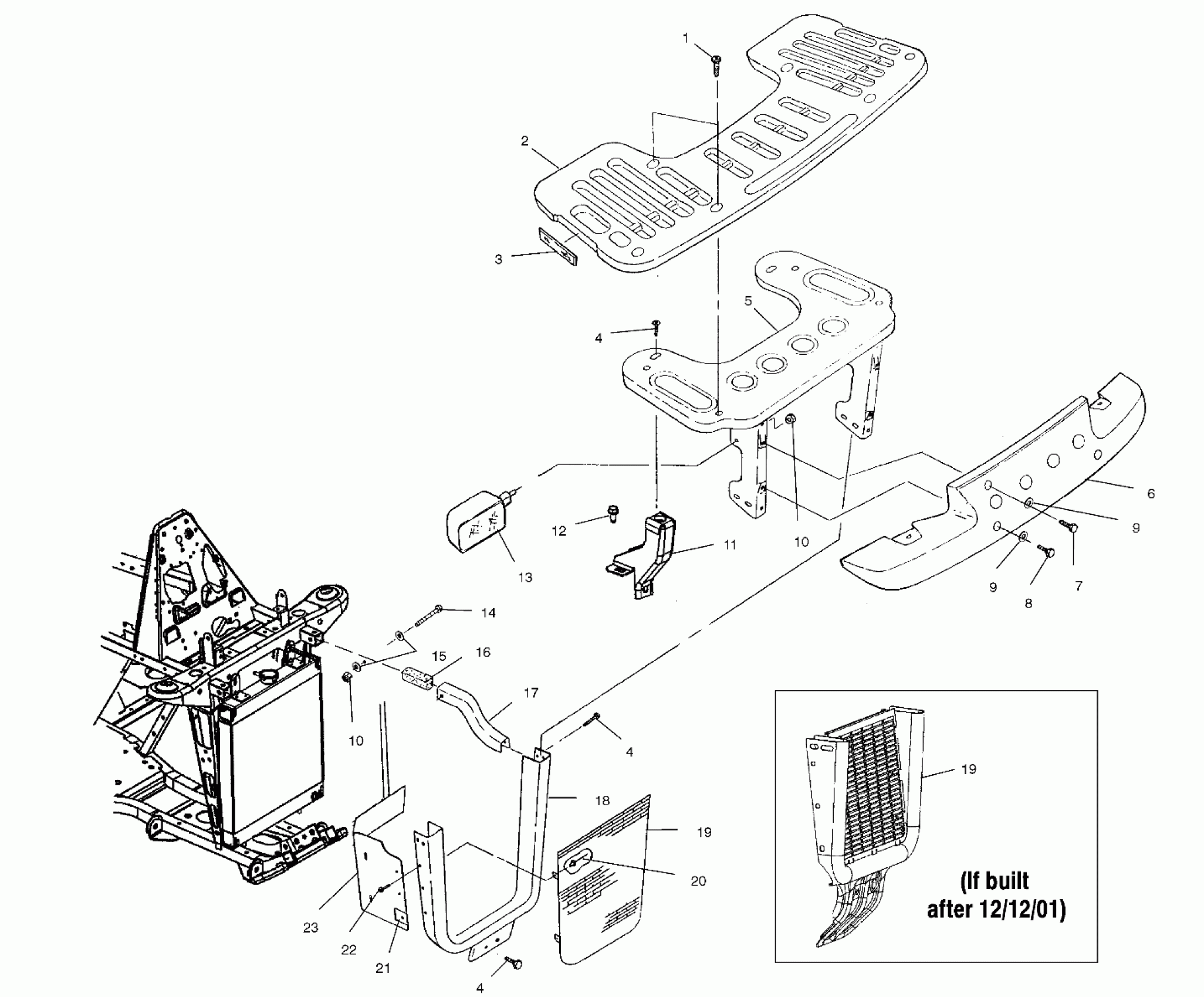

Polaris XPLORER 400 - A02CG38CA FRONT RACK and BUMPER MOUNTING - A02CG38CA (4970247024A07) Diagram

#

Description
Price

1

SCREW

7517685

$1.59

2

Rack, Front [Incl. Ref. 3 and Decal]

2670180-070

Unavailable

3

Decal, Reflector, Amber

7079924

Unavailable

4

SCREW

7515399

$1.49

4

SCREW

7515399

$1.49

4

SCREW

7515399

$1.49

5

Kit, Front Rack Mount

2200775

Unavailable

6

Bumper

5432155-070

$143.99

7

Screw

7515391

$4.79

8

Screw

7515390

Unavailable

9

WASHER

7555954

$4.79

9

WASHER

7555954

$4.79

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

Support, Front Rack, LH

1013744-067

$119.99

11

Support, Front Rack, RH

1013746-067

$94.99

12

SCREW

7512232

$1.49

13

Bulb, Headlamp

4030061

Unavailable

13

Headlight, LH

2431011

Unavailable

13

Headlight, RH

2431012

Unavailable

14

Bolt

7512329

$3.99

15

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

16

PLUG, FRAME

5810467

Unavailable

17

Extension, Frame, LH

5244729-067

$164.99

17

Extension, Frame, RH

5244730-067

$144.99

18

Guard, Brush

5244731-067

Unavailable

19

Grill, Brush Guard (If built after 12/12/01)

1013772-067

Unavailable

19

Grill, Brush Guard (If built before 12/12/01)

5240591-067

$62.99

19

Grill, Brush Guard (If built after 12/12/01)

1013772-067

Unavailable

19

Grill, Brush Guard (If built before 12/12/01)

5240591-067

$62.99

20

RIVET

7621330

$1.49

21

Nut, U-Type

7670094

$5.59

22

Screw

7512097

$3.99

23

Shield, Radiator Side, LH

5433923

$31.99

23

Shield, Radiator Side, RH

5433924

$31.99
