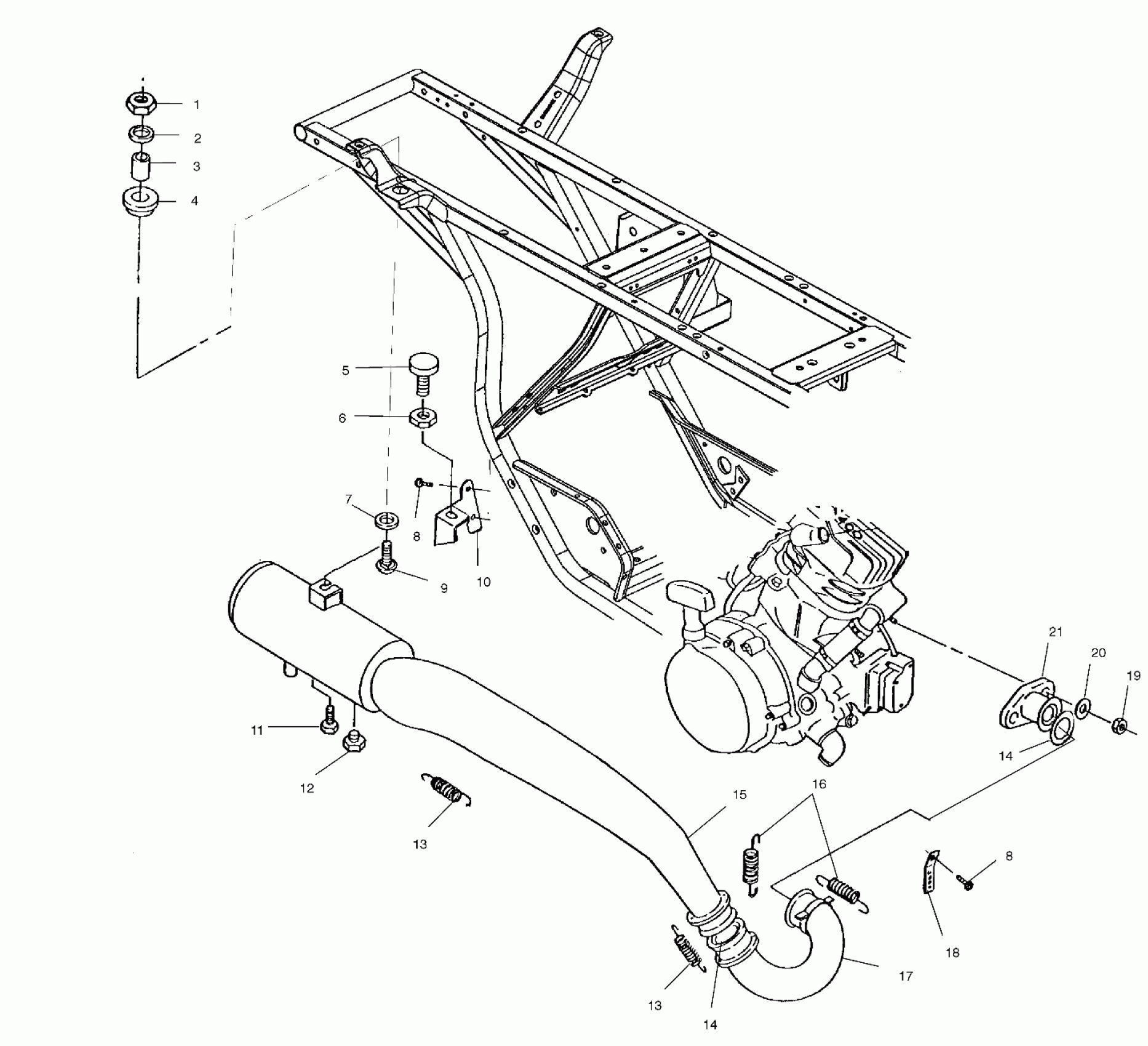

Polaris XPLORER 400 - A02CG38CA EXHAUST SYSTEM - A02CG38CA (4970247024A11) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

2

WASHER, FLAT

7555716

$1.59

3

BUSHING

5010192

$6.39

4

Dampener, Vibration

5410241

Unavailable

5

Mount, Torque Stop

3110064

Unavailable

6

NUT

7542301

$1.59

7

WASHER, RUBBER

5410436

$1.59

8

SCREW

7517386

$1.49

8

SCREW

7517386

$1.49

9

BOLT, CARRIAGE

7515316

$2.39

10

NUTSERT

7547101

$9.59

10

Bracket, Exhaust Mount

5243199-067

Unavailable

11

BOLT

7512666

$2.39

12

Plug, Clean Out

7052083

$15.87

13

Spring, Exhaust

7042031

$5.65

13

Spring, Exhaust

7042031

$5.65

14

Gasket, Exhaust

5211688

$36.41

14

Gasket, Exhaust

5211688

$36.41

15

Exhaust

1260906-029

Unavailable

16

Spring, Exhaust

7042029

$4.84

17

Headpipe

1260901-029

$87.99

18

Tab, Spring

5222665

Unavailable

19

NUT [See Crankcase and Cylinder Pg. C12, Ref. 9]

-------

Unavailable

20

WASHER, LOCK [See Crankcase and Cylinder Pg. C12, Ref. 10]

-------

Unavailable

21

Manifold

1260902-029

Unavailable
