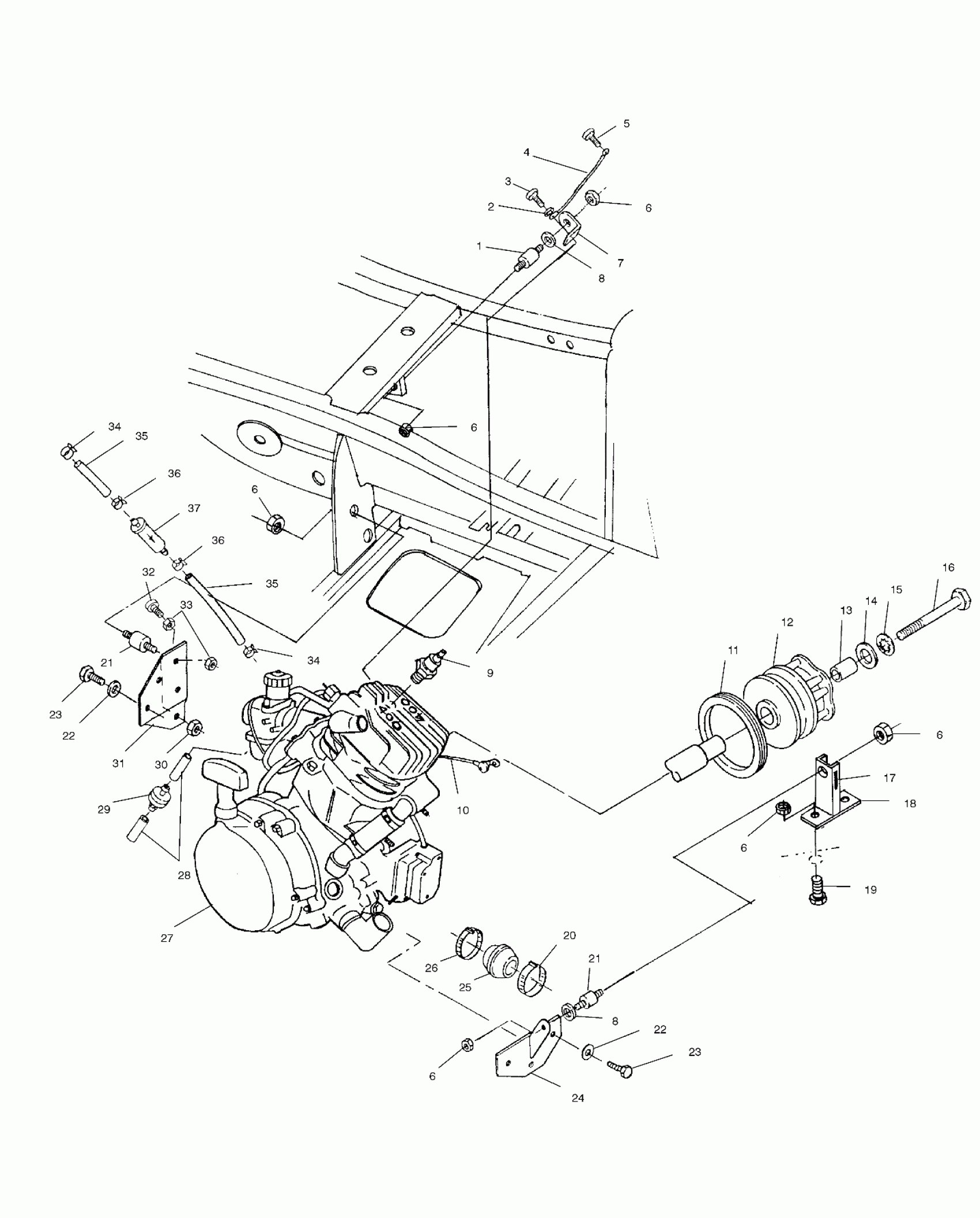

Polaris XPLORER 400 - A02CG38CA ENGINE MOUNTING - A02CG38CA (4970247024A09) Diagram

#

Description
Price

1

Mount, Rubber Engine

3110038

Unavailable

2

WASHER, SPRING LOCK

7552901

$1.49

3

Screw

7512315

$4.79

4

Cable, Ground, Engine

4010132

Unavailable

5

SCREW

7517386

$1.49

6

NUT, FLANGE LOCK

7547108

$4.79

6

NUT, FLANGE LOCK

7547108

$4.79

6

NUT, FLANGE LOCK

7547108

$4.79

6

NUT, FLANGE LOCK

7547108

$4.79

6

NUT, FLANGE LOCK

7547108

$4.79

6

NUT, FLANGE LOCK

7547108

$4.79

7

Bracket, Engine Mount, Top

5242692-067

Unavailable

8

WASHER, FLAT

7555823

$3.99

8

WASHER, FLAT

7555823

$3.99

9

Spark Plug, NGK BR8ES

3070156

$3.99

10

Cable, Solenoid/Starter

4010218

$47.99

11

SEAL, COVER CASE [See Clutch Cover Pg. C5, Ref. 1]

-------

Unavailable

12

ASM., DRIVE CLUTCH, BASIC ATV-06 [See Drive Clutch Pg. C3, Ref. 14]

-------

Unavailable

13

BUSHING-.437 X.770 X.50

5430261

$7.19

14

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

15

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

16

Screw

7512566

$30.79

17

Trim, Edge

8360012-04

Unavailable

18

Mount, Engine, Front

1040687-067

$15.56

19

Screw

7517289

$4.79

20

Clamp, Narrow Band

7080511

$4.79

21

Mount, Rubber Engine

3110042

Unavailable

21

Mount, Rubber Engine

3110042

Unavailable

22

Washer, Spring Lock

7552603

$1.49

22

Washer, Spring Lock

7552603

$1.49

23

Screw

7512490

$3.99

23

Screw

7512490

$3.99

24

Mount, Engine, Front

1040231-067

Unavailable

25

Boot, Clutch Inlet

5411681

Unavailable

26

Clamp, Narrow Band

7080656

Unavailable

27

Engine, Short Block [EC38PLE10] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization required fo

3085821

Unavailable

28

LINE, FUEL

8360009-600

Unavailable

29

VALVE, CHECK

7051011

Unavailable

30

Nut, FLEXLOC, Thin

7542411

$3.19

31

Bracket, Engine Mount, Rear

5242463-067

$56.99

32

Mount, Torque Stop, Rubber

3110048

$7.43

33

Nut, Jam

7542432

$3.99

34

HOSE CLAMP, RED

7080003

$1.49

34

HOSE CLAMP, RED

7080003

$1.49

35

Line, Fuel

8450040-600

Unavailable

35

Line, Fuel

8450040-600

Unavailable

36

Clamp, Hose

7080534

$1.59

36

Clamp, Hose

7080534

$1.59

37

Filter, Fuel

2530008

$4.84
