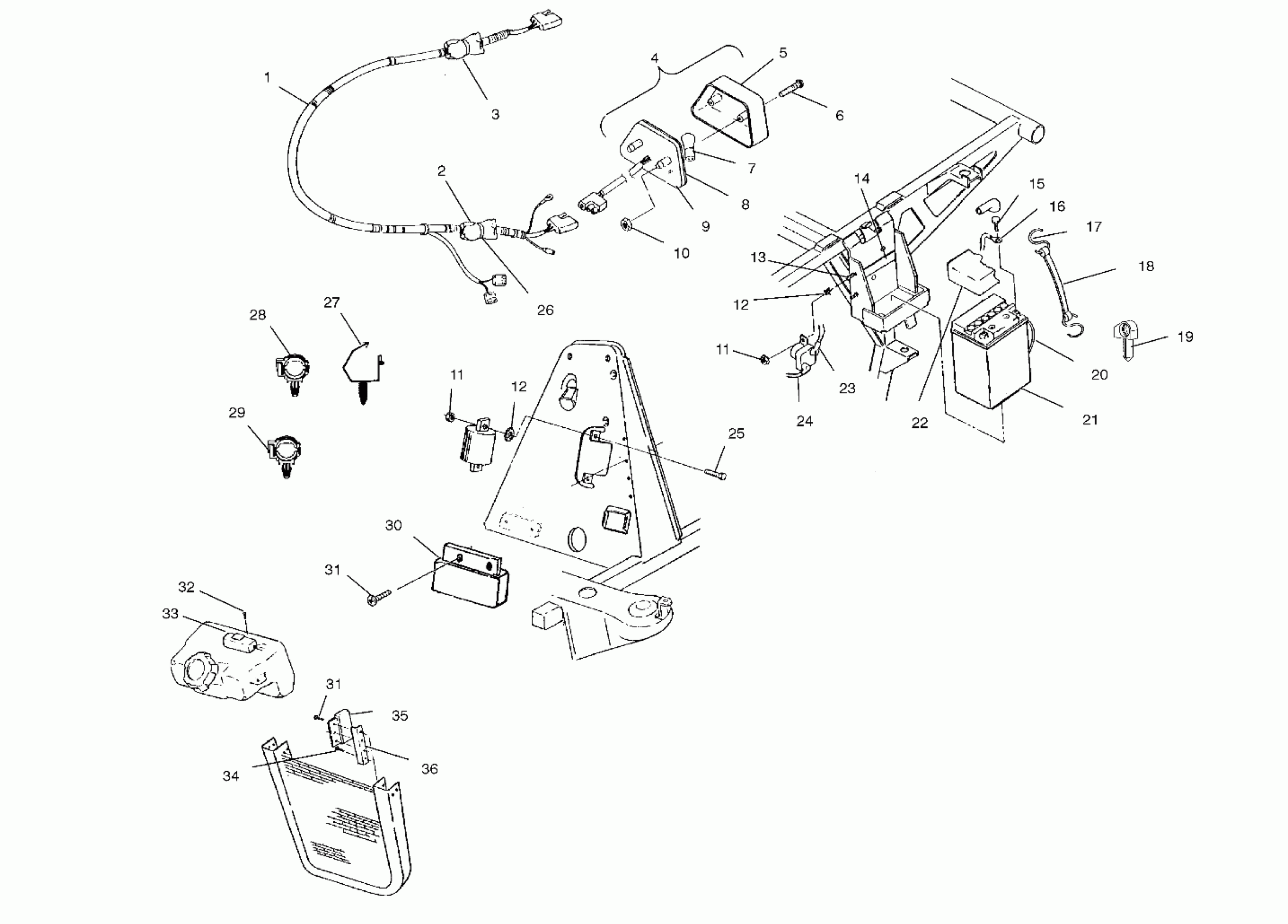

Polaris XPLORER 400 - A02CG38CA ELECTRICAL/TAILLIGHT - A02CG38CA (4970247024C06) Diagram

#

Description
Price

1

Harness, Main

2460938

Unavailable

2

Kit, Circuit Breaker, 20 AMP

2200593

$63.99

3

Kit, Circuit Breaker, Fan

2201795

$68.79

4

Asm., Taillight [Incl. 5-10]

2410320

$63.99

5

Lens, Taillight

4032046

$32.37

6

Screw

4032029

$4.79

7

Bulb, Taillight

4030043

$6.46

8

Gasket, Taillight

4032045

$4.03

9

Backing

4032064

$83.99

10

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

11

Nut, Nylok

7541925

$1.49

11

Nut, Nylok

7541925

$1.49

12

Washer

7571602

$4.79

12

Washer

7571602

$4.79

13

Screw

7512027

$1.49

14

PAD-BATTERY

5810290

$7.27

15

Kit, Battery Bolt, Short

2200361

$3.99

16

Cable, Battery/Engine

4010095

Unavailable

17

Hook, Battery Strap

7010032

$1.59

18

Strap, Battery Holddown

5410424

Unavailable

19

Clip

7670102

$2.39

20

Tube, Battery Vent

5432077

Unavailable

21

Battery

4140006

$99.99

22

Cover, Battery

5431769

$14.39

23

Cable, Battery/Solenoid

4010094

Unavailable

24

CABLE, SOLENOID/STARTER [See Engine Mounting Pg. A10, Ref. 10]

-------

Unavailable

25

BOLT

7512007

$3.99

26

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

27

CLIP, ROUTING

7670109

$2.39

28

Clip, Rosebud

4020149

$6.39

29

CLIP, ROSEBUD

4020139

$4.79

30

Limiter, RPM

4010195

Unavailable

31

Screw

7512017

$4.79

31

Screw

7512017

$4.79

32

Screw

7511864

$4.79

33

Bracket, CDI

5241416

$5.75

34

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

35

Rectifier

4060191

Unavailable

36

Heat Sink

5131818

Unavailable
