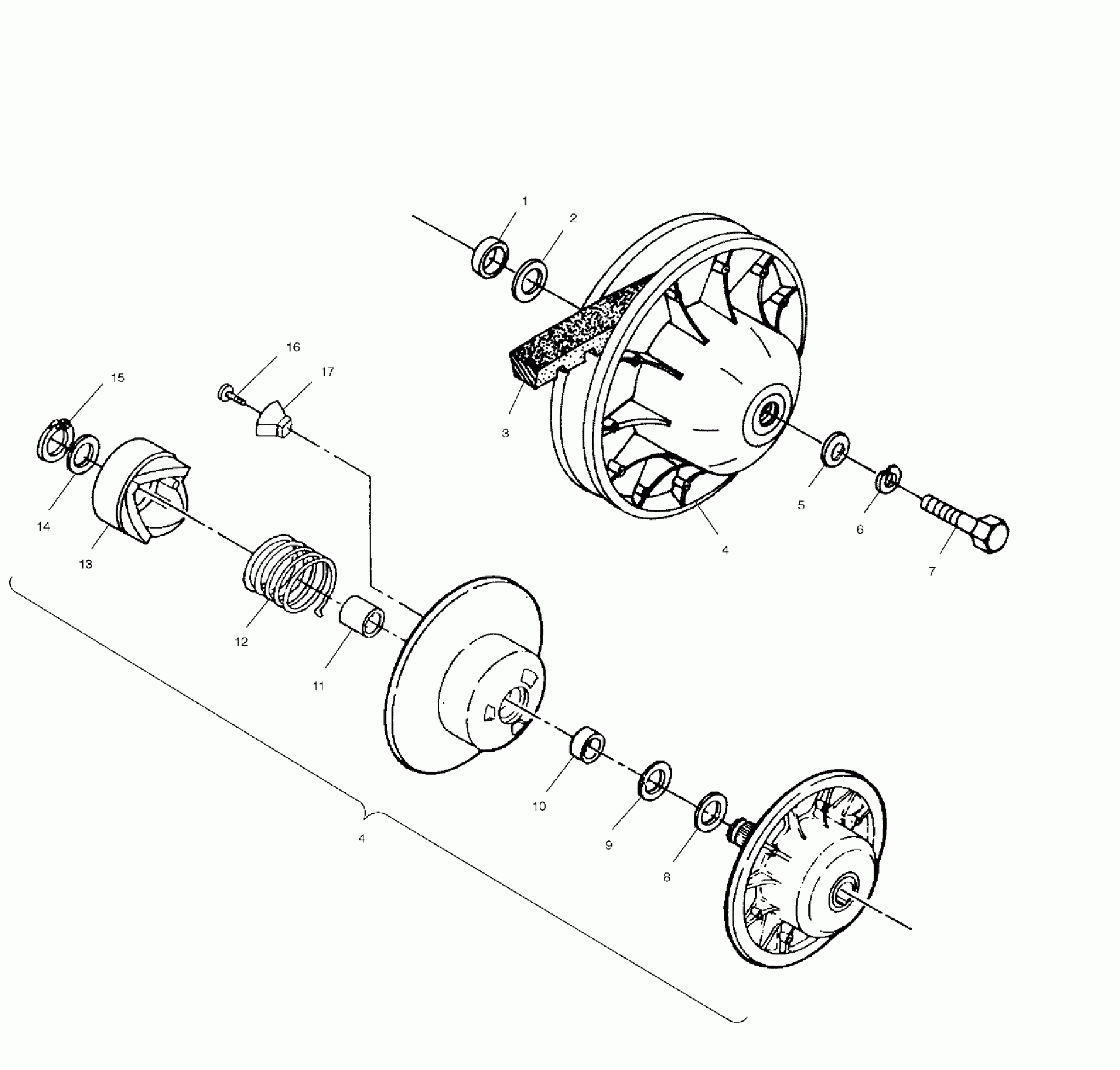

Polaris XPLORER 400 - A02CG38CA DRIVEN CLUTCH - A02CG38CA (4970247024C04) Diagram

#

Description
Price

1

Spacer, Driven Clutch

5010266

Unavailable

2

BUSHING

7556120

Unavailable

3

BELT, DRIVE

3211077

$75.99

4

Asm., Driven Clutch, 3 Angle, Heavy [Incl. 8-11,14-17]

1322182

$619.99

4

Asm., Driven Clutch, 3 Angle, Heavy [Incl. 8-11,14-17]

1322182

$619.99

5

Washer, Domed

5220646

$2.38

6

WASHER, SPRING LOCK

7552901

$1.19

7

BOLT

7515382

$2.38

8

Washer [.020 ]

7555898

Unavailable

8

Washer [.025 ]

7556076

Unavailable

9

Washer [.030]

7556804

Unavailable

10

Bearing, Moveable [1/2 Inch]

3576504

$23.81

11

BUSHING-MOVEABLE, 1.0 DU [1 Inch]

3576511

$27.78

12

Spring, Clutch

7041198

$56.65

13

RAMP, STATIONARY

5132344

$80.94

14

Spacer

5210752

$1.59

15

Ring, Retaining

7710448

$3.17

16

Bolt

7511854

$1.19

17

Button, Ramp

5430766

$6.35
