CRANKCASE and CYLINDER - A02CG38CA (4970247024C11)

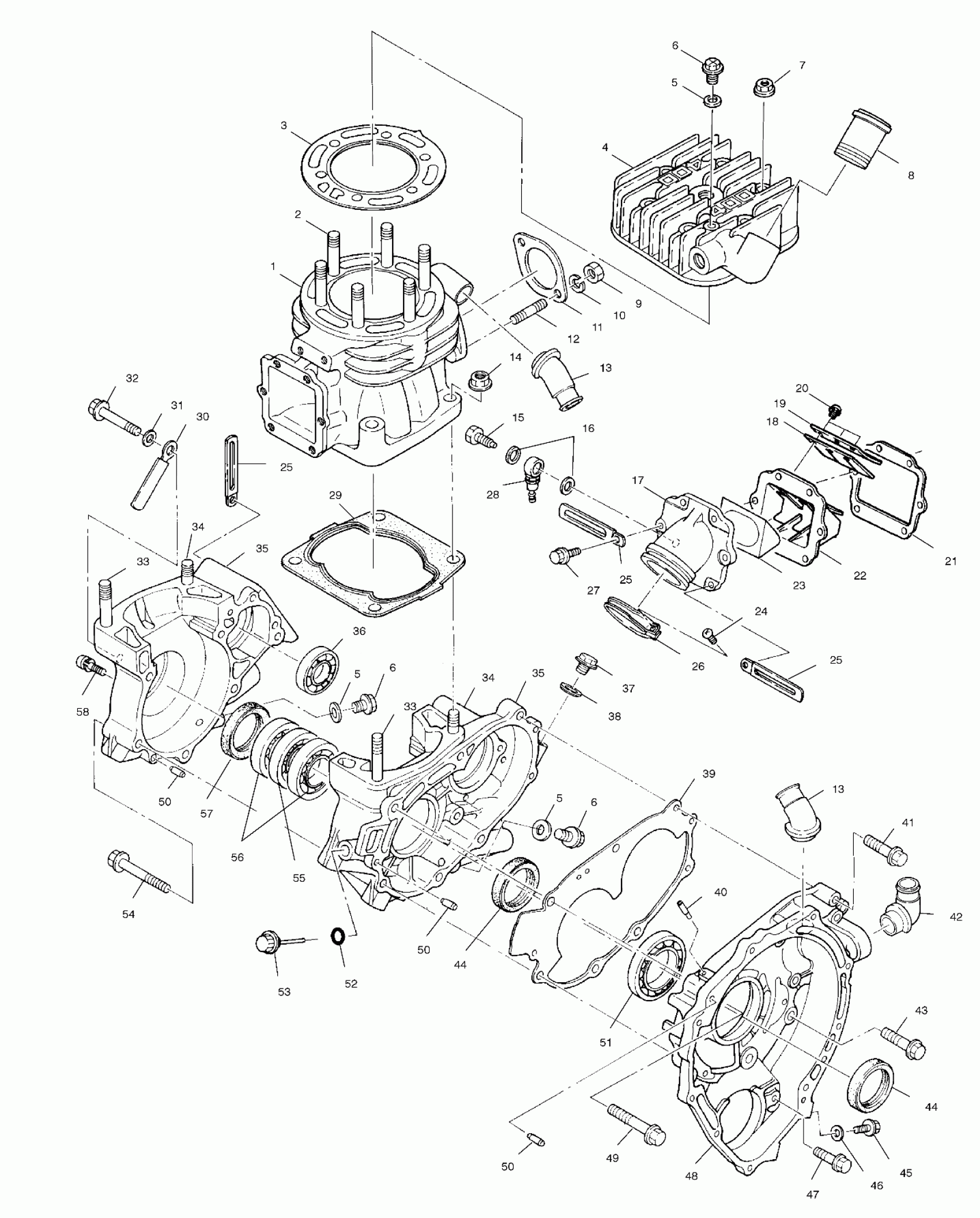

Polaris XPLORER 400 - A02CG38CA CRANKCASE and CYLINDER - A02CG38CA (4970247024C11) Diagram
#
1
Cylinder [Incl. 2,12,13]
3086753
Unavailable
2
Stud
3084138
Unavailable
3
Gasket, Head
3084731
Unavailable
4
Cylinder Head [Incl. 8]
3086755
Unavailable
8
Pipe, Water
3086756
Unavailable
9
Nut
3086787
Unavailable
11
Gasket, Exhaust
3086757
Unavailable
12
Stud
3085326
Unavailable
15
Bolt, Banjo
3086758
Unavailable
16
Gasket
3083138
Unavailable
17
Adapter
3085277
Unavailable
18
Valve
3240064
Unavailable
19
Stopper
3240065
Unavailable
20
Screw and Washer
3240066
Unavailable
21
Gasket, Reed Valve
3086760
Unavailable
22
Asm., Reed Valve [Incl. 18-20]
3084147
Unavailable
26
Asm., Band, Adapter [Incl. 24]
3084144
Unavailable
27
Bolt, Flange
3087150
Unavailable
28
Check Valve
3083894
Unavailable
30
Clamp
3083384
Unavailable
33
Stud
3084118
Unavailable
33
Stud
3084118
Unavailable
35
Asm., Crankcase [Incl. 5,6,32-36,44,47,50,54-57]
3086740
Unavailable
35
Asm., Crankcase [Incl. 5,6,32-36,44,47,50,54-57]
3086740
Unavailable
36
Bearing, Ball
3084123
Unavailable
37
PLUG
3086749
Unavailable
40
Pipe, Breather
3084128
Unavailable
42
Pipe 2, Elbow
3086747
Unavailable
43
Bolt, Flange
3086752
Unavailable
44
Seal, Oil
3084120
Unavailable
44
Seal, Oil
3084120
Unavailable
45
Plug
3086750
Unavailable
47
Bolt, Flange
3086743
Unavailable
49
Bolt, Flange
3084134
Unavailable
50
Pin, Dowel
3086741
Unavailable
50
Pin, Dowel
3086741
Unavailable
50
Pin, Dowel
3086741
Unavailable
51
Bearing, Ball
3084131
Unavailable
52
O-Ring
3084733
Unavailable
53
Gauge, Oil
3086761
Unavailable
54
Bolt, Flange
3086742
Unavailable
57
Seal, Oil
3084725
Unavailable
