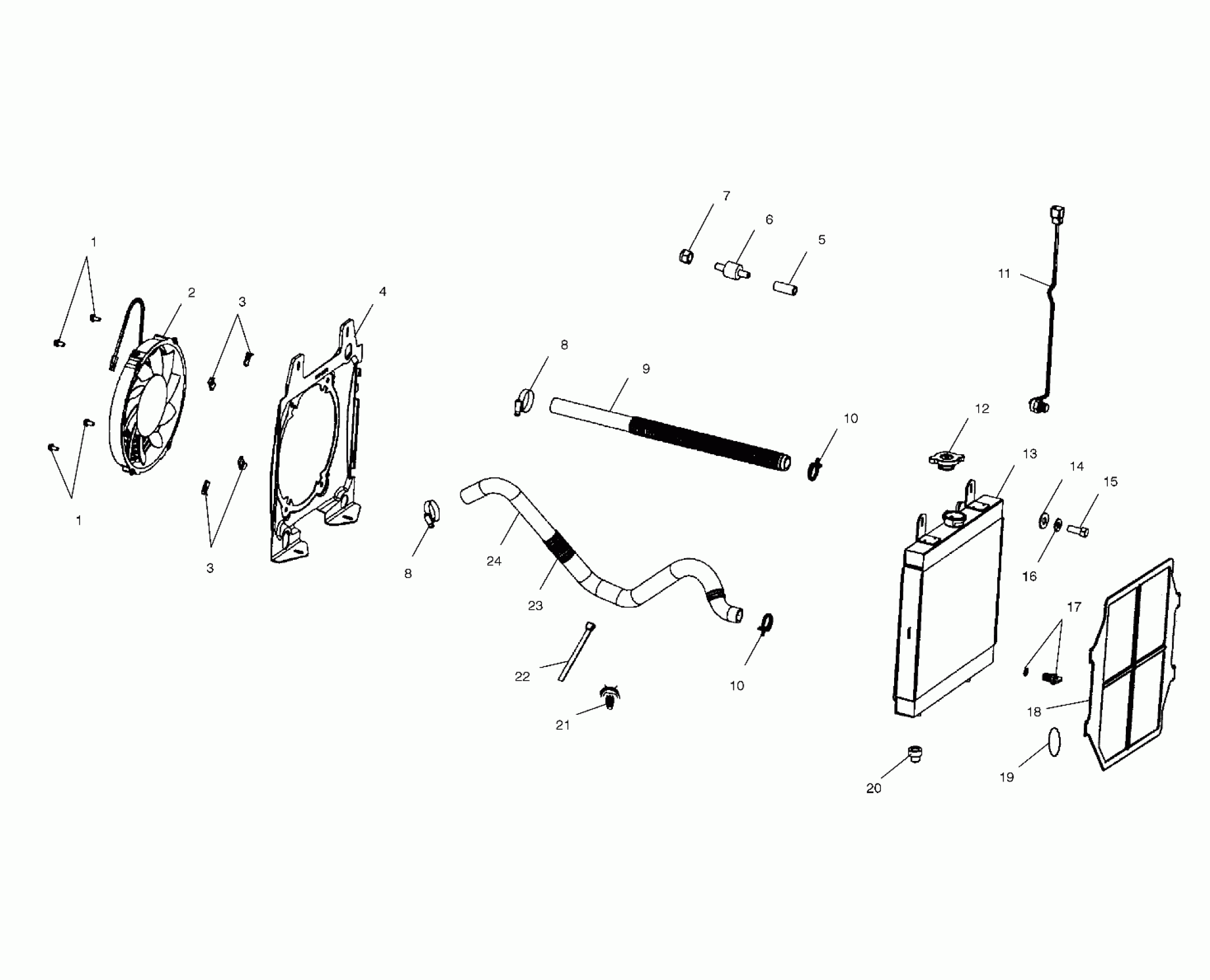

Polaris XPLORER 400 - A02CG38CA COOLING SYSTEM - A02CG38CA (4970247024A08) Diagram

#

Description
Price

1

Screw

7517656

Unavailable

1

Screw

7517656

Unavailable

2

Asm., Fan and Motor

2410123

$214.69

3

U-Clip

7670111

Unavailable

3

U-Clip

7670111

Unavailable

4

Shroud

5434043

$73.81

5

Spacer, Radiator Mount

5020572

$8.73

6

Mount, Rubber

3110032

Unavailable

7

Nutsert

7547069

$3.97

8

CLAMP, HOSE

7080614

$7.14

8

CLAMP, HOSE

7080614

$7.14

9

Hose, Engine, Upper

5411986

Unavailable

10

Clamp

7080826

$4.76

10

Clamp

7080826

$4.76

11

Sensor, Thermal w/Harness

4010161

$128.24

12

Cap, Pressure

1240093

Unavailable

13

Radiator

1240090

Unavailable

14

Washer, Flat

7558301

$1.19

15

Screw

7512240

$3.97

16

WASHER, SPRING LOCK

7552801

$1.59

17

Valve, Drain

7052296

Unavailable

18

Cover, Radiator w/Mesh

5433317

$35.08

19

O-Ring

5410607

Unavailable

20

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

21

MOUNT, CABLE TIE

7080965

$7.27

22

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

23

Guard, Plastic Hose

5521550

$10.51

24

Hose, Engine, Lower

5411989

Unavailable
