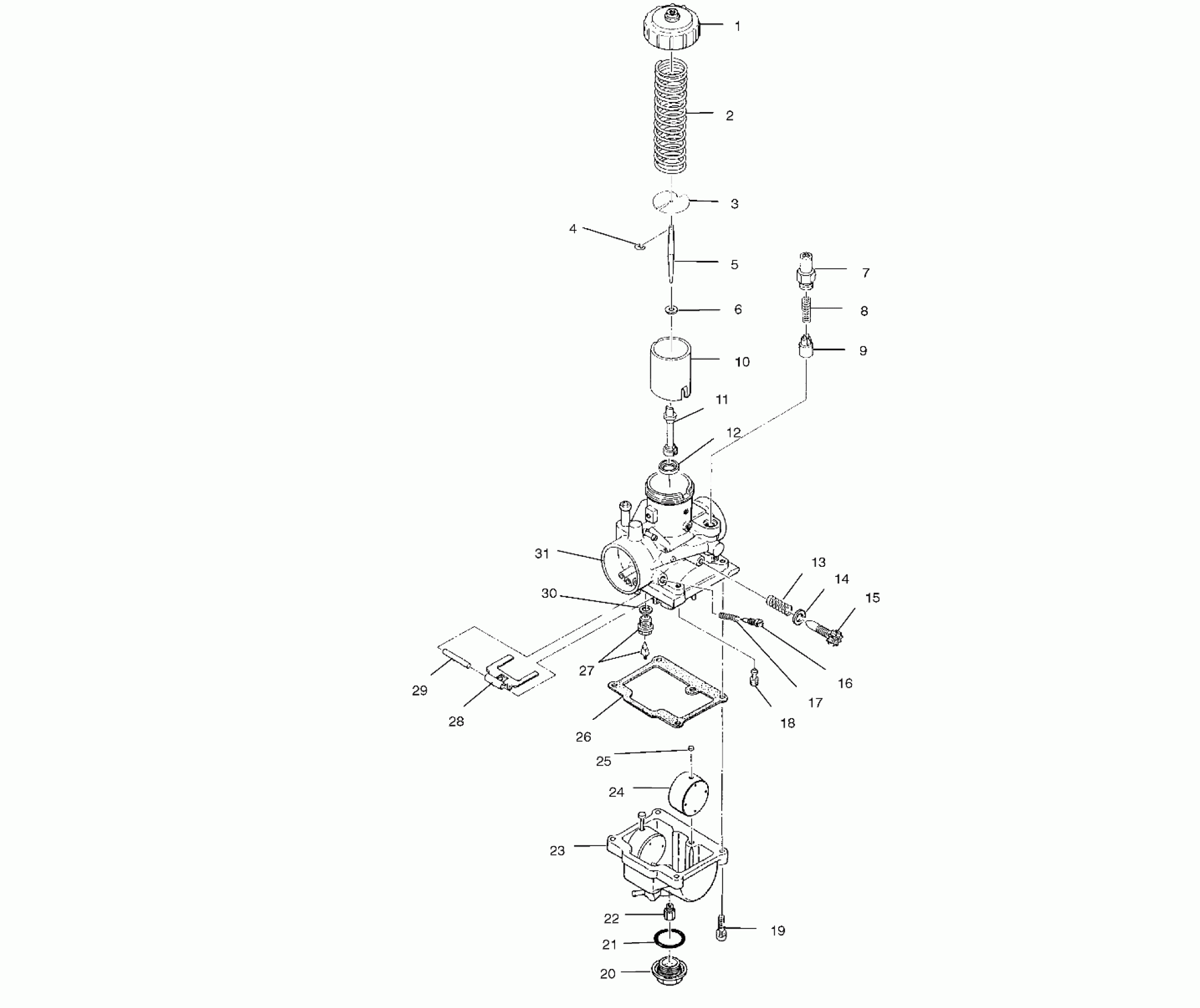

Polaris XPLORER 400 - A02CG38CA CARBURETOR - A02CG38CA (4970247024D02) Diagram

#

Description
Price

1

Asm., Top

3130184

$32.37

2

Spring, Throttle

3130496

$28.32

3

Plate, Throttle

3130027

$9.70

4

E-Ring

3130003

Unavailable

5

Needle, Jet [J8-DEY12]

3131298

Unavailable

6

Packing

3130355

$7.19

7

Cap, Plunger

3130199

$28.32

8

Spring

3130006

$8.89

9

Plunger

3130328

$32.37

10

Valve, Throttle [1.5]

3130494

Unavailable

11

Asm., Jet, Needle [480]

3130429

Unavailable

12

Ring, Main Jet

3130596

Unavailable

13

Spring, Throttle Adjuster

3130436

Unavailable

14

Washer

3130447

Unavailable

15

Screw, Throttle Stop

3130009

$19.99

16

Adjuster

3130011

$19.99

17

Spring, Air Adjuster

3130012

$8.89

18

Jet, Pilot [#35]

3130066

$8.89

19

Screw

3130025

$3.19

20

Screw, Guide

3130432

$27.99

21

O-RING

3130239

Unavailable

22

Jet, Main [#200]

3130123

$7.27

23

Float Chamber

3130443

Unavailable

24

Float

3130430

$43.56

25

Cap

3130237

$4.03

26

Gasket

3130020

$16.17

27

Valve, Needle [2.5]

3131385

$67.99

28

Arm, Float

3130018

$24.27

29

PIN, FLOAT

3130361

$8.89

30

Packing

3130047

$4.84

31

Asm., Carburetor [Incl. 1-31]

3131384

Unavailable
