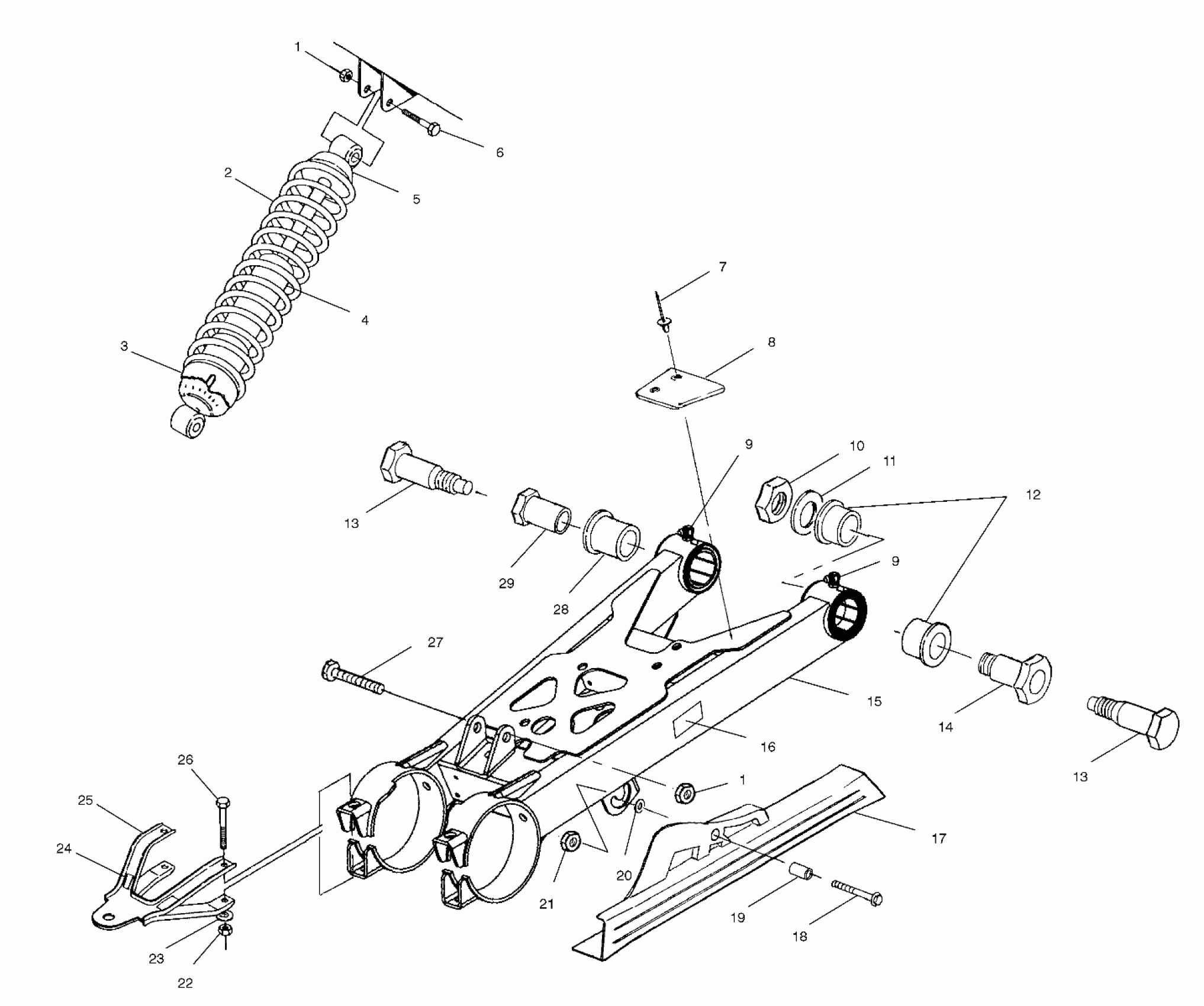

Polaris XPLORER 400 - A01CG38CA SWING ARM/SHOCK MOUNTING - A01CG38CA (4963916391B011) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542439

$1.19

1

NUT-LOCK(10)

7542439

$1.19

2

SPRING,COMP,REAR

7041204-067

$64.99

3

CAM,ADJUST,SPRING

5630551

$36.41

4

SHOCK-REAR,1-3/8,ATV (If built before 3/01/01)

7041775

Unavailable

4

SHOCK-RR,CDS,HVY (If built after 3/01/01)

7041961

Unavailable

5

RETAINER,SHOCK

5241147

$10.32

6

BOLT(10)

7515415

$1.19

7

RIVET-POP,3/16(.376-.500)(50)

7661046

$3.97

8

GUIDE,CHAIN PAD

5432727

Unavailable

9

FITTING, ZERK(10)

7080510

$5.56

9

FITTING, ZERK(10)

7080510

$5.56

10

NUT,HEX,JAM

7547082

$32.37

11

WASHER,FLAT(10)

7556035

Unavailable

12

BUSHING,SWNGARM,RHHYBRID

5433412

$8.73

13

BOLT,SWINGARM PIVOT

5131697

$35.71

13

BOLT,SWINGARM PIVOT

5131697

$35.71

14

BUSHING,RH,SWINGARM PIVOT

5133167

$35.71

15

ARM ASM,SWING (Incl. 9,12,28)

1580111

Unavailable

16

DECAL-"CHAIN FREEPLAY",HYBRID

7078572

Unavailable

17

GUARD,CHAIN,R.AXLE

5432854

Unavailable

18

SCREW-FLANGED(10)

7515304

$5.56

19

Bushing

5332828

$9.70

20

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

21

NUT LOCK(10)

7542321

$1.19

22

NUT-7/16-20,NYLOK,Y

7547066

$1.59

23

WASHER(10)

7555883

$3.97

24

DECAL, HITCH Substituted by 7078261

7072533

Unavailable

25

KIT-HITCH,ATV,CHAIN DRVN (Incl. 22-26)

2873036

Unavailable

26

BOLT(10)

7512576

$7.94

27

BOLT(10)

7515438

$4.76

28

BUSHING,SWNGARM,LHHYBRID

5433411

$8.73

29

BUSHING,LH,SWINGARM PIVOT

5133166

$31.75
