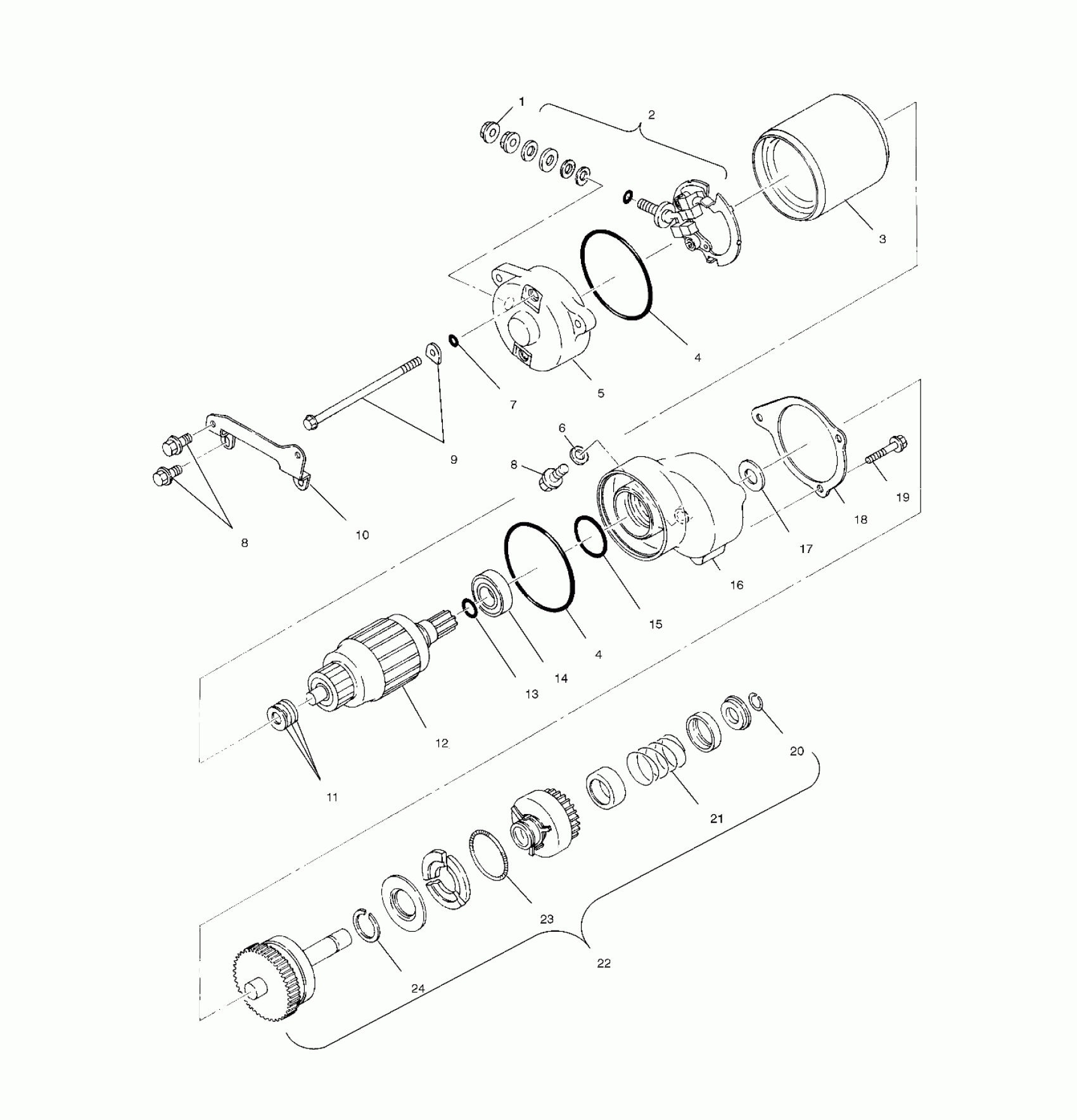

Polaris XPLORER 400 - A01CG38CA STARTING MOTOR - A01CG38CA (4963916391D005) Diagram

#

Description
Price

1

NUT, FLANGE(10)

3083649

$3.99

2

BRUSH,COMPL.2-POLE *

3084406

Unavailable

3

STARTER MOTOR ASM. * (Incl. 1-5,7,9,11-16)

3085393

Unavailable

3

ASM-STARTING MOTOR (Incl. 1-5,7,9,11-17,20-24)

3087043

Unavailable

4

RING, RUBBER

3084405

Unavailable

4

RING, RUBBER

3084405

Unavailable

5

COVER,REAR,STARTER(300-400)

3085032

$82.39

6

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

7

O-RING

3084408

Unavailable

8

BOLT,FLANGE Substituted by 3083568

3086782

Unavailable

8

BOLT,FLANGE Substituted by 3083568

3086782

Unavailable

9

Bolt, Through

3084407

Unavailable

10

Bracket

3086780

Unavailable

11

Washer Set

3083754

$2.39

12

ARMATURE ASM. * (Incl. 13,14)

3084404

$207.99

13

O RING

3083934

Unavailable

14

BALL BEARING

3083777

$31.99

15

O RING

3083741

$9.37

16

COVER, FRONT (Incl. 15)

3085305

$123.02

17

WASHER, GEARSHAFT Substituted by 7555908

3083737

Unavailable

18

GASKET,STARTER(NON-ASBESTOS)

3085283

Unavailable

19

BOLT,FLANGE

3086781

$4.79

20

CLIP

3084409

$7.19

21

SPRING, RETURN

3084410

$2.47

22

ASM-GEAR SHAFT * (Incl. 17,20-24)

3087030

Unavailable

23

SPRING, WEIGHT

3084411

$15.67

24

CLIP

3084412

$9.59
