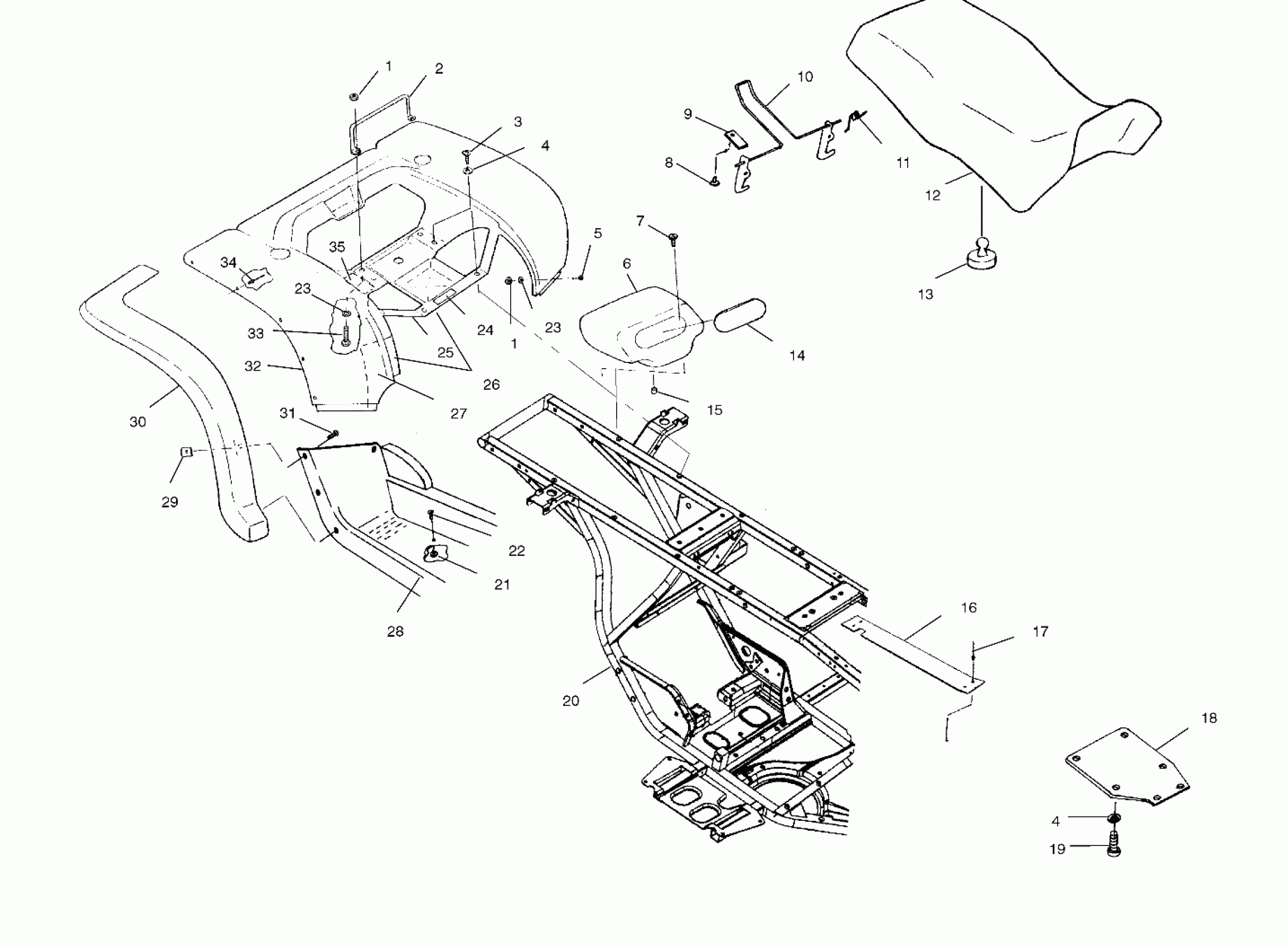

Polaris XPLORER 400 - A01CG38CA REAR CAB and SEAT - A01CG38CA (4963916391A004) Diagram

#

Description
Price

1

NUT(10)

7541925

$0.79

1

NUT(10)

7541925

$0.79

2

RETAINER,SEAT LATCH

5224592

Unavailable

3

SCREW(10)

7512242

$2.38

4

WASHER, FLAT(10)

7555859

$1.19

4

WASHER, FLAT(10)

7555859

$1.19

5

SCREW(10) Substituted by 7511989

7512085

Unavailable

6

BOX-TOOL,XPL 400

5434040

$32.70

7

SCREW Substituted by 7555748

7517375

$1.19

8

BLIND RIVET(50)

7621403

$1.19

9

BRACKET,LEVER RETAINER

5211033

$34.99

10

LATCH,SEAT

1040387

$48.56

11

SPRING, LATCH

7041370

$9.52

12

FOIL,SEATBASE,LG.

5811104

Unavailable

12

FOIL,SEATBASE,SM.

5811105

$9.84

12

SEAT,SABLE BROWN (Incl. 8-13)

2682441-276

$445.22

12

COVERING-SEAT,SABLE BROWN

2681747-276

$149.75

13

BUMPER-RUBBER

5412067

$3.97

14

COVER, TOOLBOX

5431787

Unavailable

15

CAP,DRAIN

5410896

$5.65

16

GUARD-CLUTCH, BLK

5241403-067

$5.71

17

RIVET,INTERLOCK,B(50)

7661638

$1.19

18

GUARD,ROCK

5432763

$109.99

19

SCREW(10)

7515179

$2.38

20

FRAME,MAIN,XPL 400,BLK

1013312-067

$820.65

21

NUT-LOCK(10)

7542122

$1.19

22

SCREW Substituted by 7512279

7517376

$0.79

23

WASHER(10)

7555792

$4.76

23

WASHER(10)

7555792

$4.76

24

DECAL-2 STRK,CARB/FILTER INFO

7079901

Unavailable

25

FOIL-FOAM,(6X1)

5811087

Unavailable

26

FOIL,FR,REAR CAB

5811106

Unavailable

27

FOIL FOAM

5811111

Unavailable

28

FOOTWELL,LH,NY,BLK.

5432056-070

$230.70

28

FOOTWELL-HYBRID,RH,NY,BLK(SVC)

5433196-070

$230.70

29

NUT, SPEED(10)

7670057

$1.19

30

GUARD-MUD,REAR,LH,BLK

5431796-070

Unavailable

30

GUARD-MUD,REAR,RH,BLK

5431797-070

Unavailable

31

BOLT(10)

7512232

$1.19

32

CAB,REAR,GEN 4,EB.GRN.

5432117-195

Unavailable

33

SCREW(10)

7511930

$2.38

34

RIVET(50)

7661645

Unavailable

35

FOIL,REAR CAB,REAR

5811107

Unavailable
