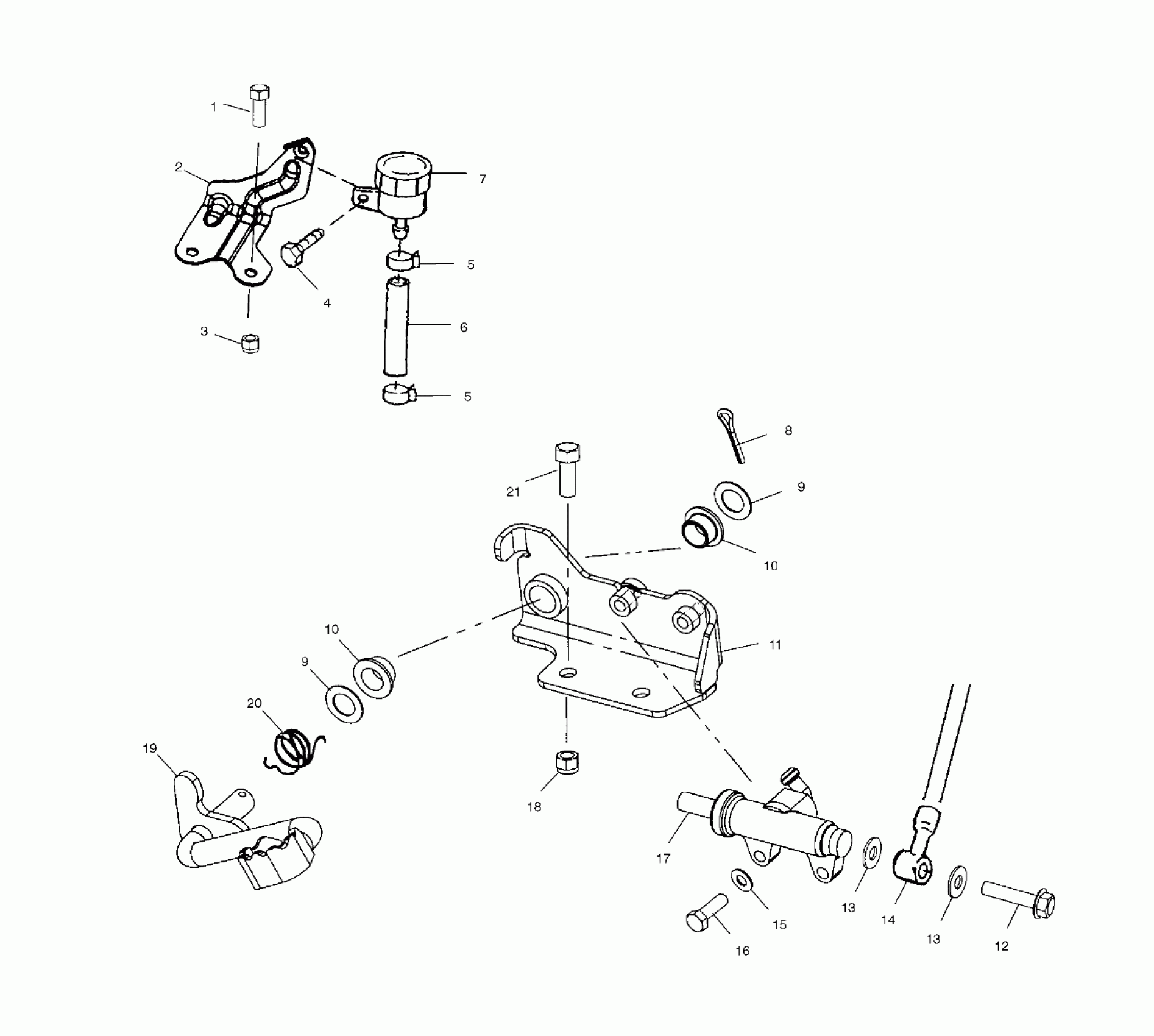

Polaris XPLORER 400 - A01CG38CA REAR BRAKE MASTER CYLINDER - A01CG38CA (4963916391C001) Diagram

#

Description
Price

1

SCREW(10)

7512113

$3.99

2

BRKT,RESERVOIR MNT,BLK

5244091-067

$5.75

3

NUT-LOCK(10)

7542122

$1.49

4

SCREW(10)

7512208

$3.99

5

HOSE CLAMP, RED

7080003

$1.49

5

HOSE CLAMP, RED

7080003

$1.49

6

HOSE,RES.,1/4 ID,5.78 LG

1910438

$7.27

7

RESERVOIR ASM,R.BRAKE

1930854

$35.99

8

COTTER PIN(10)

7661401

$1.49

9

WASHER(10)

7555919

$4.99

9

WASHER(10)

7555919

$4.99

10

BUSHING-PEDAL PIVOT

5431107

$8.79

10

BUSHING-PEDAL PIVOT

5431107

$8.79

11

MOUNT,BRAKE,CDS,BLK

1910375-067

Unavailable

12

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.99

13

Seal

5410988

$4.84

13

Seal

5410988

$4.84

14

Line, Foot Brake, Rear (See Rear Caliper Mounting Pg. B13, Ref. 6)

-------

Unavailable

15

LOCK WASHER(10)

7552801

$1.59

16

SCREW(10)

7515179

$2.39

17

BRAKE MSTR CYL,FOOT,BANJO

1910311

$166.01

18

NUT-5/16-18 NYLOK-Y

7542324

$1.49

19

BRAKE ROD,CDS,GEN 4,BLK

1910376-067

$51.99

20

SPRING-TORSION,BRAKE

7041750

$8.79

21

BOLT(10)

7515321

$1.49
