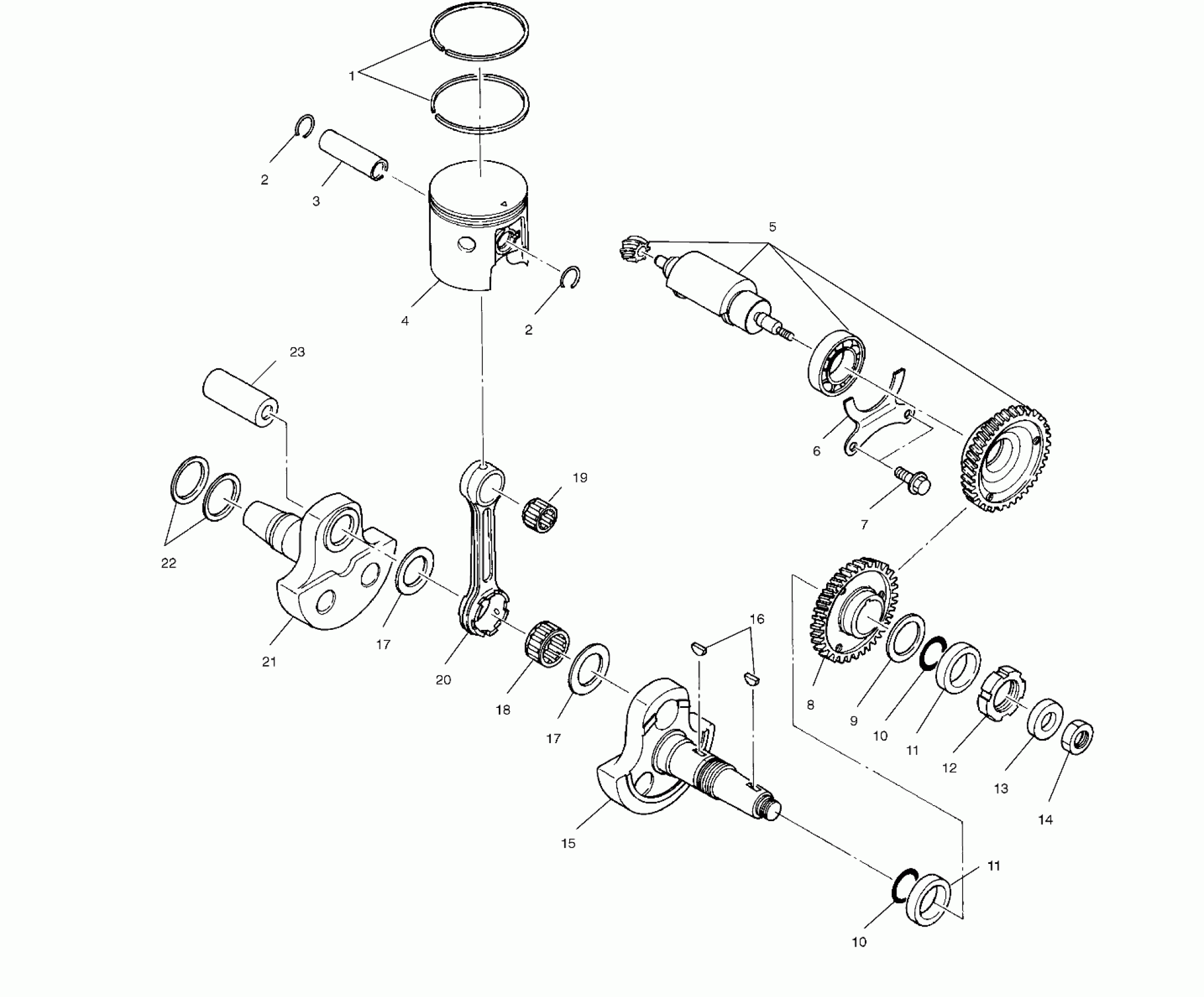

Polaris XPLORER 400 - A01CG38CA PISTON and CRANKSHAFT - A01CG38CA (4963916391C013) Diagram

#

Description
Price

1

RING,PISTON,(.50MM O/S) (0.50"/.020mm O/S)

3084739

$23.99

1

RING,PISTON,(.25MM O/S) * (0.25"/.010mm O/S)

3084738

$31.99

1

RING,PISTON,STD. (Std)

3084737

$28.56

2

CLIP,(10)

3084167

$6.39

2

CLIP,(10)

3084167

$6.39

3

Pin, Piston

3083838

$27.99

4

PISTON SET (STD) (Std)

3085886

Unavailable

4

PISTON SET (0.25 O/S) (0.25"/.010mm O/S)

3085887

$111.99

4

PISTON SET (0.50 O/S) (0.50"/.020mm O/S) NOTE: This Part Is Interchangeable In A Combination Of Carburetor Parts.

3085888

$107.99

5

Balancer

3087042

Unavailable

6

Plate

3086768

$25.59

7

BOLT,FLANGE [No Longer Available]

3086769

Unavailable

8

GEAR, DRIVE *

3084156

$110.32

9

WASHER-GUIDE

3086764

Unavailable

10

O RING

3084160

Unavailable

10

O RING

3084160

Unavailable

11

Collar

3086763

Unavailable

11

Collar

3086763

Unavailable

12

NUT,SLIT

3086762

Unavailable

13

WASHER

3086767

Unavailable

14

LOCKNUT

3083905

Unavailable

15

CRANKSHAFT #1,MAG SIDE

3084149

$216.99

15

CRANKSHAFT ASM. * (Incl. 15,17,18,20,21,23)

3084776

Unavailable

16

KEY Substituted by 3081543

3080130

Unavailable

17

Spacer, Crank Pin

3084155

Unavailable

17

Spacer, Crank Pin

3084155

Unavailable

18

Bearing, Large End

3084154

Unavailable

19

Bearing, Small End

3084168

$31.99

20

Rod, Connecting

3084153

Unavailable

21

CRANKSHAFT #2,PTO SIDE

3084777

$149.99

22

SPACER-1 (0.2mm)

3086765

Unavailable

22

SPACER-2 (0.3mm)

3086766

Unavailable

23

PIN, CRANK #1

3084152

$78.39
