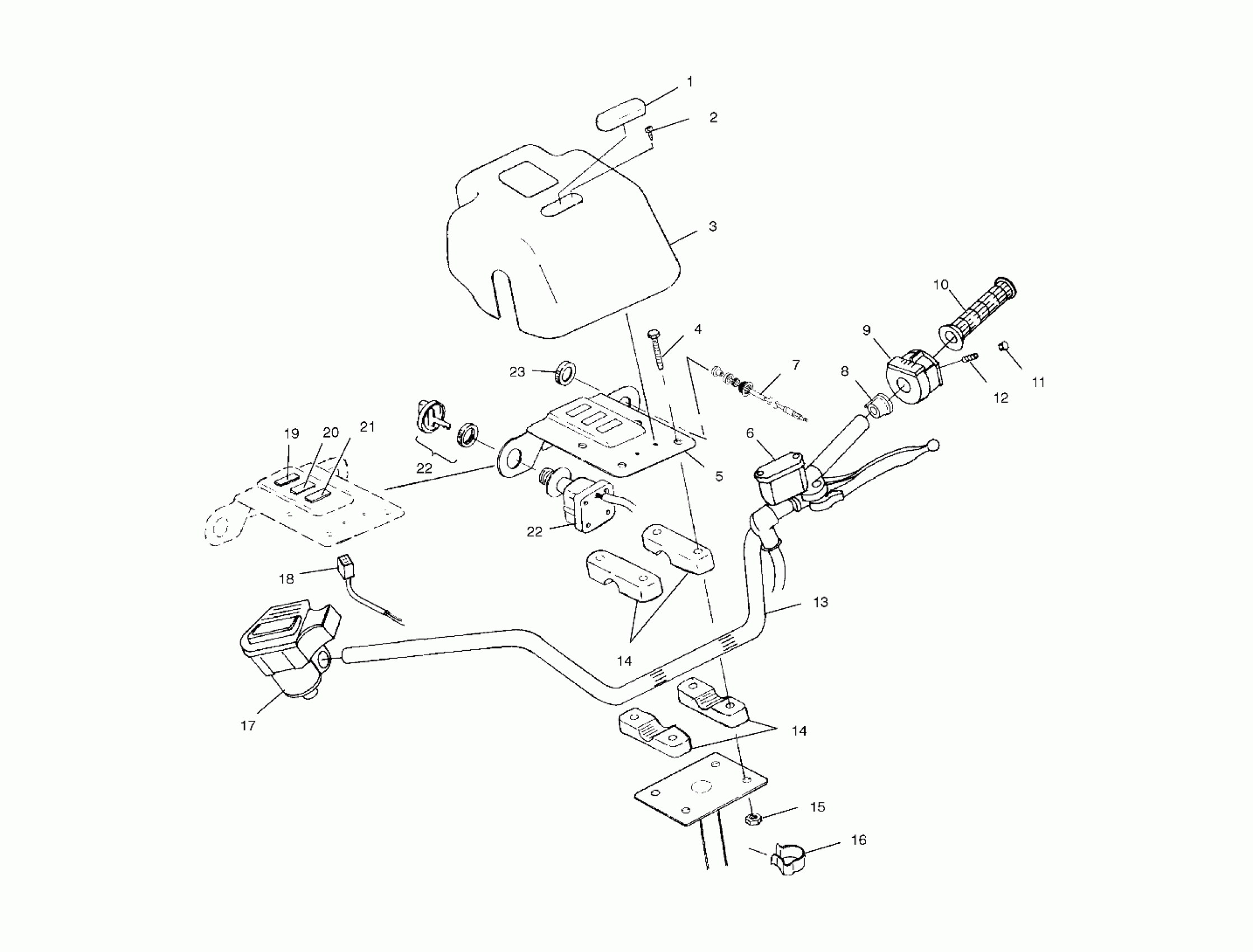

Polaris XPLORER 400 - A01CG38CA HANDLEBAR - A01CG38CA (4963916391B010) Diagram

#

Description
Price

1

COVER-LOGO, BLK

5432247-070

Unavailable

2

SCREW,(10)

7512024

$4.79

3

PANEL,INST.,BLK

5432246-070

Unavailable

4

Screw

7517216

Unavailable

5

BRKT,INST.PANEL,BLK

5241397-067

$24.79

6

Asm., Master Cylinder (See Control - Master Cyl./Brake Line Pg. B7 for Details)

-------

Unavailable

7

Cable, Choke

7081008

$79.99

8

SPACER-SWITCH,LH,99

5433903

Unavailable

9

SWITCH-HANDLEBAR,H/L/O,REV/OR

4010262

$203.99

10

GRIP-HNDLBAR,7/8 ID,ATV,BLACK

5433834-070

$24.27

11

PLUG,HOLE(10)

5432952

$5.59

12

SCREW,SET

7517625

$4.79

13

HANDLEBAR,TUBE,BLK

5224715-067

Unavailable

14

BLOCK,H'BAR,(300)

5630629

$11.59

14

BLOCK,H'BAR,(300)

5630629

$11.59

15

NUT-LOCK(10)

7542122

$1.49

16

CLIP,CABLE RETAIN,(10)

7080631

$6.29

17

Asm., Throttle Control (See Controls - Throttle Asm./Cable Pg. B6, Ref. 3)

-------

Unavailable

18

HARNESS,CTRL.PANEL,400

2460872

Unavailable

19

INDIC"NEUT./REV."

4040054

$31.99

20

INDIC"HOT TEMPERATURE"

4040053

$31.99

21

INDICATOR"LOW OIL"(SYMBOL)

4010140

Unavailable

22

BLANK, KEY, SERIES 2000, 2100, 6700, 6800

4010278

Unavailable

22

KEY SWITCH KEY COVER

5433534

$12.35

22

Blank, Key, Series 2200, 2300, 2700, 2800. Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010321

Unavailable

22

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

22

SWITCH,IGNITION

4110264

$104.24

22

BLANK, KEY, SERIES 2000, 2100, 6700, 6800

4010278

Unavailable

22

KEY SWITCH KEY COVER

5433534

$12.35

22

Blank, Key, Series 2200, 2300, 2700, 2800. Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010321

Unavailable

22

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

22

SWITCH,IGNITION

4110264

$104.24

23

Nut

7080229

$19.99
