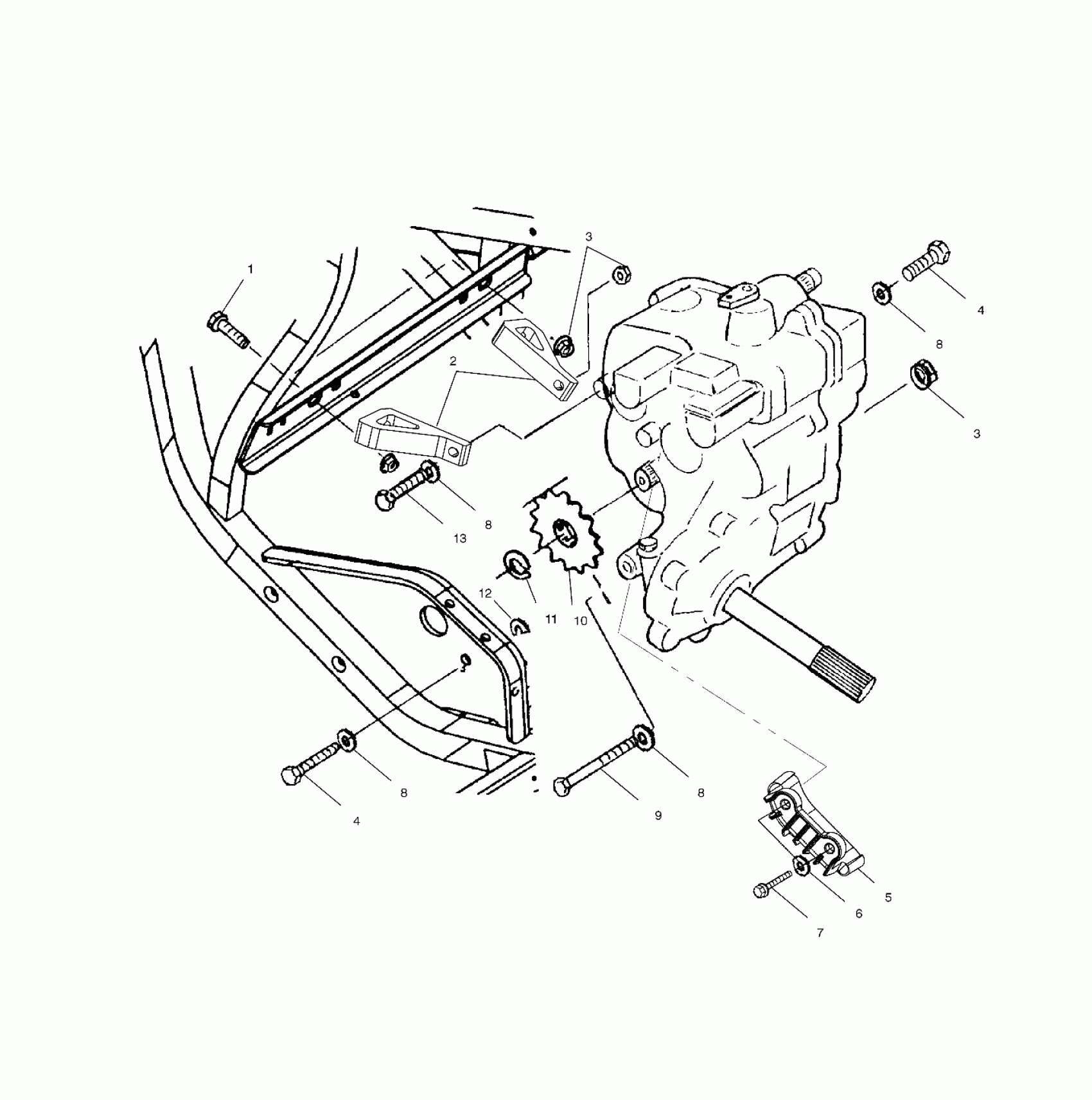

Polaris XPLORER 400 - A01CG38CA GEARCASE MOUNTING - A01CG38CA (4963916391C009) Diagram

#

Description
Price

1

SCREW

7517632

$5.59

2

MOUNT-TRANSMISSION,REAR,MACH

5132046

$35.99

3

NUT-3/8-16 FLG LOCK-Y

7547089

$4.79

3

NUT-3/8-16 FLG LOCK-Y

7547089

$4.79

4

SCREW(10)

7512492

$1.49

4

SCREW(10)

7512492

$1.49

5

GUIDE-CHAIN,TRANSMISSION

5433109

$28.32

6

WASHER(10)

7558301

$1.49

7

BOLT(10)

7512276

$4.79

8

WASHER(10)

7555806

$1.49

8

WASHER(10)

7555806

$1.49

8

WASHER(10)

7555806

$1.49

8

WASHER(10)

7555806

$1.49

9

SCREW

7517646

$7.19

10

SPKT,13T,SPLINED

3221041

$43.99

11

RING,SNAP(10)

7710434

$3.99

12

SPACER,(10) (.020)

5210764

Unavailable

12

SHIM,.010,GEARCASE (.010)

5211065

Unavailable

12

SHIM,(.030) (.030)

5211517

Unavailable

13

Screw

7517640

$10.39
