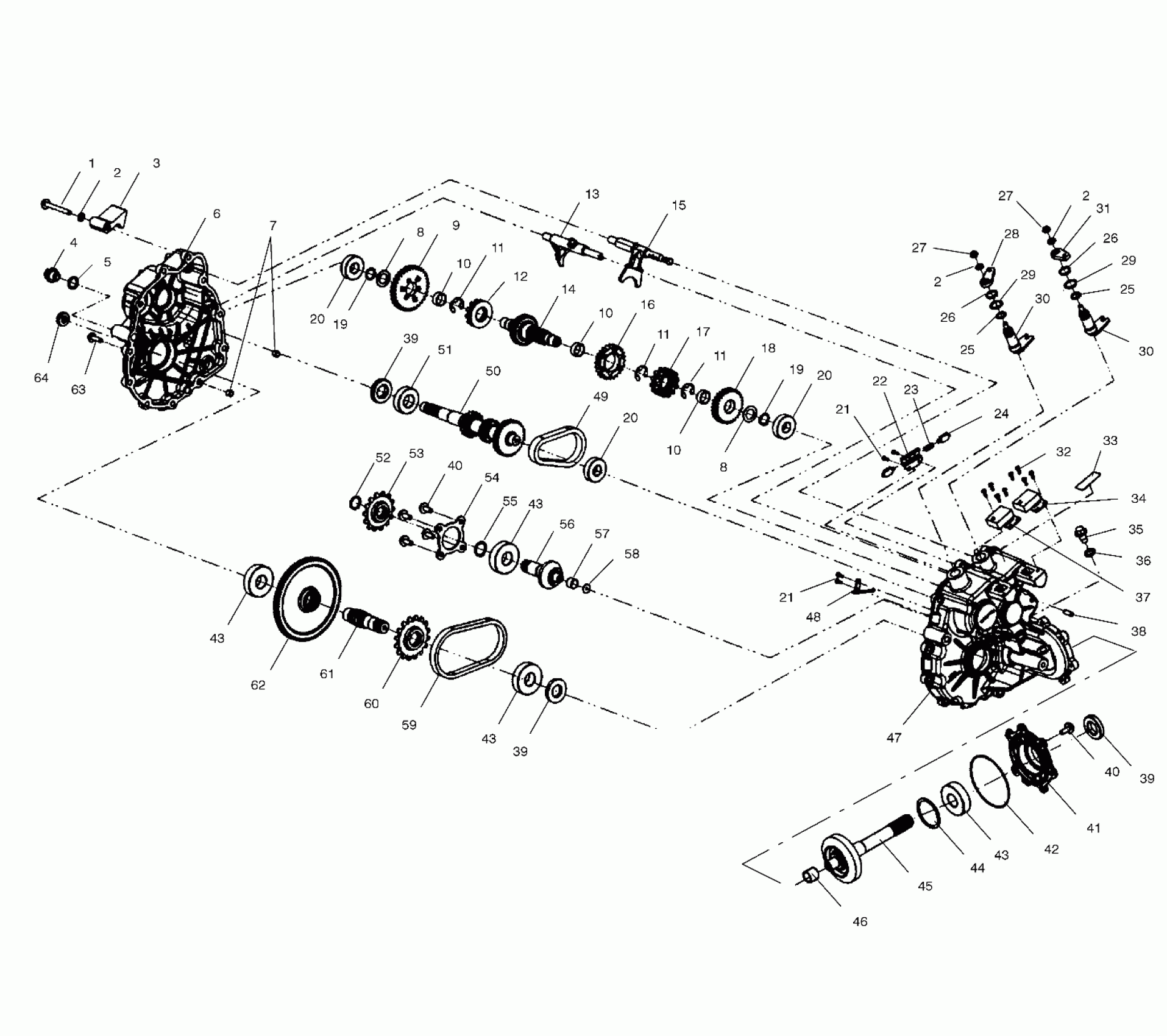

Polaris XPLORER 400 - A01CG38CA GEARCASE (If built before 4/01/01)- A01CG38CA (4963916391C007) Diagram

#

Description
Price

-

Asm., Gearcase (Incl 1-64)(If built before 4/1/01)(See Gearcase Pg. D8 if built after 4/1/01)) (Incl 1-64)(If built before 4/1/01)(See Gearcase Pg. D8 if built after 4/1/01))

1341326

Unavailable

1

Screw

3233525

$1.59

2

Washer

3233054

$6.46

2

Washer

3233054

$6.46

2

Washer

3233054

$6.46

3

Dampener, Carb Vibration

3233526

Unavailable

4

Plug

3233448

$23.81

5

Washer

3233035

Unavailable

6

Gearcase, LH

3233632

$354.99

7

Pipe, Knock

3233529

$10.99

8

WASHER, THRUST

3233176

$9.52

8

WASHER, THRUST

3233176

$9.52

9

Gear, 33T

3233731

Unavailable

10

BEARING, NEEDLE

3233718

$35.71

10

BEARING, NEEDLE

3233718

$35.71

10

BEARING, NEEDLE

3233718

$35.71

11

Ring, Retaining

3233720

$9.52

11

Ring, Retaining

3233720

$9.52

11

Ring, Retaining

3233720

$9.52

12

Engagement Dog, Low

3233732

$178.08

13

Fork, Shift Low

3233706

$119.05

14

Shaft, Reverse, 31T

3233736

Unavailable

15

Fork, Shift, High/Rev.

3233633

$141.65

16

Sprocket, 24T

3233719

$109.27

17

Engagement Dog, High/Rev.

3233721

Unavailable

18

Gear, 30T

3233722

Unavailable

19

Ring, Retaining

3233177

Unavailable

19

Ring, Retaining

3233177

Unavailable

20

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

20

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

20

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

21

Screw

3233033

Unavailable

21

Screw

3233033

Unavailable

22

Bracket, Interlock

3233309

$20.48

23

Spring

3233032

$13.75

24

Pin, Interlock

3233308

Unavailable

25

O-Ring

3233548

$33.24

25

O-Ring

3233548

$33.24

26

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

26

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

27

Nut, FLEXLOC

3233055

$3.32

27

Nut, FLEXLOC

3233055

$3.32

28

Bellcrank

3233547

$56.99

29

Washer

3233040

$9.52

29

Washer

3233040

$9.52

30

Shaft, Shift

3233549

Unavailable

30

Shaft, Shift

3233549

Unavailable

31

Bellcrank, High/Low/Rev.

3233153

$32.37

32

Screw

3233691

$5.65

33

Decal - Switch

3233636

Unavailable

34

Switch

3233635

$174.99

35

Plug, Oil Fill

3233711

Unavailable

36

Washer

3233324

$8.54

37

Switch

3233617

Unavailable

38

Vent

3233037

Unavailable

39

Seal

3233248

$32.37

39

Seal

3233248

$32.37

39

Seal

3233248

$32.37

40

Screw

3233539

Unavailable

40

Screw

3233539

Unavailable

41

Cover, Snorkel

3233556

$31.11

42

O-Ring

3233555

$6.06

43

BEARING

3233020

$47.62

43

BEARING

3233020

$47.62

43

BEARING

3233020

$47.62

43

BEARING

3233020

$47.62

44

SHIM

3233554

Unavailable

45

Shaft, Snorkel

3233723

Unavailable

46

BUSHING-GARLOCK

3233552

$23.81

47

Gearcase, RH

3233799

Unavailable

48

Deflector, Oil

3233043

$13.10

49

Chain, Silent

3233036

Unavailable

50

Shaft, Input

3233704

Unavailable

51

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

52

Ring, Retaining

3233537

$6.99

53

Sprocket, 14/22T

3233538

Unavailable

54

Cover, Bearing

3233263

Unavailable

55

RING, RETAINING

3233306

$4.76

56

Shaft, Pinion, 13T

3233540

$158.73

57

Bushing

3233541

$23.81

58

Washer

3233542

$11.32

59

Chain, Roller

3233546

$68.79

60

Sprocket, 16/26T

3233545

$55.56

61

Shaft, Output

3233544

$174.99

62

Gear, 98T

3233558

$211.90

63

Screw

3233252

$5.69

64

Bushing, Pivot

3233527

$39.99
