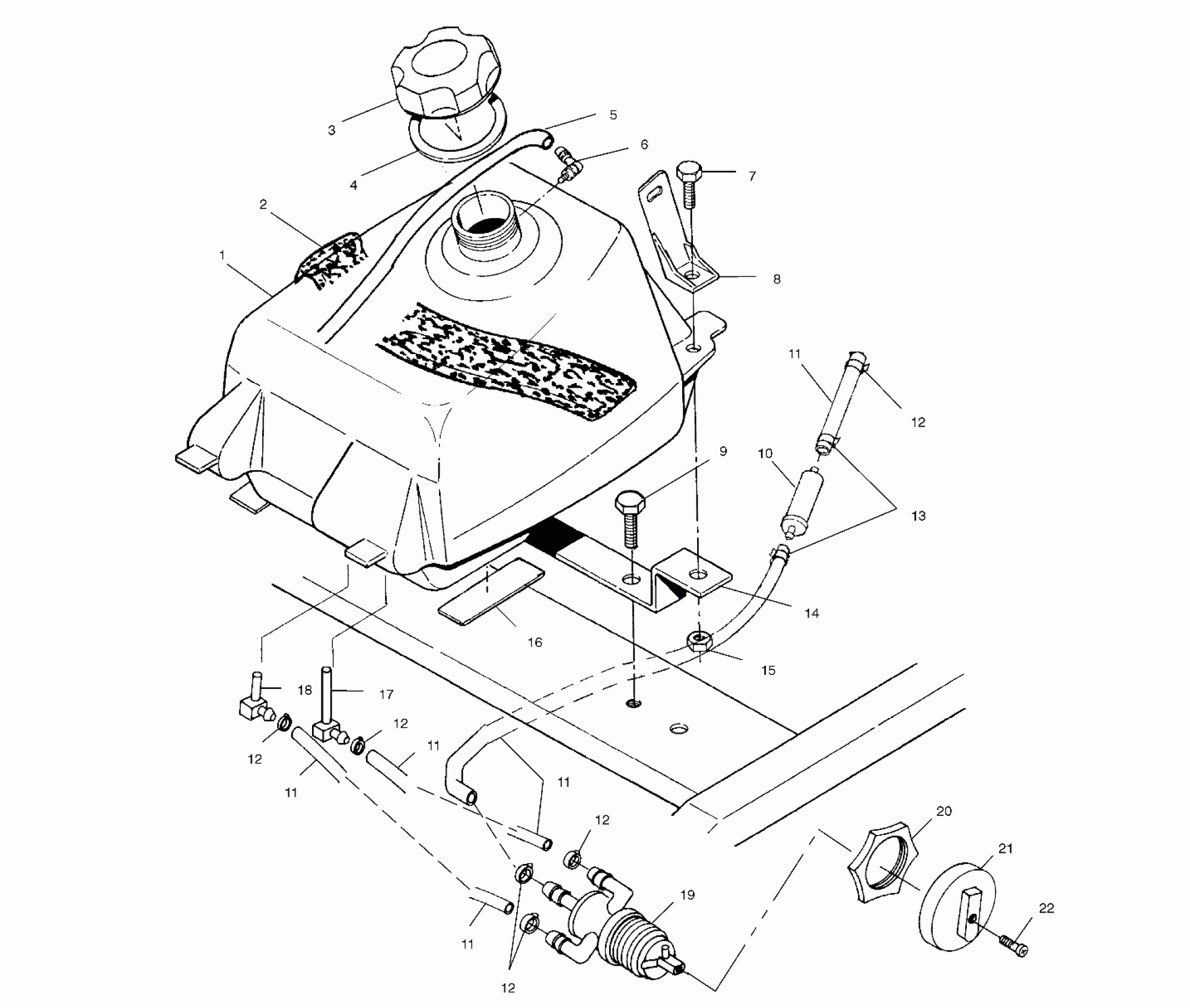

Polaris XPLORER 400 - A01CG38CA FUEL TANK - A01CG38CA (4963916391A012) Diagram

#

Description
Price

1

FUELTANK,90-,PERPENDICULR (Incl. 6,17,18) (If built before 11/01/00)

1240082

Unavailable

1

FUEL TANK,STRAIGHT FTGS [Item NotAvailable] (Incl. 6,17,18) (If built after 11/01/00)

2520240

Unavailable

2

Foam, Seal

5811052

Unavailable

3

CAP,GAS TANK

5433687

$20.22

4

GASKET,GAS CAP

5812123

$5.65

5

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

6

Vent, Tank

5431053

$19.99

7

SCREW(10)

7512310

$2.39

8

BRKT,LH.R.FUELCOVER,BLK.

5222154-067

Unavailable

8

BRKT,RH.R.FUELCOVER,BLK.

5222155-067

Unavailable

9

SCREW(10)

7512208

$3.99

10

FILTER FUEL,(10)

2530008

$4.84

11

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

11

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

11

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

11

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

11

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

12

HOSE CLAMP, RED

7080003

$1.49

12

HOSE CLAMP, RED

7080003

$1.49

12

HOSE CLAMP, RED

7080003

$1.49

12

HOSE CLAMP, RED

7080003

$1.49

12

HOSE CLAMP, RED

7080003

$1.49

13

CLAMP,SPRING,(10)

7080534

$1.59

14

BRKT,R.TANK MT,BLK.

5220916-067

Unavailable

15

NUT-5/16-18 NYLOK-Y

7542324

$1.49

16

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

17

FITTING,FUEL OUT,MAIN,4",Y (If built after 11/01/00)

7052150

$27.99

17

ELBOW, MAIN (If built before 11/01/00)

7052147

Unavailable

18

FITTING,FUEL OUT,RES.,Z (If built before 11/01/00)

7052149

$23.99

18

FITTING,FUEL OUT,90DEG,RES,Z (If built before 11/01/00)

7052148

Unavailable

19

VALVE,3-WAY,HORIZ PORTS

7052154

$39.99

20

NUT,FUELVALVE,ATV

5432733

Unavailable

21

KNOB,FUEL VALVE

5432559

$10.39

22

SCREW(10)

7517505

$1.59
