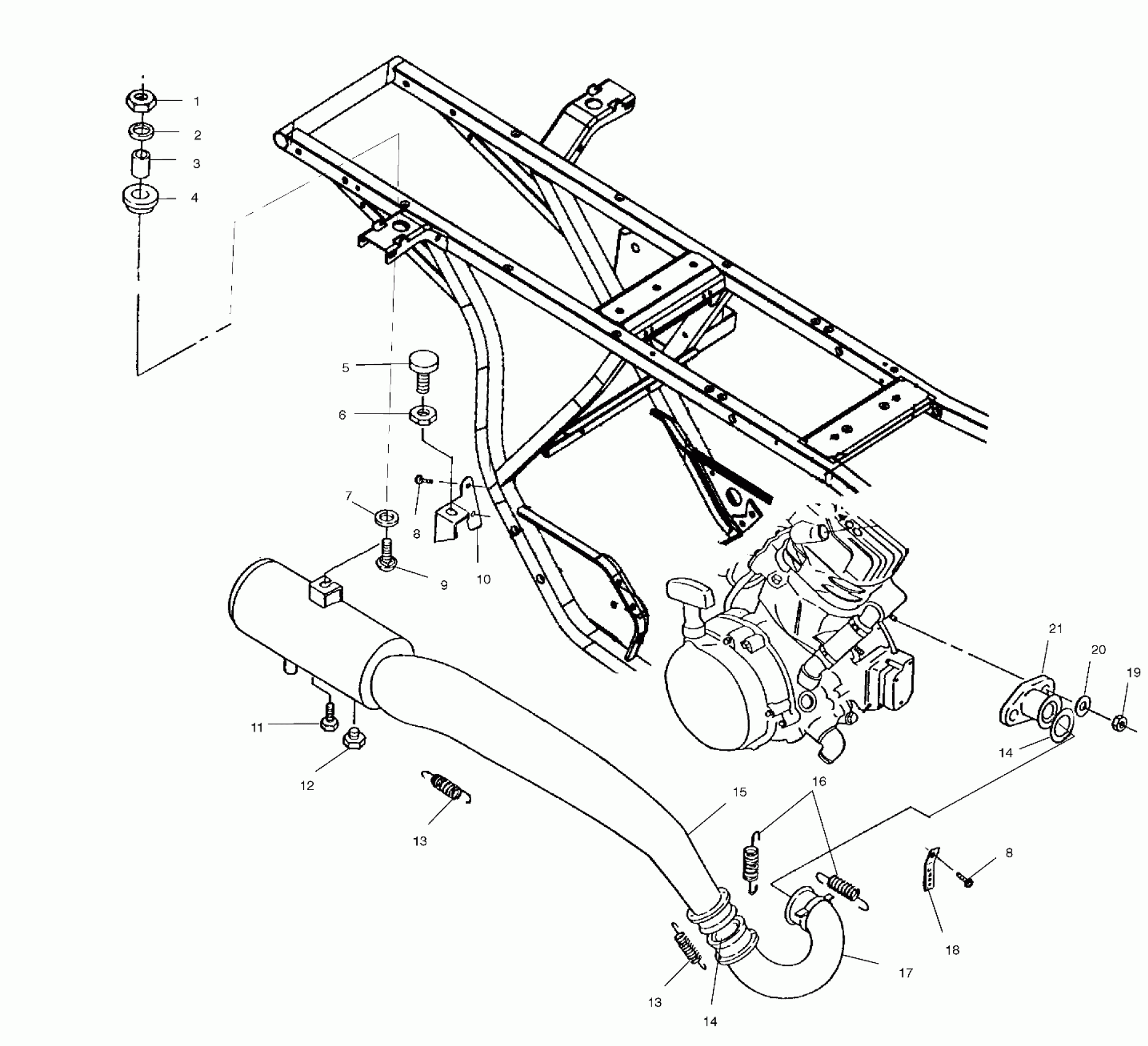

Polaris XPLORER 400 - A01CG38CA EXHAUST SYSTEM - A01CG38CA (4963916391A011) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

2

WASHER(10)

7555716

$1.59

3

BUSHING-RES. MT.

5010192

$6.39

4

DAMPENER

5410241

Unavailable

5

MOUNT,TORQUE-STOP

3110064

Unavailable

6

NUT HEX(10)

7542301

$1.59

7

WASHER,RUBBER

5410436

$1.59

8

BOLT(10)

7512232

$1.49

8

BOLT(10)

7512232

$1.49

9

BOLT(10)

7515316

$2.39

10

NUTSERT-5/16-18(.027-.150),HXY

7547101

$9.59

10

BRKT-EXHAUST MOUNT,XPL 400,BLK

5243199-067

Unavailable

11

BOLT(10)

7512666

$2.39

12

PLUG, CLEANOUT

7052083

$15.87

13

SPRING, EXHAUST(10)

7042031

$5.65

13

SPRING, EXHAUST(10)

7042031

$5.65

14

GASKET,EXHAUST

5211688

$36.41

14

GASKET,EXHAUST

5211688

$36.41

15

EXHAUST,XPLORER 400,BLK

1260906-029

Unavailable

16

SPRING-EXHAUST(10)

7042029

$4.84

17

HEADPIPE,GEN 4,400,BLK

1260901-029

$87.99

18

TAB, SPRINGS

5222665

Unavailable

19

Nut (See Crankcase and Cylinder Pg. C12, Ref. 9)

-------

Unavailable

20

Washer, Lock (See Crankcase and Cylinder Pg. C12, Ref. 10)

-------

Unavailable

21

MANIFOLD,GEN 4,400,BLK

1260902-029

Unavailable
