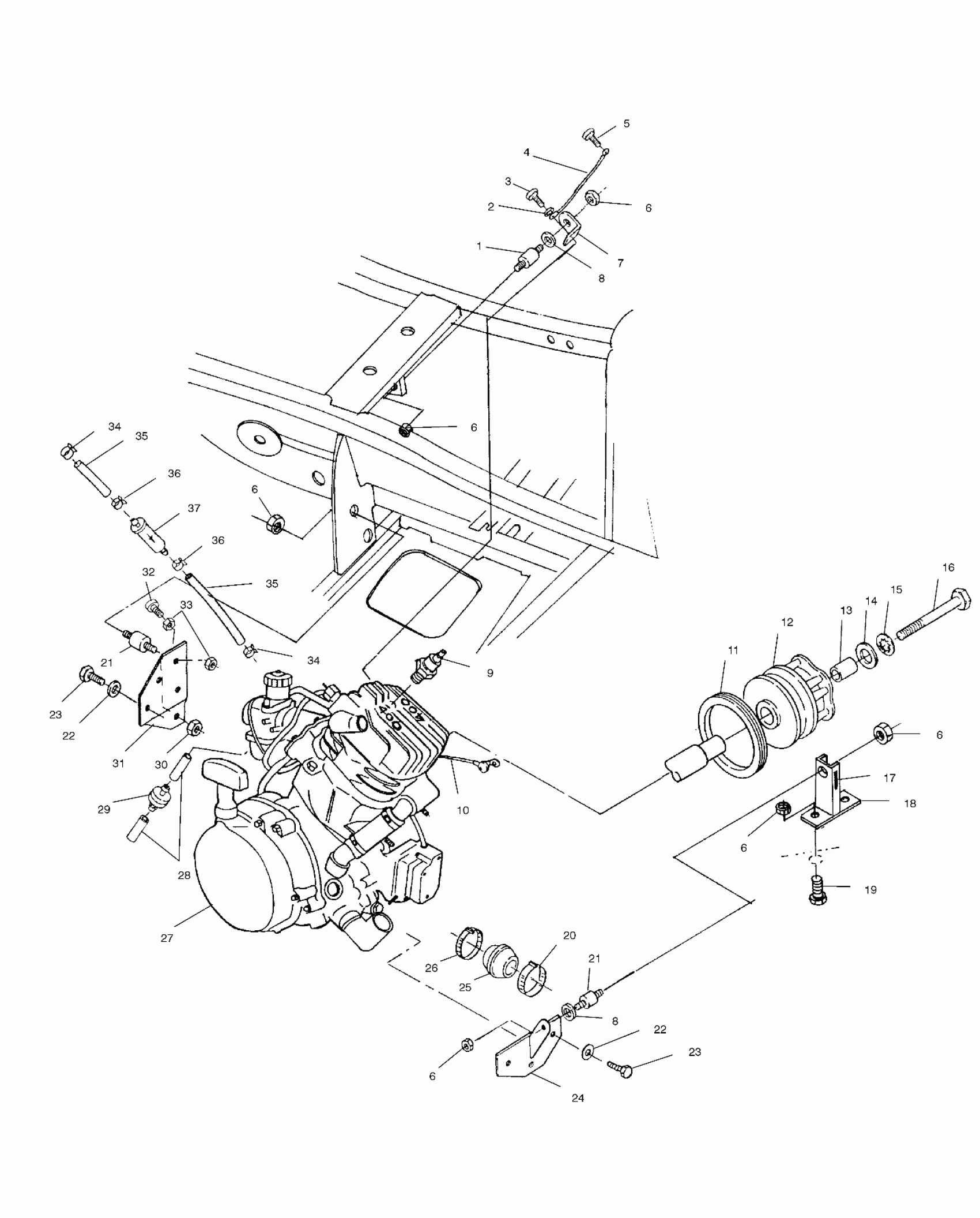

Polaris XPLORER 400 - A01CG38CA ENGINE MOUNTING - A01CG38CA (4963916391A009) Diagram

#

Description
Price

1

MT.,RUBBER,ENG.

3110038

Unavailable

2

LOCK WASHER(10)

7552901

$1.49

3

BOLT(10)

7512315

$4.79

4

CABLE,GND-ENGINE

4010132

Unavailable

5

BOLT(10)

7512232

$1.49

6

NUT

7547108

$4.79

6

NUT

7547108

$4.79

6

NUT

7547108

$4.79

6

NUT

7547108

$4.79

6

NUT

7547108

$4.79

6

NUT

7547108

$4.79

7

BRKT,ENG.MT,TOP,BLK,400

5242692-067

Unavailable

8

WASHER(10)

7555823

$3.99

8

WASHER(10)

7555823

$3.99

9

SPARKPLUG (10)

3070156

$3.99

10

CABLE-RED,SOL/STRTR,DBLBOOT34"

4010218

$47.99

11

Seal, Cover Case (See Clutch Cover Pg. C5, Ref. 1)

-------

Unavailable

12

Asm., Drive Clutch, Basic ATV-06 (See Drive Clutch Pg. C3, Ref. 14)

-------

Unavailable

13

BUSHING-.437 X.770 X.50

5430261

$7.19

14

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

15

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

16

BOLT(10)

7512566

$30.79

17

EDGE TRIM-BLACK,04 CM

8360012-04

Unavailable

18

MOUNT,FR.ENGINE,BLK.

1040687-067

$15.56

19

SCREW ,(10)

7517289

$4.79

20

CLAMP, NARROW BAND(10)

7080511

$4.79

21

MOUNT,RUBBER,ENG.

3110042

Unavailable

21

MOUNT,RUBBER,ENG.

3110042

Unavailable

22

WASHER(10)

7552603

$1.49

22

WASHER(10)

7552603

$1.49

23

SCREW(10)

7512490

$3.99

23

SCREW(10)

7512490

$3.99

24

MOUNT,ENGINE

1040231-067

Unavailable

25

BOOT,CLUTCH INLET,2.4X2.1X5.2

5411681

Unavailable

26

CLAMP,BAND,NARROW

7080656

Unavailable

27

ENG.EC38PLE08,09,11 [No Longer Available] (EC38PLE10) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior aut

3085821

Unavailable

28

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

29

VENT,CHECKVALVE

7051011

Unavailable

30

NUT LOCK(10)

7542411

$3.19

31

BRKT,ENG.MT,REAR,BLK

5242463-067

$56.99

32

MT,TORQUE STOP,RUBBER

3110048

$7.43

33

NUT, JAM(10)

7542432

$3.99

34

HOSE CLAMP, RED

7080003

$1.49

34

HOSE CLAMP, RED

7080003

$1.49

35

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

35

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

36

CLAMP,SPRING,(10)

7080534

$1.59

36

CLAMP,SPRING,(10)

7080534

$1.59

37

FILTER FUEL,(10)

2530008

$4.84
