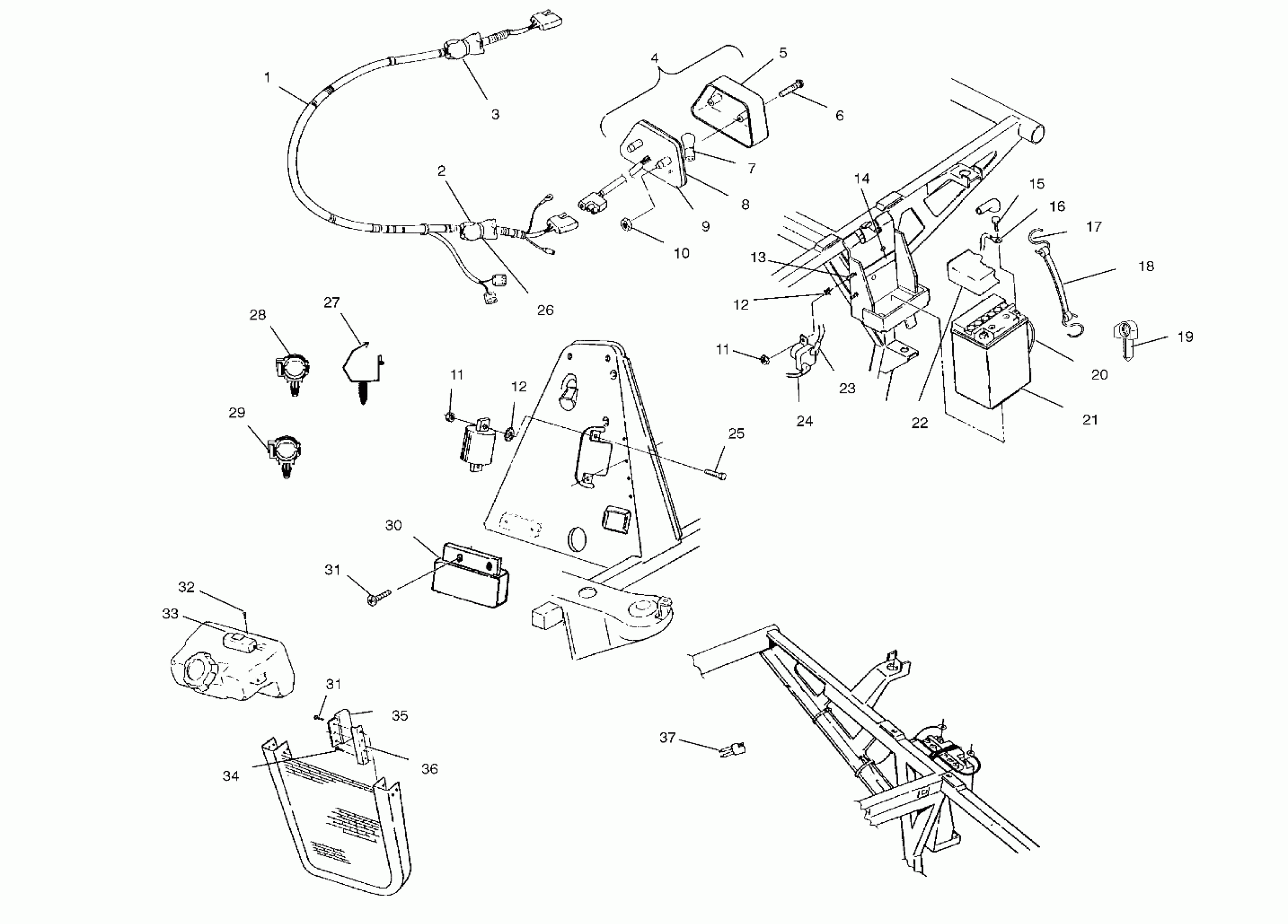

Polaris XPLORER 400 - A01CG38CA ELECTRICAL/TAILLIGHT - A01CG38CA (4963916391C006) Diagram

#

Description
Price

1

HARNESS-WIRE,MAIN,XPL 400

2460819

Unavailable

2

KIT,CKT.BRKR,20 AMP

2200593

$63.99

3

KIT-CIRCUT BREAKER,FAN

2201795

$68.79

4

TAIL LIGHT ASM. (Incl. 5-10)

2432034

$55.99

5

LENS,TAILLIGHT

4032046

$32.37

6

Screw, Taillight

4032029

$4.79

7

BULB,TAILLIGHT

4030043

$6.46

8

GASKET,TAILLIGHT

4032045

$4.03

9

BACKING,TAILLIGHT

4032064

$83.99

10

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

11

NUT(10)

7541925

$1.49

11

NUT(10)

7541925

$1.49

12

WASHER(10)

7571602

$4.79

12

WASHER(10)

7571602

$4.79

13

SCREW(10)

7512027

$1.49

14

PAD-BATTERY

5810290

$7.27

15

BOLT,BATT,KIT(SHORT)

2200361

$3.99

16

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

17

HOOK-BATT.H/D(10)

7010032

$1.59

18

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

19

CLIP,SILENCER,(10)

7670102

$2.39

20

TUBE,BATTERY VENT

5432077

Unavailable

21

Battery

4140006

$99.99

22

COVER,BATTERY

5431769

$14.39

23

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

24

Cable, Solenoid/Starter (See Engine Mounting Pg. A10, Ref. 10)

-------

Unavailable

25

SCREW(10)

7512007

$3.99

26

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

27

CLIP-ROUTING

7670109

$2.39

28

CLIP,ROSEBUD

4020149

$6.39

29

CLIP, PLASTIC(10)

4020139

$4.79

30

LIMITER-RPM,HUB GROUND,LR83-3

4010195

Unavailable

31

SCREW(10)

7512017

$4.79

31

SCREW(10)

7512017

$4.79

32

BOLT(10)

7511864

$4.79

33

BRACKET-CDI

5241416

$5.75

34

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

35

RECTIFIER/REGULATOR,LR-35

4060191

Unavailable

36

HEATSINK,RECT.

5131818

Unavailable

37

PIGTAIL, POWER

2460442

$12.39
