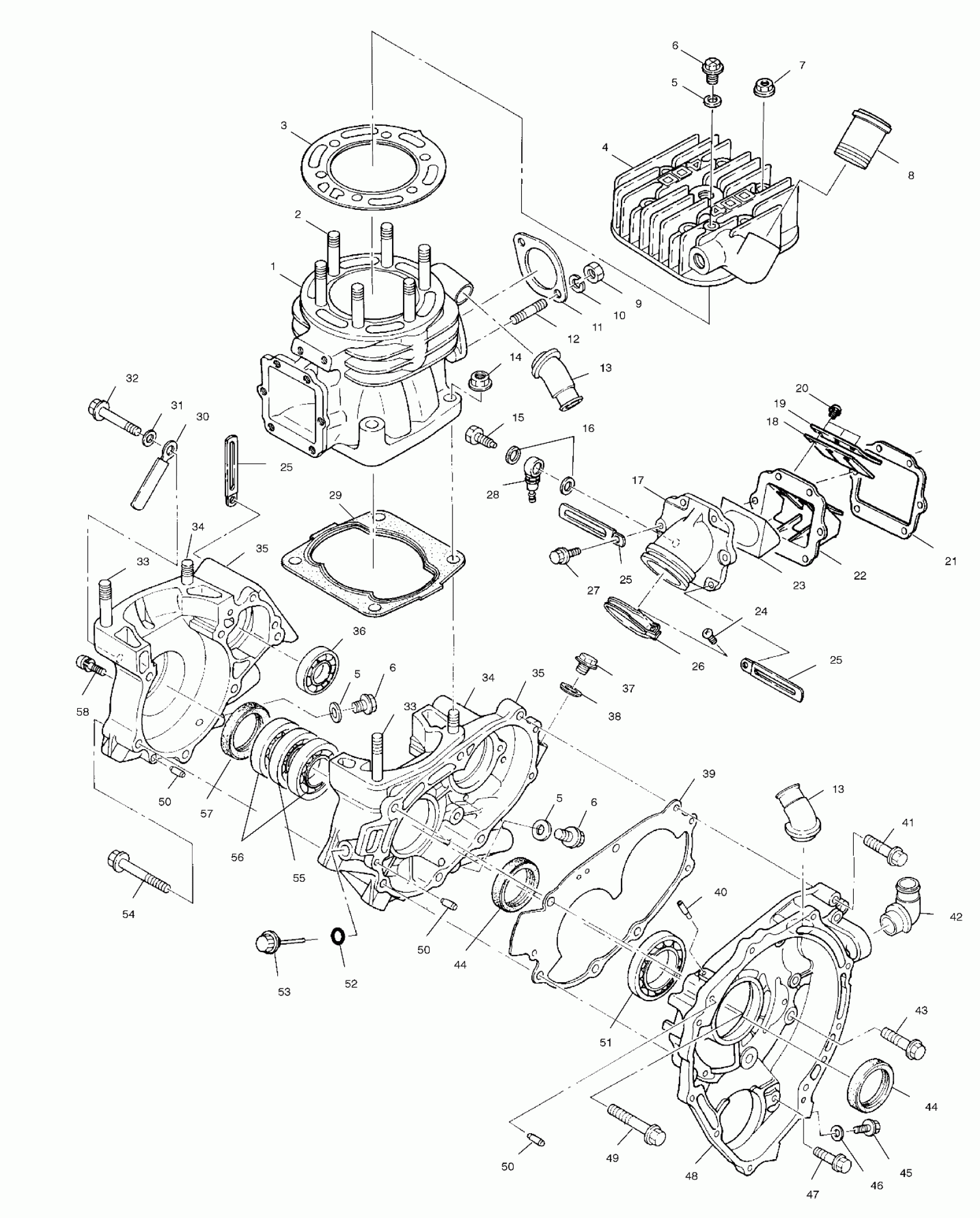

Polaris XPLORER 400 - A01CG38CA CRANKCASE and CYLINDER - A01CG38CA (4963916391C011) Diagram

#

Description
Price

1

CYLINDER (Incl. 2,12,13)

3086753

Unavailable

2

Stud

3084138

Unavailable

3

GASKET,HEAD

3084731

Unavailable

4

CYLINDER-HEAD (Incl. 8)

3086755

Unavailable

5

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

5

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

5

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

6

PLUG Substituted by 3083767

3086744

$4.79

6

PLUG Substituted by 3083767

3086744

$4.79

6

PLUG Substituted by 3083767

3086744

$4.79

7

NUT-FLANGE(10)

3082910

$2.39

8

PIPE-WATER Substituted by 3083452

3086756

Unavailable

9

NUT(10)

3080285

Unavailable

10

WASHER LOCK ,(10)

3080530

$3.19

11

GASKET-EXHAUST

3086757

Unavailable

12

STUD,(10)

3085326

Unavailable

13

PIPE-1,ELBOW

3086746

$45.59

13

PIPE-1,ELBOW

3086746

$45.59

14

NUT-FLANGE(10)

3082911

$1.99

15

BOLT-BANJO Substituted by 3083137

3086758

Unavailable

16

WASHER(10) Substituted by 7555998

3083138

Unavailable

17

ADAPTER, CARB.

3085277

Unavailable

18

VALVE, REED(10)

3240064

Unavailable

19

Stopper

3240065

Unavailable

20

SCREW&WASHER Substituted by 3084565

3240066

Unavailable

21

GASKET-REED,VALVE Substituted by 3084148

3086760

Unavailable

22

VALVE ASM., REED (Incl. 18-20)

3084147

Unavailable

23

STUFFER,(REED VALVE ASM.)

3240164

$9.91

24

SCREW,(10)

3081497

$2.39

25

Clamp

3083590

$3.99

25

Clamp

3083590

$3.99

25

Clamp

3083590

$3.99

26

BAND ASM. (Incl. 24)

3084144

Unavailable

27

BOLT-FLANGE,ADAPTER Substituted by 3087150

3086759

Unavailable

28

VALVE, CHECK

3083894

Unavailable

29

GASKET,CYLINDER

3084729

$48.56

30

Clamp

3083384

Unavailable

31

WASHER(10)

3080142

$3.99

32

Bolt, Flange

3084124

$6.23

33

Stud

3084118

Unavailable

33

Stud

3084118

Unavailable

34

Stud

3084119

$9.59

34

Stud

3084119

$9.59

35

ASM-CRANKCASE (Incl. 5,6,32-36,44,47,50,54-57)

3086740

Unavailable

35

ASM-CRANKCASE (Incl. 5,6,32-36,44,47,50,54-57)

3086740

Unavailable

36

Bearing, Ball

3084123

Unavailable

37

PLUG

3086749

Unavailable

38

GASKET

3082956

$4.84

39

GASKET-CASE 3

3086748

$34.99

40

Pipe, Breather

3084128

Unavailable

41

BOLT-FLANGE

3086751

$5.99

42

PIPE-2,ELBOW

3086747

Unavailable

43

BOLT-FLANGE Substituted by 3084435

3086752

Unavailable

44

Seal, Oil

3084120

Unavailable

44

Seal, Oil

3084120

Unavailable

45

PLUG Substituted by 3085152

3086750

Unavailable

46

GASKET,ALUMINUM(10)

3083482

$3.22

47

BOLT-FLANGE Substituted by 3084126

3086743

Unavailable

48

CRANKCASE 3 (Incl. 13,40,42,44,45,46,50,51)

3086745

$579.99

49

Bolt, Flange

3084134

Unavailable

50

PIN-DOWEL Substituted by 3080103

3086741

Unavailable

50

PIN-DOWEL Substituted by 3080103

3086741

Unavailable

50

PIN-DOWEL Substituted by 3080103

3086741

Unavailable

51

Bearing, Ball

3084131

Unavailable

52

O-Ring

3084733

Unavailable

53

GAUGE-OIL

3086761

Unavailable

54

BOLT-FLANGE

3086742

Unavailable

55

Bearing, Ball

3084775

$43.99

56

Bearing, Ball

3084121

$39.99

57

Seal, Oil

3084725

Unavailable

58

SCREW & WASHER(10)

3084205

$3.99
