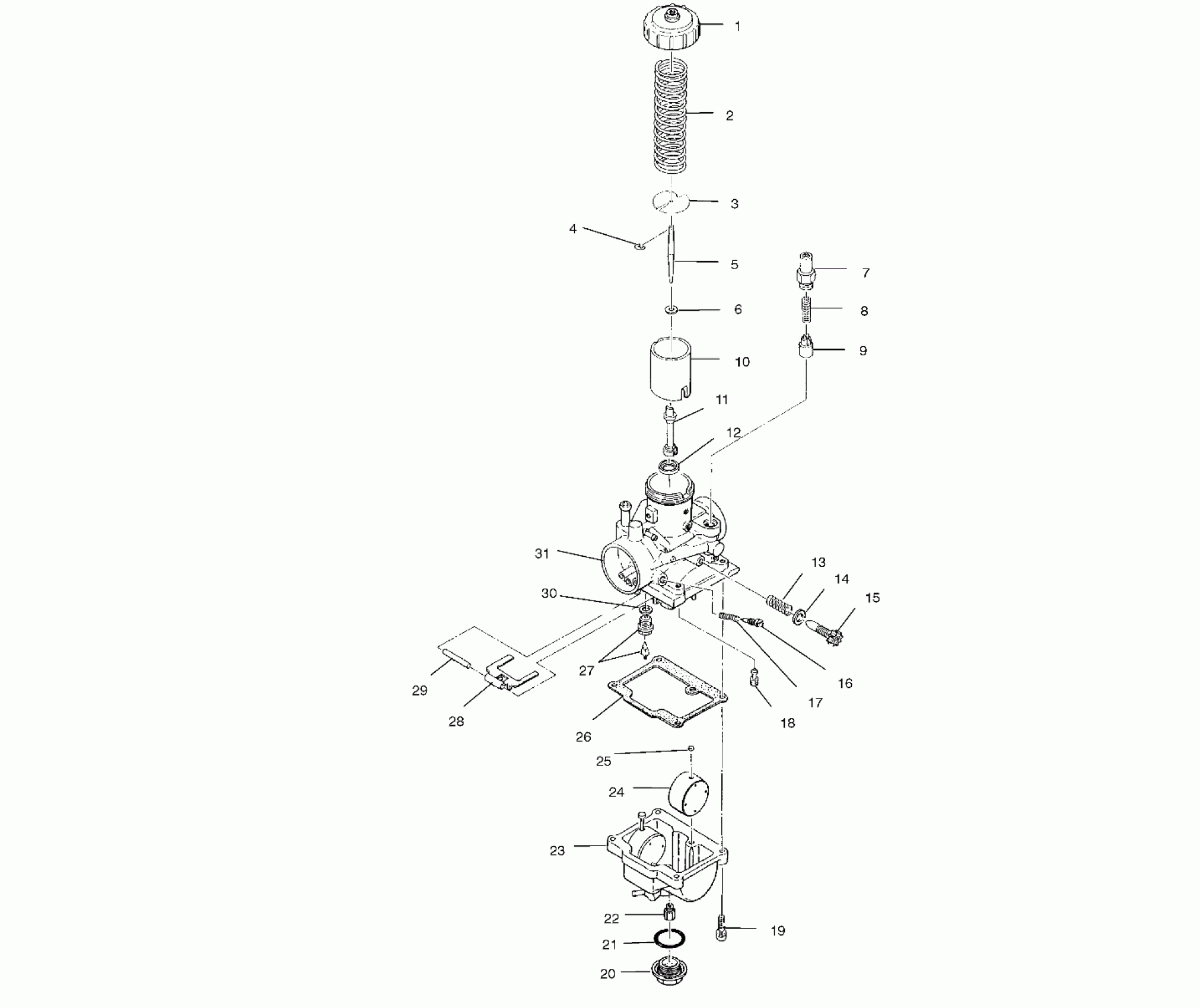

Polaris XPLORER 400 - A01CG38CA CARBURETOR - A01CG38CA (4963916391D002) Diagram

#

Description
Price

1

TOP ASM

3130184

$24.74

2

Spring, Throttle

3130496

$32.37

3

PLATE

3130027

$10.51

4

E RING(10) Substituted by 3130508

3130003

$6.46

5

NEEDLE-JET,6DEY12-3 (J8-DEY12)

3131298

Unavailable

6

Washer

3130355

$7.14

7

HOLDER,GUIDE

3130199

$28.32

8

SPRING,PLUNGER

3130006

$9.70

9

PLUNGER ASM, STARTER

3130328

$36.41

10

VALVE,THROTTLE,(1.5) (1.5)

3130494

Unavailable

11

NEEDLE JET ASM. (480)

3130429

Unavailable

12

RING,MAIN JET

3130596

Unavailable

13

SPRING,THROT.ADJ.

3130436

Unavailable

14

Washer

3130447

Unavailable

15

SCREW,THROTTLE STOP

3130009

Unavailable

16

SCREW,AIR

3130011

$19.84

17

SPRING,AIR ADJUST

3130012

$9.70

18

JET,PILOT,#35(10) (#35)

3130066

$9.70

19

SCREW & WASHER(10)

3130025

$3.17

20

Screw, Guide

3130432

$27.78

21

O RING

3130239

Unavailable

22

JET,MAIN,HX.HD#200(10) (#200)

3130123

$8.08

23

BOWL, FLOAT (350)

3130443

Unavailable

24

FLOAT ASM.

3130430

$48.40

25

CAP,(10)

3130237

$4.03

26

PACKING,FLOAT CHAMBER

3130020

$16.17

27

NEEDLE VALVE ASM.(2.5) (2.5)

3130495

$72.84

28

ARM,FLOAT

3130018

$28.32

29

PIN, FLOAT

3130361

$9.70

30

WASHER(10)

3130047

$4.84

31

ASM-CARBURETOR (Incl. 1-31)

3131297

Unavailable
