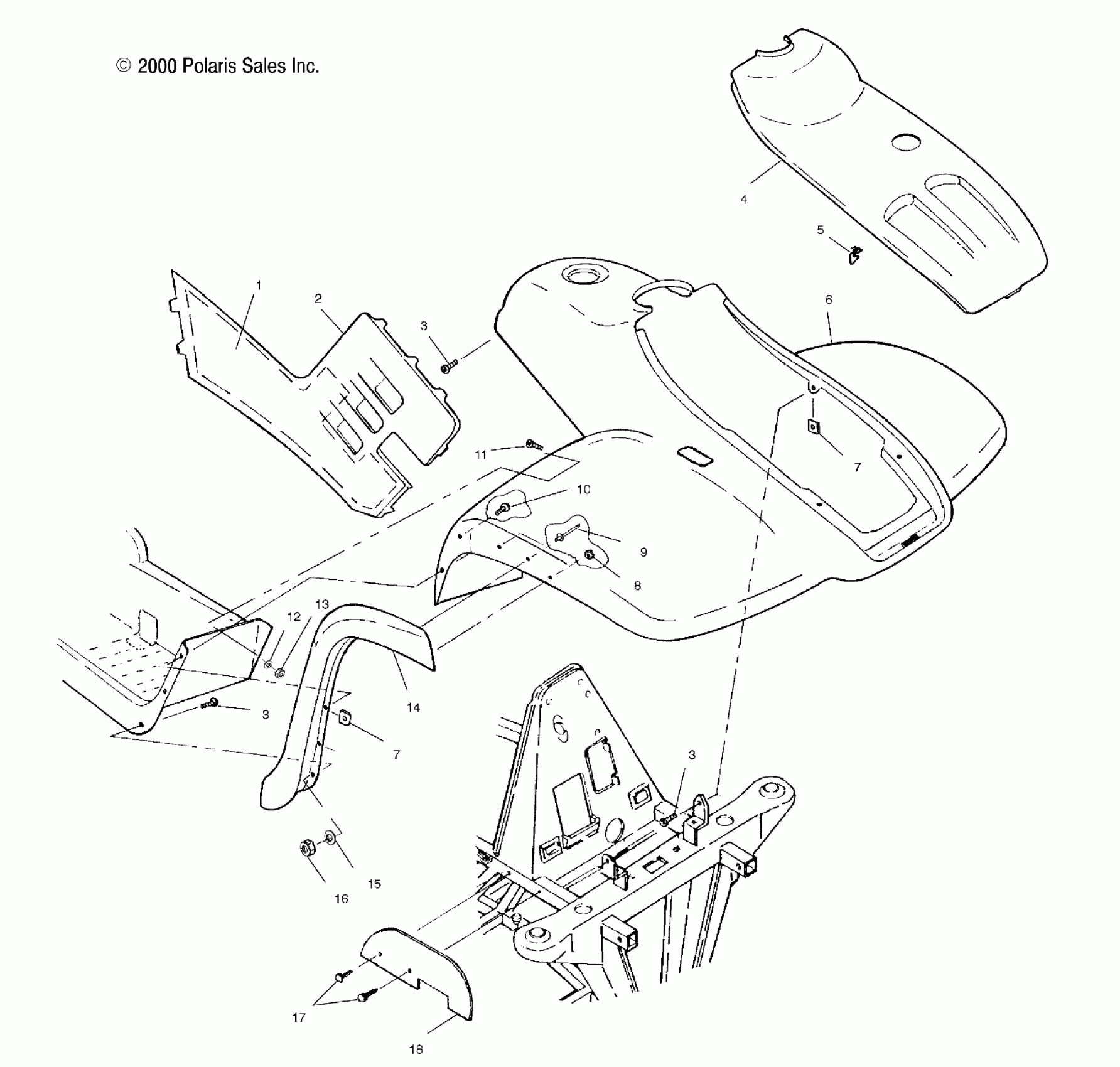

Polaris XPLORER 400 - A00CG38CA FRONT CAB - A00CG38CA (4954875487A005) Diagram

#

Description
Price

1

FOIL,RH,SIDEPANEL,GEN IV

5811491

Unavailable

1

FOIL,FOAM,SIDEPANEL

5810996

$56.65

2

PANEL,LH,SIDE,E.B.GRN.

5431809-195

Unavailable

2

PANEL/FOIL ASM,RH,EB GREEN (Incl. Foil and Foam)

2620085-195

Unavailable

3

BOLT(10)

7512232

$1.19

3

BOLT(10)

7512232

$1.19

3

BOLT(10)

7512232

$1.19

4

COVER,FR,E.B.GRN.

5431806-195

$115.08

5

CLIP,SPRING(10)

7670085

$12.34

6

CAB,FRONT GREEN Substituted by 2632303-195 (Incl. Warning Decals)

2631990-195

Unavailable

7

NUT, SPEED(10)

7670057

$1.19

7

NUT, SPEED(10)

7670057

$1.19

8

PALNUT(10)

7670009

$2.38

9

RIVET(50)

7661645

Unavailable

10

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.19

11

SCREW(10) Substituted by 7511989

7512085

Unavailable

12

WASHER(10)

7555792

$4.76

13

NUT(10)

7541925

$0.79

14

MUDGUARD,LH,FRT.BLK. Substituted by 5431798-070

5431798

$79.99

14

MUDGUARD,RH,FRT.BLK. Substituted by 5431799-070

5431799

$84.99

15

WASHER(10) Substituted by 7558221

7555931

$2.38

16

NUT-LOCK(10)

7542122

$1.19

17

CLIP-PLASTIC DART, NYLON

7670088

$1.59

18

SHIELD,DEFLECTOR Substituted by 5811917

5811489

$7.38

18

SHIELD,LH,DEFLECTOR

5811512

Unavailable
