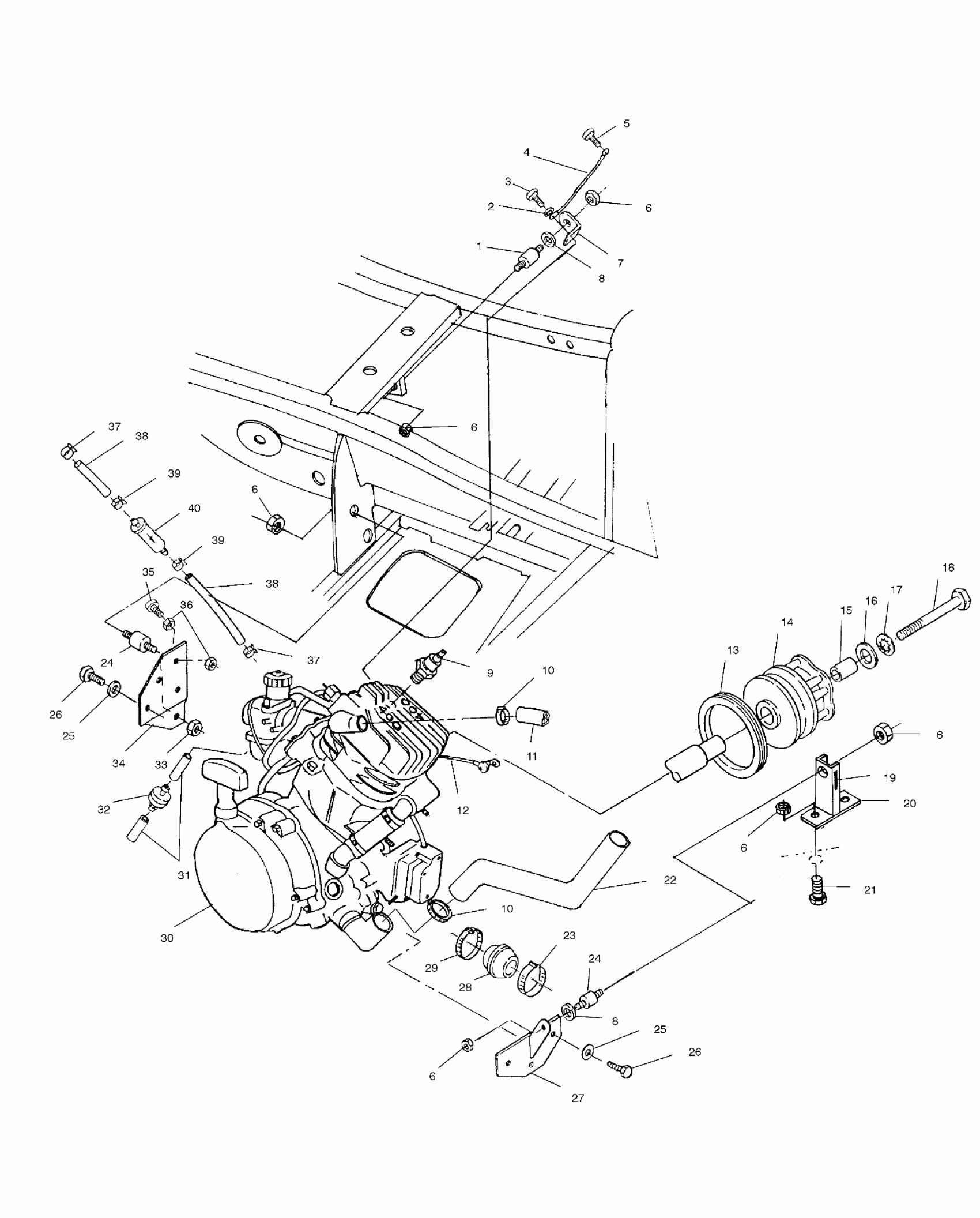

Polaris XPLORER 400 - A00CG38CA ENGINE MOUNTING - A00CG38CA (4954875487A011) Diagram

#

Description
Price

1

MT.,RUBBER,ENG.

3110038

Unavailable

2

LOCK WASHER(10)

7552901

$1.49

3

BOLT(10)

7512315

$4.79

4

CABLE,GND-ENGINE

4010132

Unavailable

5

BOLT(10)

7512232

$1.49

6

NUT

7547108

$4.79

6

NUT

7547108

$4.79

6

NUT

7547108

$4.79

6

NUT

7547108

$4.79

6

NUT

7547108

$4.79

6

NUT

7547108

$4.79

7

BRKT,ENG.MT,TOP,BLK,400

5242692-067

Unavailable

8

WASHER(10)

7555823

$3.99

8

WASHER(10)

7555823

$3.99

9

SPARKPLUG (10)

3070156

$3.99

10

CLAMP,HOSE,(10)

7080614

$7.19

10

CLAMP,HOSE,(10)

7080614

$7.19

11

HOSE,ENG,UPPER

5410570

$44.51

12

CABLE-RED,SOL/STRTR,DBLBOOT34"

4010218

$47.99

13

Seal, Cover Case (See Clutch Cover Pg. C9, Ref. 1)

-------

Unavailable

14

Asm., Drive Clutch, Basic ATV-06 (See Drive Clutch Pg. C7, Ref. 14)

-------

Unavailable

15

BUSHING-.437 X.770 X.50

5430261

$7.19

16

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

17

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

18

BOLT(10)

7512566

$30.79

19

EDGE TRIM-BLACK,04 CM

8360012-04

Unavailable

20

MOUNT,FR.ENGINE,BLK.

1040687-067

$15.56

21

SCREW ,(10)

7517289

$4.79

22

HOSE,FORMED,3/4X21.75,W/ CHAFE

5411637

Unavailable

23

CLAMP, NARROW BAND(10)

7080511

$4.79

24

MOUNT,RUBBER,ENG.

3110042

Unavailable

24

MOUNT,RUBBER,ENG.

3110042

Unavailable

25

WASHER(10)

7552603

$1.49

25

WASHER(10)

7552603

$1.49

26

SCREW(10)

7512490

$3.99

26

SCREW(10)

7512490

$3.99

27

MOUNT,ENGINE

1040231-067

Unavailable

28

BOOT,CLUTCH INLET,2.4X2.1X5.2

5411681

Unavailable

29

CLAMP,BAND,NARROW

7080656

Unavailable

30

ENG.EC38PLE08,09,11 [No Longer Available] (EC38PLE08) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior aut

3085821

Unavailable

31

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

32

VENT,CHECKVALVE

7051011

Unavailable

33

NUT LOCK(10)

7542411

$3.19

34

BRKT,ENG.MT,REAR,BLK

5242463-067

$56.99

35

MT,TORQUE STOP,RUBBER

3110048

$7.43

36

NUT, JAM(10)

7542432

$3.99

37

HOSE CLAMP, RED

7080003

$1.49

37

HOSE CLAMP, RED

7080003

$1.49

38

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

38

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

39

CLAMP,SPRING,(10)

7080534

$1.59

39

CLAMP,SPRING,(10)

7080534

$1.59

40

FILTER FUEL,(10)

2530008

$4.84
