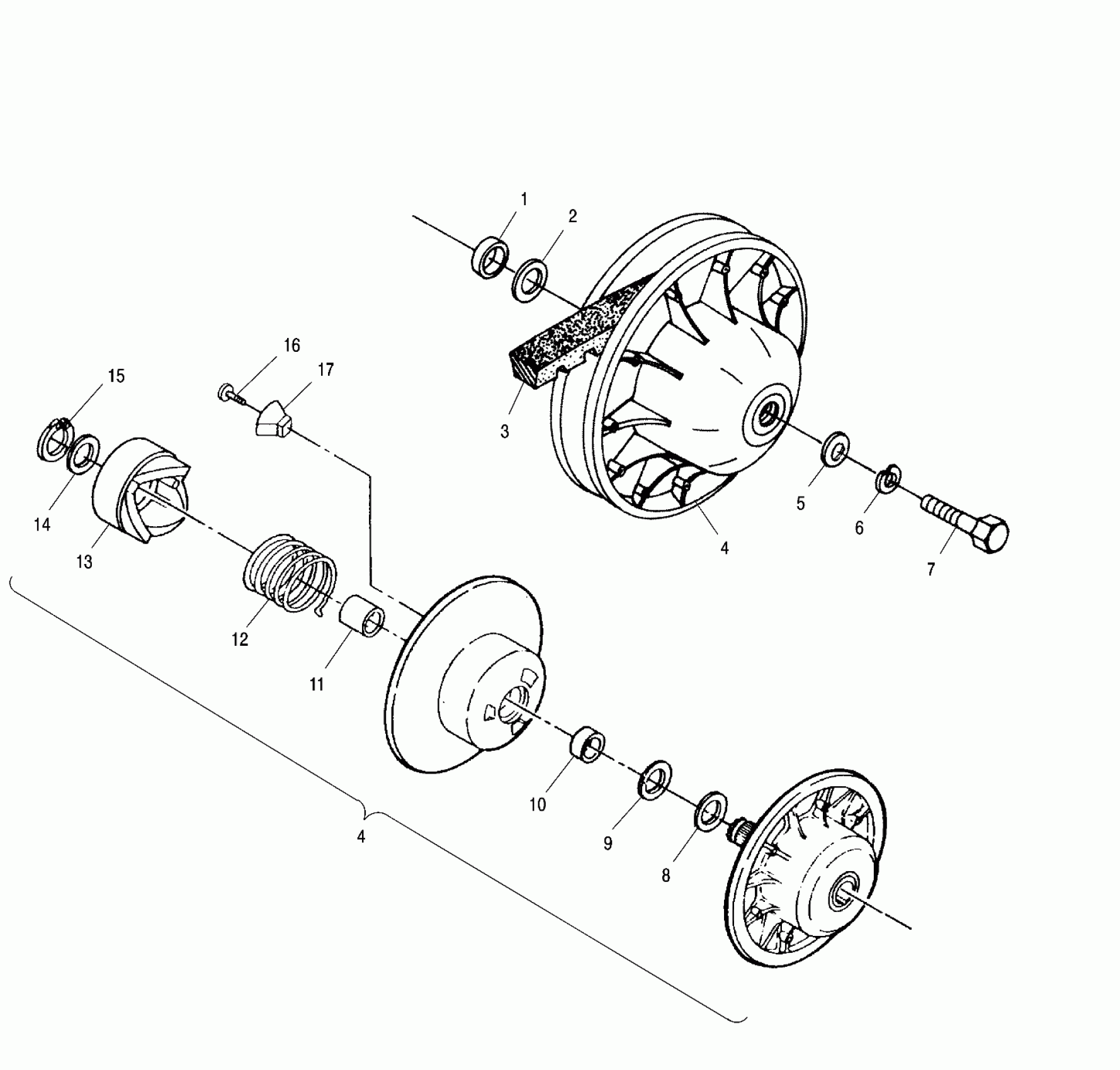

Polaris XPLORER 400 - A00CG38CA DRIVEN CLUTCH - A00CG38CA (4954875487C008) Diagram

SPACER Substituted by 5010379

5010266

Unavailable

BUSHING(10)

7556401

Unavailable

BELT,DRIVE,ATV,CLOSE TOL(5)

3211077

$63.99

CLUTCH,DRVN,3-ANGLE,HVY RET (Incl. 8-11,14-17)

1322182

$614.99

CLUTCH,DRVN,3-ANGLE,HVY RET (Incl. 8-11,14-17)

1322182

$614.99

WASHER, DOMED(10)

5220646

$2.39

LOCK WASHER(10)

7552901

$1.49

BOLT(10)

7515382

$2.39

WASHER(10) (.020 )

7555898

Unavailable

WASHER(10) (.025 )

7556076

Unavailable

WASHER(10) (.030)

7556804

Unavailable

BUSHING, DRIVEN (1/2 Inch)

3576504

$23.99

BUSHING-MOVEABLE, 1.0 DU (1 Inch)

3576511

$27.99

SPRING,CLUTCH,(RED)

7041198

$52.60

RAMP,STA,COMP (MACH) (If built after 9/23/99)

5132344

$79.99

RAMP,STA.MACH,COMP MOD,HVY RET Substituted by 5132344 (If built before 9/23/99)

5131447

$77.21

SPACER(10)

5210752

$1.59

RING,RET.

7710448

$3.19

BOLT(10)

7511854

$1.49

BUTTON,RAMP

5430766

Unavailable
