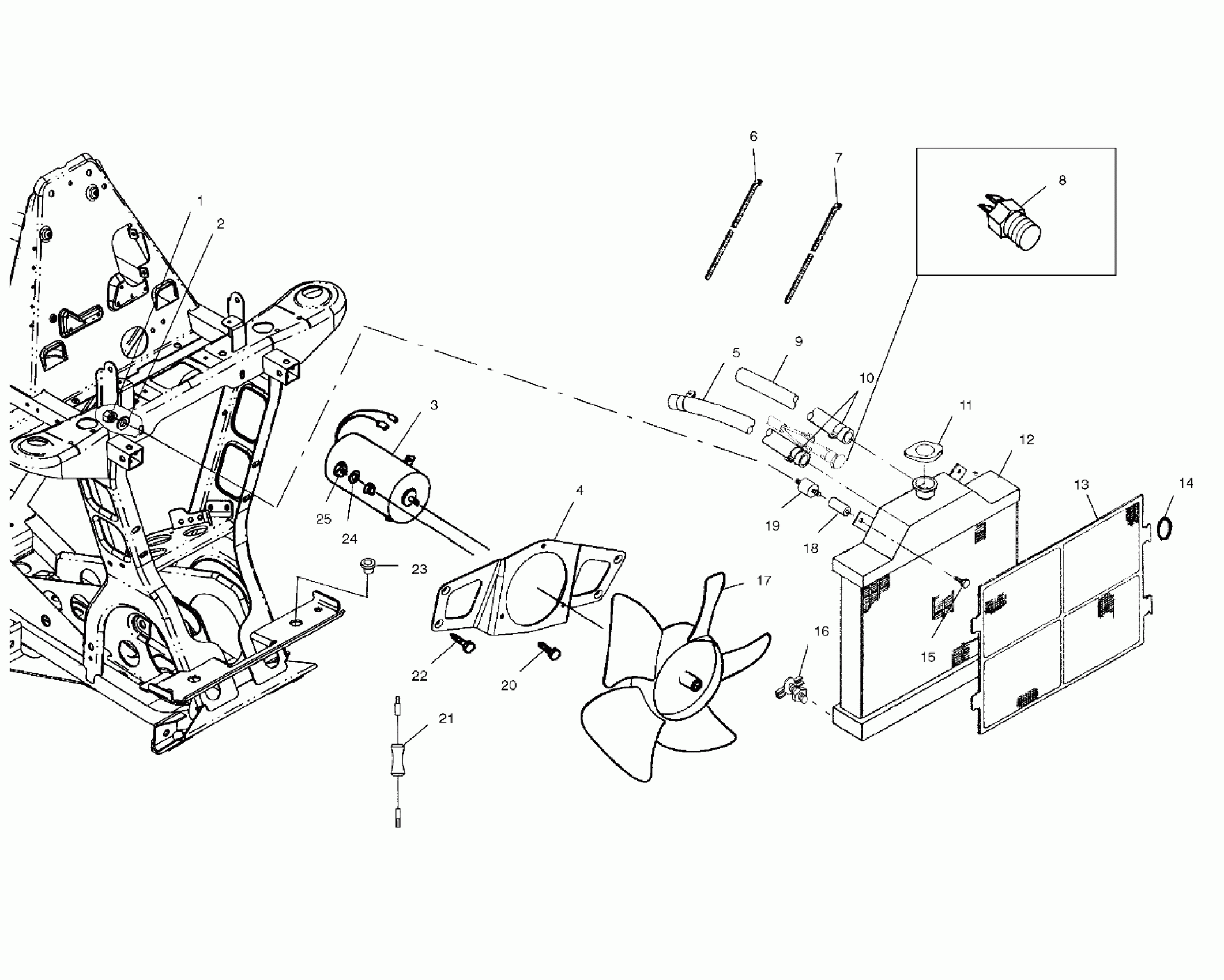

Polaris XPLORER 400 - A00CG38CA COOLING SYSTEM - A00CG38CA (4954875487A010) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542122

$1.49

2

WASHER(10)

7558301

$1.49

3

MOTOR,FAN,LIQ,D-SHAFT,CONN (Incl. Hardware)

4170013

Unavailable

4

BRKT.COOL.FAN,BLK

5241355-067

Unavailable

5

Hose, Engine, Lower (See Engine Mounting Pg. A12, Ref. 22)

-------

Unavailable

6

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

SWITCH,THERMAL,FAN,L/C

4110225

Unavailable

9

Hose, Engine, Upper (See Engine Mounting Pg. A12, Ref. 11)

-------

Unavailable

10

CLAMP,HOSE,(10)

7080614

$7.19

11

CAP, RADIATOR Substituted by 2511270

2511189

Unavailable

12

RADIATOR,"U"FLOW

1240015

Unavailable

13

COVER,RADIATOR,W/MESH

5431760

Unavailable

14

O RING

5410607

$5.99

15

SCREW(10)

7515133

$3.99

16

VALVE,DRAIN COCK

7052181

Unavailable

17

BLADE,FAN,NYLON,8"

5242550

Unavailable

18

Spacer, Mount

5020572

$8.79

19

Mount, Rubber

3110032

$7.99

20

SCREW

7517475

Unavailable

21

BREAKER,CIRCUT,10A,FAN [No Longer Available]

4010369

$68.79

22

BOLT(10)

7512232

$1.49

23

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

24

WASHER, FLAT(10)

7558201

$5.79

25

Nut

7547004

$4.79
