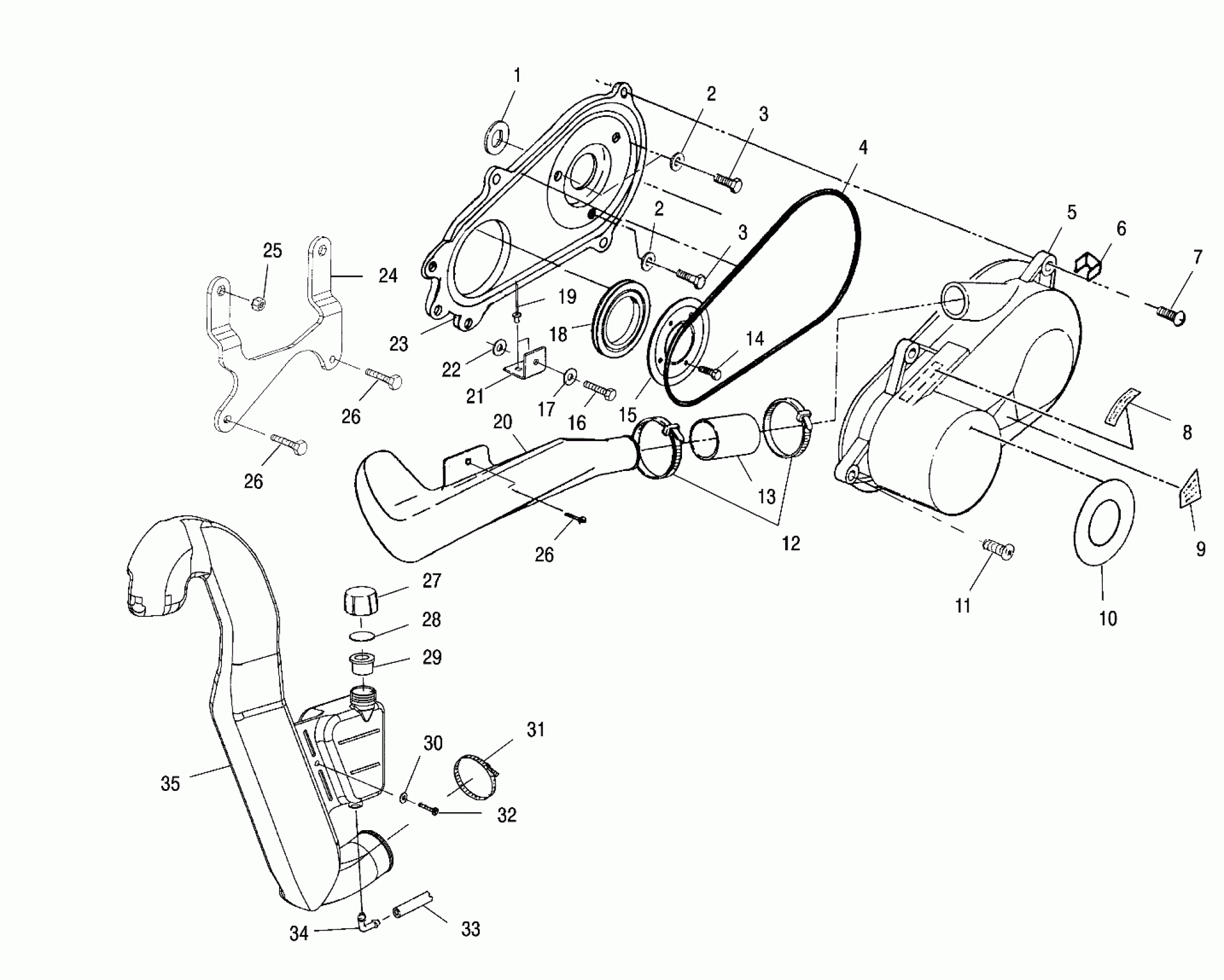

Polaris XPLORER 400 - A00CG38CA CLUTCH COVER - A00CG38CA (4954875487C009) Diagram

#

Description
Price

1

SEAL,CLUTCH CVR,INNER

5411554

Unavailable

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

3

SCREW (10)

7517542

$6.23

3

SCREW (10)

7517542

$6.23

4

SEAL,CLUTCHCOVER

5521301

$30.88

5

COVER-CLUTCH,FRONT,ST-801HS

5433542

$179.99

6

CLIP,CLUTCH COVER(10)

7670051

$2.99

7

SCREW(10)

7512093

$1.49

8

DECAL,WARNING,CLUTCH CVR

7078689

Unavailable

9

DECAL,ENG/CLUTCH MOD. Substituted by 7078689

7077377

Unavailable

10

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

11

SCREW(10)

7512094

$1.59

12

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

13

BOOT,CLUTCH INTAKE

5410421

$11.19

14

Screw and Washer (See Crankcase and Cylinder Pg. D4, Ref. 58)

-------

Unavailable

15

BRKT,RETAINER,SEAL

5222446-067

Unavailable

16

Screw

7512098

$1.59

17

WASHER(10)

7555935

$2.39

18

Seal, Cover Case

5410575

Unavailable

19

RIVET,INTERLOCK,B(50)

7661638

$1.49

20

DUCT,AIR OUT,CLUTCH

5432615

Unavailable

21

BRKT,CLUTCH COVER,BLK

5242693-067

Unavailable

22

WASHER,NYLON

7555932

$2.39

23

COVER,CLUTCH INNER 400 (Incl. 4,7,11,16,18)

2201159

$141.65

24

BRKT,CLUTCH,LOW,BLK

5242208-067

Unavailable

25

NUTSERT,HEX

7547067

$6.23

26

BOLT(10)

7512232

$1.49

26

BOLT(10)

7512232

$1.49

26

BOLT(10)

7512232

$1.49

27

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

28

GASKET-OVERFLOW CAP

5810279

$2.41

29

PLUG,CAP Substituted by 5433774

5431895

Unavailable

30

WASHER(10)

7555783

$3.99

31

CLAMP, NARROW BAND(10)

7080511

$4.79

32

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

33

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

34

FITTING,90 DEGREE

7052065

$7.19

35

DUCT,CLUTCH INLET,HYBRID

5433342

Unavailable
