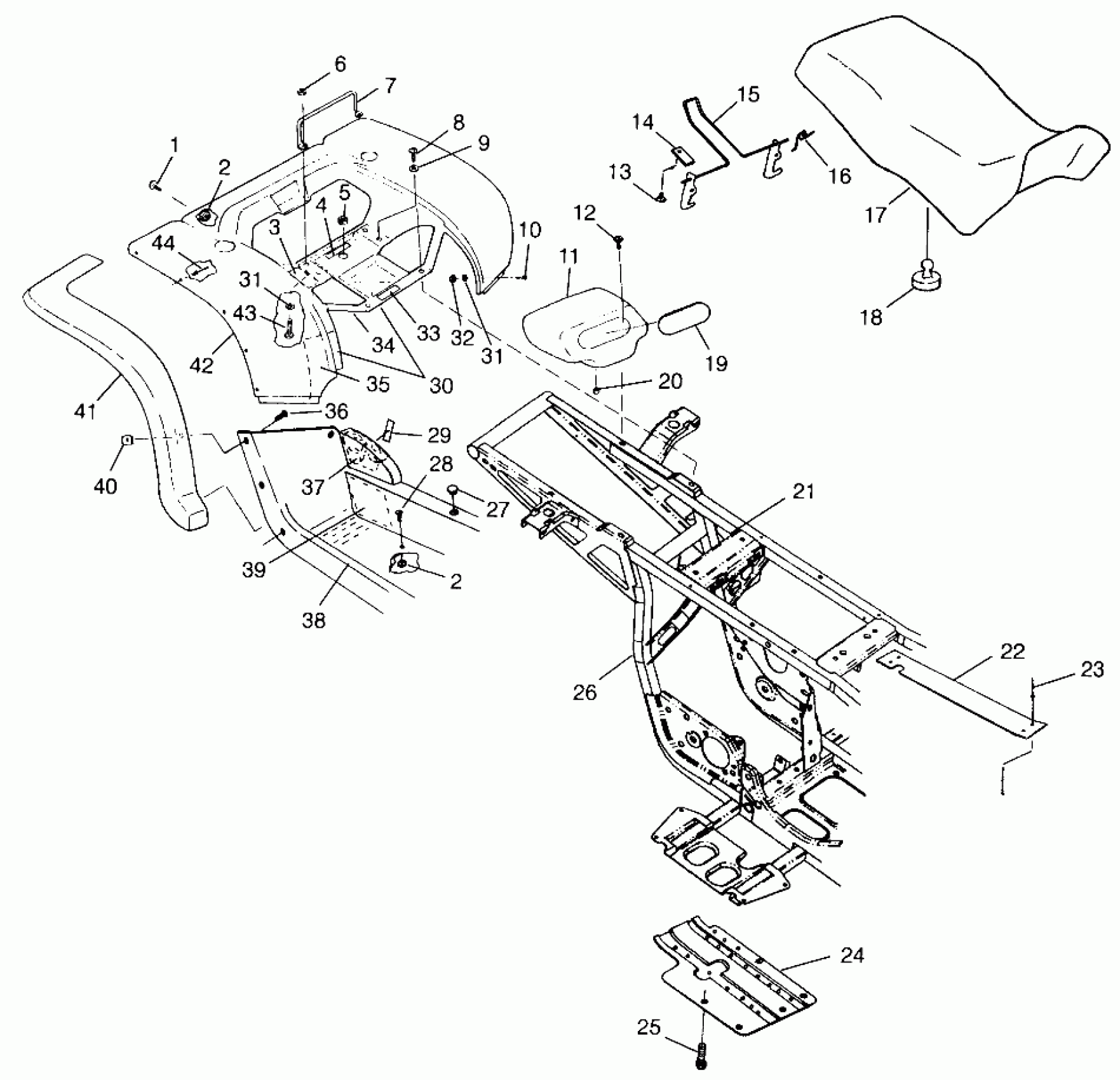

Polaris XPLORER 300 - W97CC28C REAR CAB and SEAT XPLORER 300 W97CC28C (4939813981A005) Diagram

#

Description
Price

1

Screw

7517264

$3.97

2

NUT-LOCK(10)

7542122

$1.19

2

NUT-LOCK(10)

7542122

$1.19

3

FOIL,REAR CAB,REAR

5811107

Unavailable

4

DECAL,CARB.INFO.

7073761

Unavailable

5

Grommet

5411042

$6.35

6

NUT(10)

7541925

$0.79

7

RETAINER,SEAT LATCH

5224592

Unavailable

8

SCREW(10)

7515180

Unavailable

9

WASHER, FLAT(10)

7555859

$1.19

10

SCREW(10) Substituted by 7511989

7512085

Unavailable

11

TOOLBOX

5431786

$53.17

12

SCREW Substituted by 7555748

7517375

$1.19

13

BLIND RIVET(50)

7621403

$1.19

14

BRACKET,LEVER RETAINER

5211033

$34.99

15

LATCH,SEAT

1040387

$48.56

16

SPRING, LATCH

7041370

$9.52

17

FOIL,SEATBASE,LG.

5811104

Unavailable

17

FOIL,SEATBASE,SM.

5811105

$9.84

17

COVER,SEAT,BURN.BRN.

2681747-218

$149.75

17

SEAT ASM,BURN.BROWN Substituted by 2682360-218 (Incl. 13-18)

2682201-218

$445.22

18

Bumper, Rubber

5410414

$3.17

19

COVER, TOOLBOX

5431787

Unavailable

20

CAP,DRAIN

5410896

$5.65

21

TAB-AIRBOX MOUNT

5241418

Unavailable

22

GUARD-CLUTCH, BLK

5241403-067

$5.71

23

RIVET,INTERLOCK,B(50)

7661638

$1.19

24

GUARD,ROCK,BLK

5242016-067

Unavailable

25

SCREW(10)

7512252

Unavailable

26

FRAME,MAIN,XPLR.300,BLK

1040544-067

Unavailable

27

PLUG, HOLE

5411009

Unavailable

28

SCREW(10)

7512279

$0.79

29

FOIL,FOOTWELL,RIB [No Longer Available]

5811401

Unavailable

30

FOIL,FR,REAR CAB

5811106

Unavailable

31

WASHER(10)

7555792

$4.76

31

WASHER(10)

7555792

$4.76

32

NUT, LOCK(10) Substituted by 7541925

7541929

$0.79

33

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

34

FOIL-FOAM,(6X1)

5811087

Unavailable

35

FOIL FOAM

5811111

Unavailable

36

BOLT(10)

7512232

$1.19

37

FOIL,FOOTWELL,SLOTTED [No Longer Available]

5811399

Unavailable

38

FOOTWELL,LH Substituted by 5432056-070

5431771-070

$230.70

38

FOOTWELL,RH Substituted by 5432057-070

5431772-070

Unavailable

39

FOIL,FOOTWELL [No Longer Available]

5811402

Unavailable

40

NUT, SPEED(10)

7670057

$1.19

41

MUDGUARD,LH,R.BLK. Substituted by 5431796-070

5431796

Unavailable

41

MUDGUARD,RH,R.BLK. Substituted by 5431797-070

5431797

Unavailable

42

CAB,REAR,GEN IV,EB.GRN.

5432663-195

Unavailable

43

SCREW(10)

7511930

$2.38

44

RIVET(50)

7661645

Unavailable
