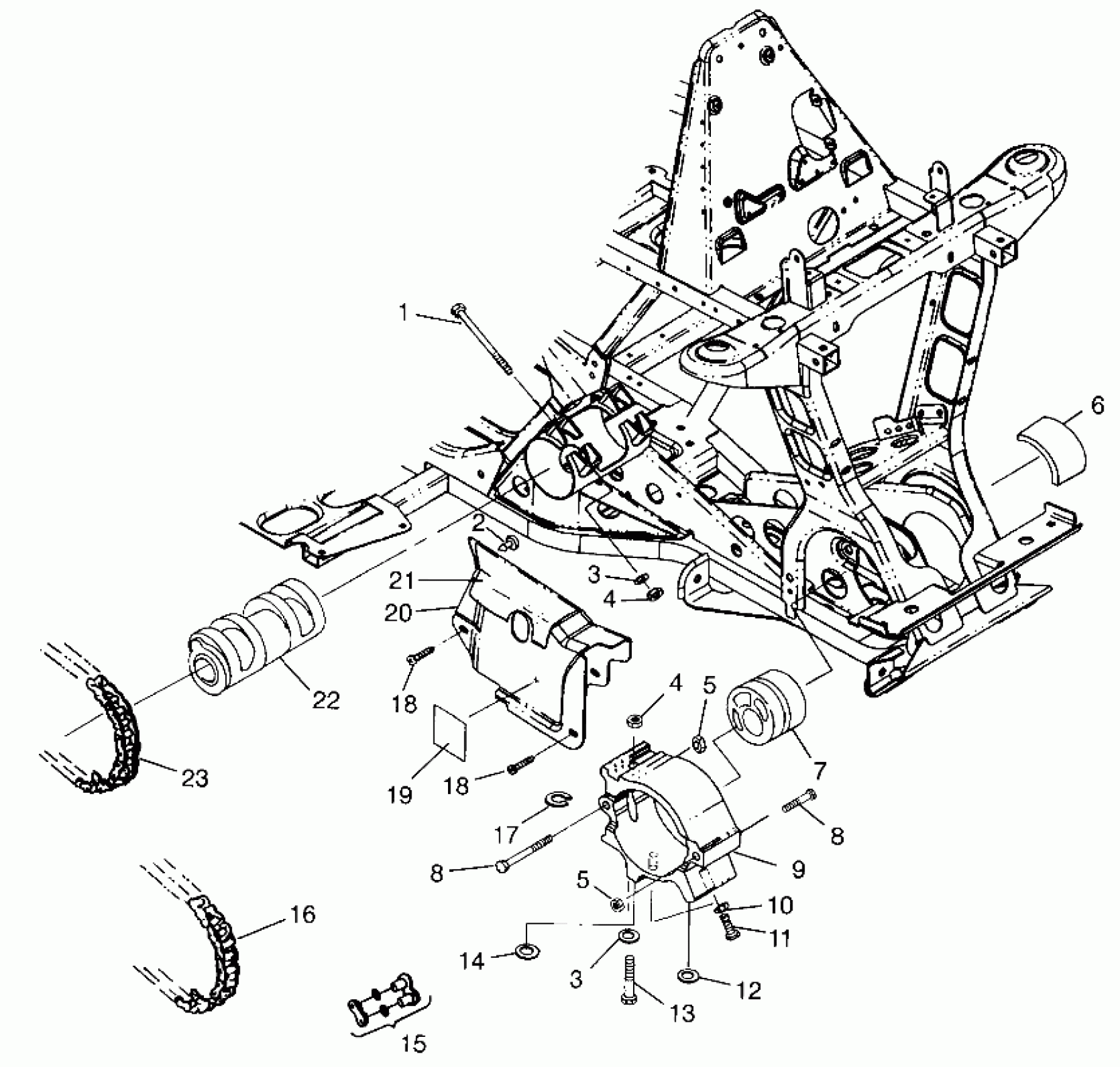

Polaris XPLORER 300 - W97CC28C FRONT DRIVE XPLORER 300 W97CC28C (4939813981B003) Diagram

#

Description
Price

1

BOLT(10)

7512583

Unavailable

2

CLIP,X-MAS TREE

7670101

$2.38

3

WASHER(10)

7555883

$3.97

3

WASHER(10)

7555883

$3.97

4

NUT, LOCK,(10)

7542503

$10.32

4

NUT, LOCK,(10)

7542503

$10.32

5

NUT(10)

7542423

$3.97

5

NUT(10)

7542423

$3.97

6

SPACER,F.ECCENTRIC

5811519

Unavailable

7

Asm., Front Tightener (See Pg. NO TAG For Details)

----

Unavailable

8

SCREW

7517303

Unavailable

8

SCREW

7517303

Unavailable

9

CLAMP,FR.ECCENTRIC

5131379

Unavailable

10

WASHER(10)

7552603

$0.79

11

BOLT(10)

7515522

$3.97

12

WASHER, THRUST(10) Substituted by 7555871

7555787

$5.56

13

SCREW

7517304

Unavailable

14

WASHER Substituted by 7555720

7555784

$0.79

15

CONNECTOR LINK

3225024

$24.27

16

CHAIN, DRIVE Substituted by 3224056-064 (Incl. 15)

3224041

$105.22

17

SHIM,(.030) (.030)

5211517

$34.99

18

SCREW(10)

7512252

Unavailable

18

SCREW(10)

7512252

Unavailable

19

DECAL,FR.CHAIN TENSION

7074956

Unavailable

20

GUARD,FR.CHAIN

5432572

Unavailable

21

FOIL,CHAINGUARD

5811502

Unavailable

22

Asm., Center Tightener (See Pg. NO TAG For Details)

----

Unavailable

23

CHAIN, DRIVE Substituted by 3224056-070 (Incl. 15)

3224044

$113.32
