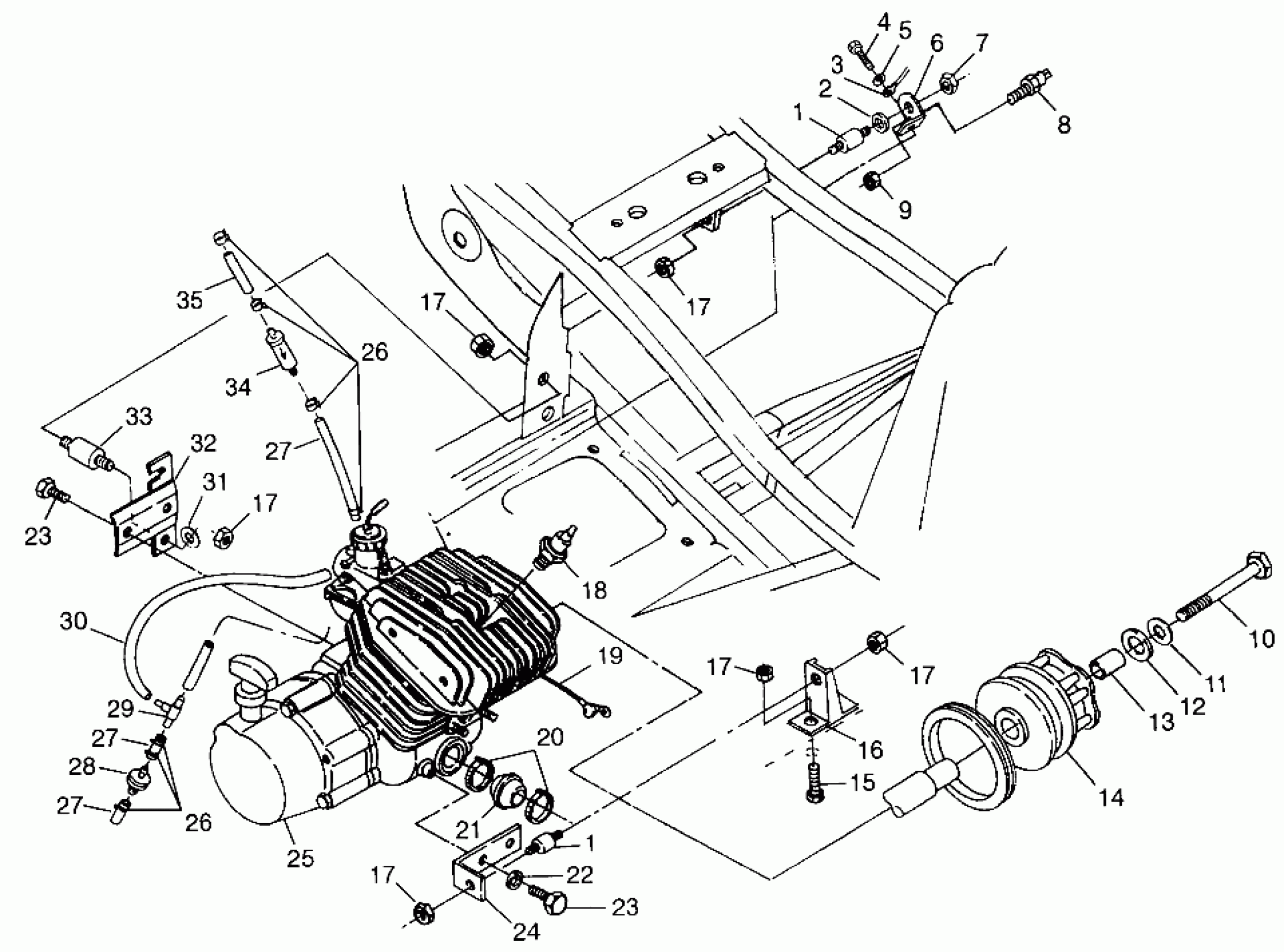

Polaris XPLORER 300 - W97CC28C ENGINE MOUNTING XPLORER 300 W97CC28C (4939813981A011) Diagram

#

Description
Price

1

MOUNT,MOTOR

3110026

Unavailable

1

MOUNT,MOTOR

3110026

Unavailable

2

INSULATOR,MOTOR MT.

5430802

$27.99

3

CABLE,GND-ENGINE

4010132

Unavailable

4

BOLT(10)

7515321

$1.49

5

LOCK WASHER(10)

7552901

$1.49

6

MOUNT,ENG,TOP

5241799-067

Unavailable

7

NUT LOCK(10)

7542411

$3.19

8

THERMOSTAT,COOL.FAN Substituted by 4010211

4110114

Unavailable

9

NUT FLEX LOC(10)

7541906

$3.19

10

BOLT(10)

7512566

$30.79

11

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

12

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

13

BUSHING-.437 X.770 X.50

5430261

$7.19

14

Asm., Drive Clutch, ATV-06 (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

15

BOLT(10)

7512457

$3.99

16

MOUNT,ENG,LOW,BLK

1040532-067

Unavailable

17

NUT LOCK(10)

7542403

$3.99

17

NUT LOCK(10)

7542403

$3.99

17

NUT LOCK(10)

7542403

$3.99

17

NUT LOCK(10)

7542403

$3.99

17

NUT LOCK(10)

7542403

$3.99

17

NUT LOCK(10)

7542403

$3.99

18

SPARKPLUG (10)

3070156

$3.99

19

Cable, Solenoid Starter (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

20

CLAMP, NARROW BAND(10)

7080511

$4.79

21

BOOT,CLUTCH INTAKE

5410421

$11.19

22

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

23

SCREW(10)

7512490

$3.99

23

SCREW(10)

7512490

$3.99

24

MT,FR.ENGINE,300,BLK.

5242229-067

Unavailable

25

ENG.(S.B.)EC28PF-SB Substituted by 1211654 NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization requi

3084720

Unavailable

26

HOSE CLAMP, RED

7080003

$1.49

26

HOSE CLAMP, RED

7080003

$1.49

27

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

27

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

27

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

28

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

29

Fitting, Tee

7052005

Unavailable

30

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

31

WASHER(10)

7555806

$1.49

32

MT,REAR,(300),BLK.

5241176-067

Unavailable

33

MOUNT, MOTOR

3110028

Unavailable

34

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

35

HOSE,FUEL,1/4 IN.

5411272

Unavailable
