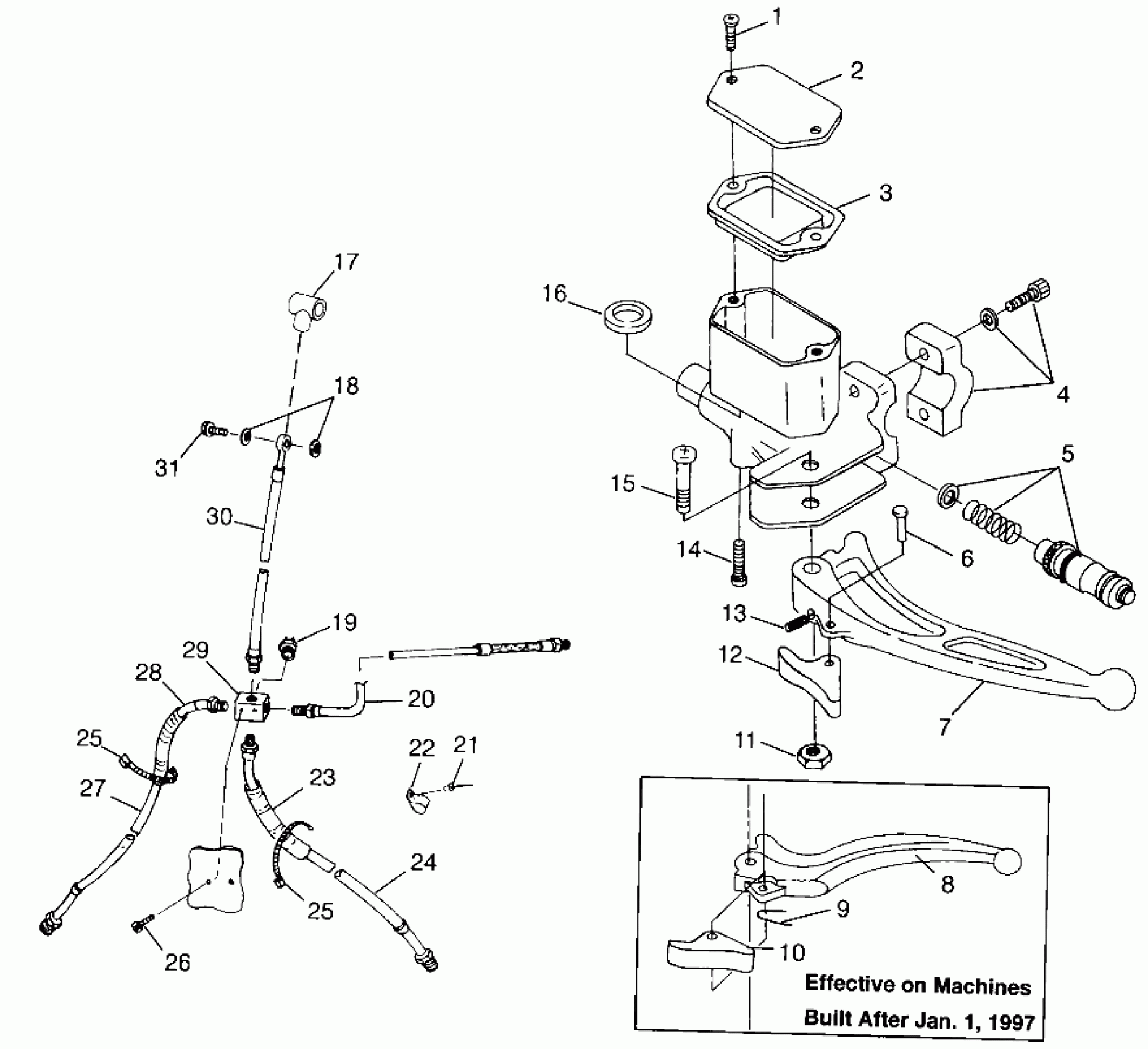

Polaris XPLORER 300 - W97CC28C CONTROLS - MASTER CYLINDER/BRAKE LINE XPLORER 300 W97CC28C (4939813981B010) Diagram

#

Description
Price

-

MASTER CYL.ASM,3/4"BANJO (Incl. 1-16)

2050078

$243.99

-

KIT,MASTER CYL RES. (Incl. 1-3, 16)

2200809

$68.79

1

KIT,BOLT(2),RES.CAP,MCYL

1930797

$11.19

2

CAP,M.CYL.RES.

1930796

Unavailable

3

DIAPHRAGM,M.CYL.RES.

1930795

$44.51

4

KIT,M.CYL.CLAMP

2200808

Unavailable

5

KIT,M.CYL.REBUILD Substituted by 1930799

2200810

$89.03

6

Rivet

1930804

Unavailable

7

KIT,M.CYL LEVER Substituted by 2201034 (Incl. 6, 12, 13)

2200811

$61.77

8

KIT,LEVER (Incl. 6, 9, 10)

2201034

$63.99

9

SPRING, FLAT

-------

Unavailable

10

KIT,LEVER,PARKBRAKE (Incl. 6, 9)

2201090

$40.46

11

NUT,M.CYL.HANDLE PIVOT

1930806

Unavailable

12

LEVER,PARKBRAKE Substituted by 2201034

1930802

$61.77

13

SPRING,PARKING BRAKE Substituted by 2201034

1930803

$61.77

14

BOLT,MCYL.RESERVOIR,KIT

1930792

$23.99

15

BOLT,M.CYL.HANDLE PIVOT

1930805

Unavailable

16

Ring, Square, Master Cylinder

-------

Unavailable

17

BOOT,BRAKELINE,RUBBER

5411297

$2.07

18

Seal

5410988

$4.84

19

SWITCH,STOPLIGHT

4110164

Unavailable

20

LINE,BRAKE,REAR

1930751

Unavailable

21

RIVET(50)

7621462

$1.49

22

CLAMP,NYLON,CABLE(10)

7080539

$4.79

23

CONDUIT, 30 CM. Substituted by 8360011-34

8360031-30

Unavailable

24

LINE,BRAKE,LH,FR,W/FITTINGS

1930752

$87.99

25

STRAP, BLK

7080272

Unavailable

25

STRAP, BLK

7080272

Unavailable

26

SCREW(10)

7512027

$1.49

27

CONDUIT, 38 CM.

8360031-38

$2.63

28

LINE,BRAKE,RH,FR.W/FITTINGS

1930753

$87.99

29

FITTING,CROSS INVERT.FLARE

7052103

Unavailable

30

LINE,HYD.BRAKE Substituted by 1930816

1930777

Unavailable

31

BOLT,BANJO,BRAKE

1930674

Unavailable
