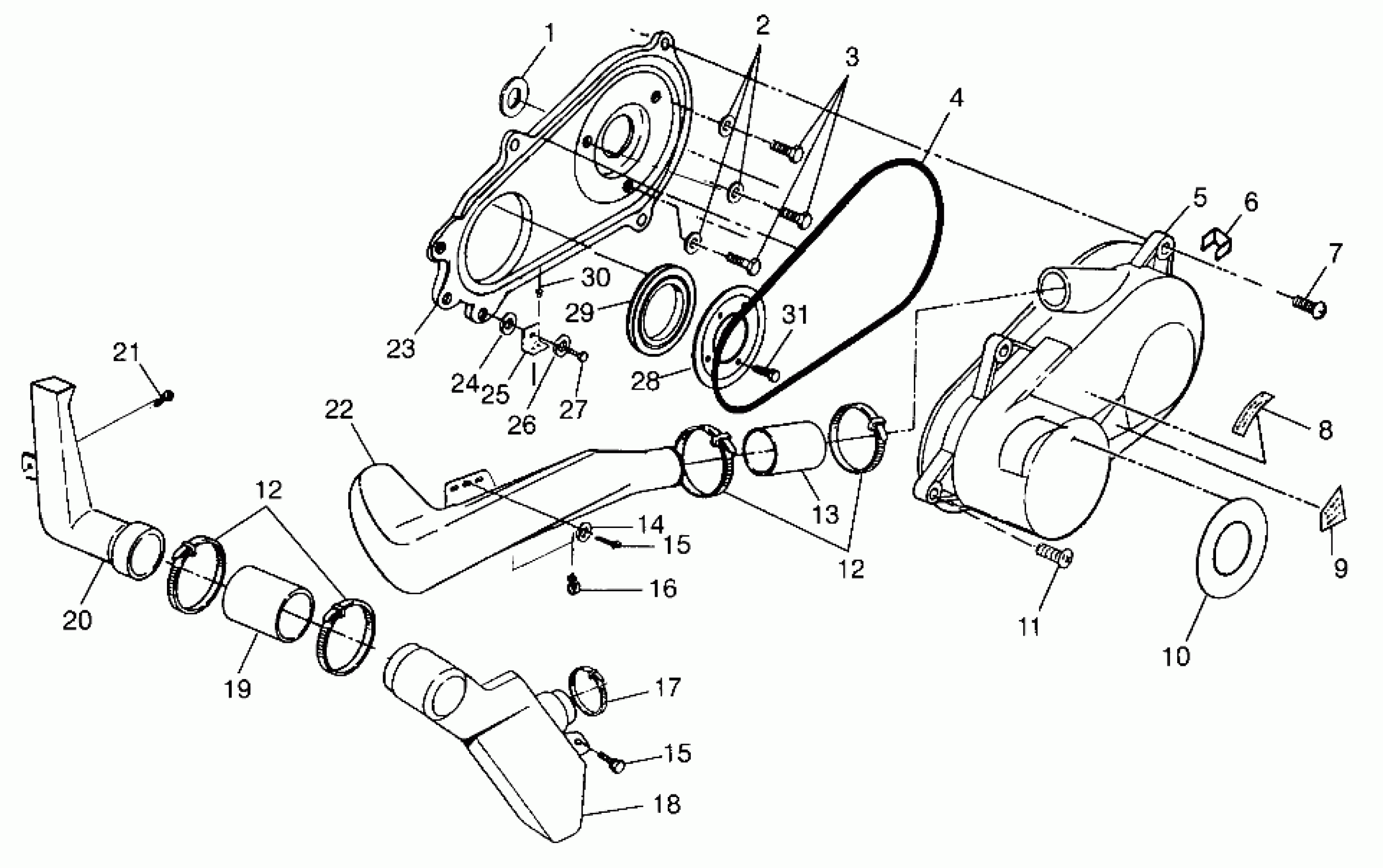

Polaris XPLORER 300 - W97CC28C CLUTCH COVER XPLORER 300 W97CC28C (4939813981C004) Diagram

#

Description
Price

1

SEAL,COVER CASE

5410489

$13.75

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

3

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.19

4

SEAL,CLUTCHCOVER

5521301

$32.37

5

COVER,CLUTCH,FRONT Substituted by 5433542

5431961

$190.22

6

CLIP,CLUTCH COVER(10)

7670051

Unavailable

7

SCREW(10)

7512093

$1.19

8

DECAL,CLUTCH COVER Substituted by 7078689

7074946

Unavailable

9

DECAL(CPSC),ENG/CLUTCH MOD. [No Longer Available]

7072789

Unavailable

10

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

11

SCREW(10)

7512094

$1.59

12

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

12

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

13

BOOT,CLUTCH INTAKE

5410421

$11.32

14

WASHER(10)

7555783

$3.97

15

BOLT(10)

7512232

$1.19

15

BOLT(10)

7512232

$1.19

16

CLIP,OIL LINE RET.(10)

5432302

Unavailable

17

CLAMP, NARROW BAND(10)

7080511

$4.76

18

DUCT,INLET DOWNTUBE,AIR

5432441

Unavailable

19

BOOT, INTAKE

5410509

Unavailable

20

DUCT,INLET,TOP

5431794

Unavailable

21

SCREW(10)

7512084

$1.19

22

DUCT,AIR OUT,CLUTCH

5432649

Unavailable

23

KIT,CVR,IN.CLUTCH (Incl. 7, 12, 27)

2200792

$309.99

24

WASHER,NYLON

7555932

$2.38

25

BRKT,CLUTCH COVER,BLK.

5241213-067

Unavailable

26

WASHER(10)

7555935

$2.38

27

Screw

7512098

$1.59

28

BRKT,RETAINER SEAL

5222877-067

Unavailable

29

SEAL,COVER CASE

5410749

Unavailable

30

RIVET,INTERLOCK,B(50)

7661638

$1.19

31

Screw and Washer (See Pg. NO TAG, Ref. NO TAG)

----

Unavailable
