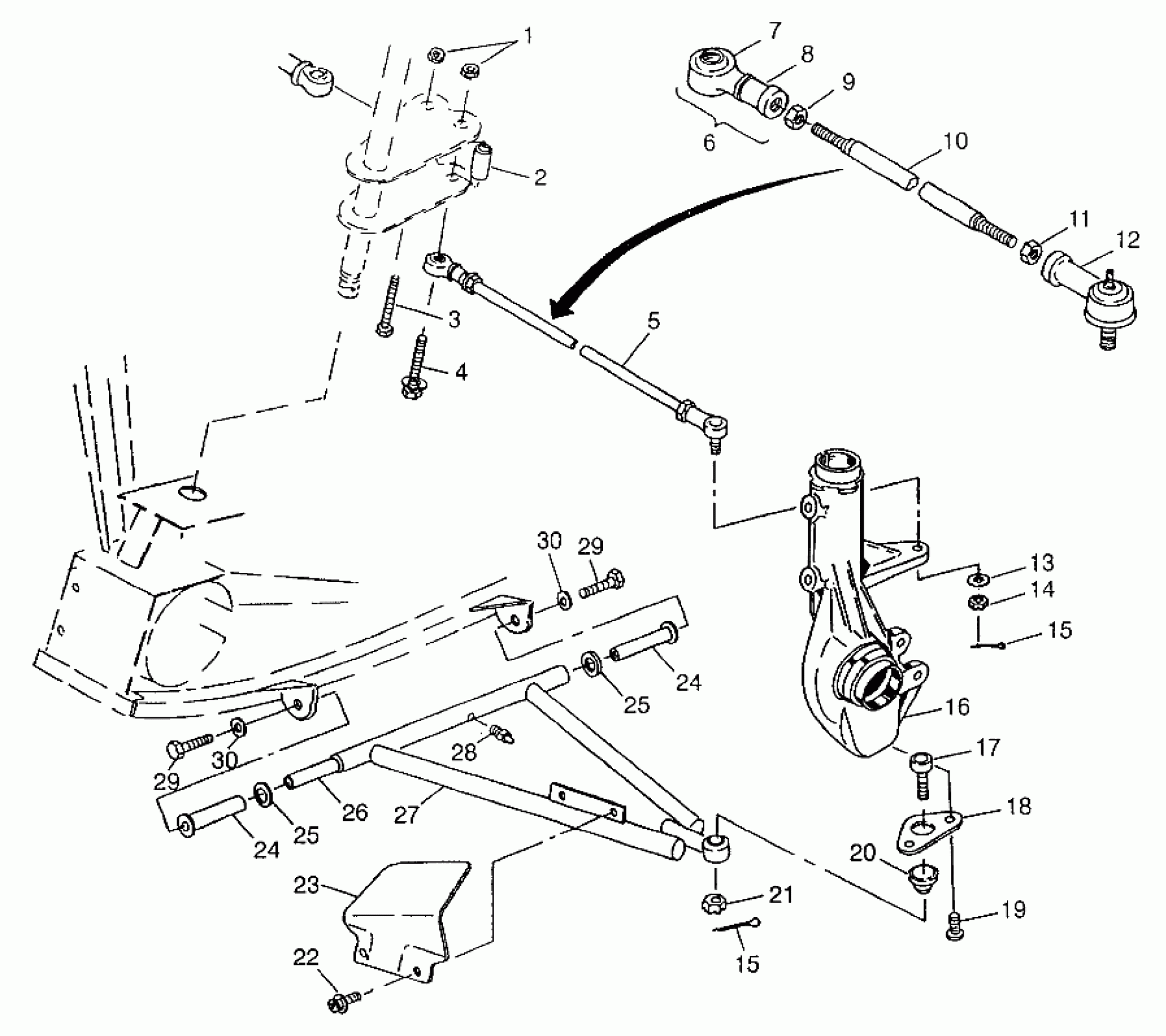

Polaris XPLORER 300 - W97CC28C A-ARM/STRUT MOUNTING XPLORER 300 W97CC28C (4939813981B013) Diagram

#

Description
Price

1

NUT LOCK(10)

7542403

Unavailable

2

BUSHING

5333367

$6.59

3

BOLT(10)

7515415

$1.19

4

SCREW(10)

7515554

Unavailable

5

TIE ROD ASM. Substituted by 1822478 (Incl. 7-12)

1822202

$165.94

6

ROD END ASM,/SEAL BOOT (Incl. 7, 8)

1822179

Unavailable

7

BOOT, SEAL, ROD END

5410540

$7.14

8

ROD END,RH.THRD.

7061015

Unavailable

9

NUT HEX(10)

7542401

$2.38

10

ROD, TIE

5020768

$53.32

11

NUT, LH, 10 MM.(10)

7546902

Unavailable

12

ROD END,LH,W/FTG,10 MM.

7060171

$60.70

13

WASHER(10)

7555806

$0.79

14

NUT, CASTLE(10)

7546904

$4.76

15

PIN COTTER(10)

7661203

$1.19

15

PIN COTTER(10)

7661203

$1.19

16

Asm., Hubstrut, Service (See Pg. A21, Ref. 23)

----

Unavailable

17

BALLJOINT,HI-ANGLE Substituted by 7080927

7080673

$28.32

18

BRACKET-BALL JOINT

5211121

$32.37

19

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.19

20

Boot, Rubber

5410548

$4.84

21

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

22

SCREW(10)

7512084

$1.19

23

SHIELD,RH CV JOINT Substituted by 5431149-070

5431149

$24.27

23

SHIELD,LH CV JOINT Substituted by 5431150-070

5431150

$24.27

24

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

$5.56

24

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

$5.56

25

BUSHING,A-ARM SPACER(10)

5020677

$10.32

25

BUSHING,A-ARM SPACER(10)

5020677

$10.32

26

Shaft, A-Arm

5020681

$33.24

27

KIT,A-FRAME,LH Substituted by 2200627 (Incl. 15, 24, 25, 28-30)

2200531

$151.99

27

KIT,A-FRAME,RH Substituted by 2200628 (Incl. 15, 24, 25, 28-30)

2200532

$151.99

28

ZERK,FITTING,THREADED(10)

7080433

$1.19

29

BOLT(10) Substituted by 7512492

7515458

$1.19

29

BOLT(10) Substituted by 7512492

7515458

$1.19

30

WASHER(10)

7552603

$0.79

30

WASHER(10)

7552603

$0.79
