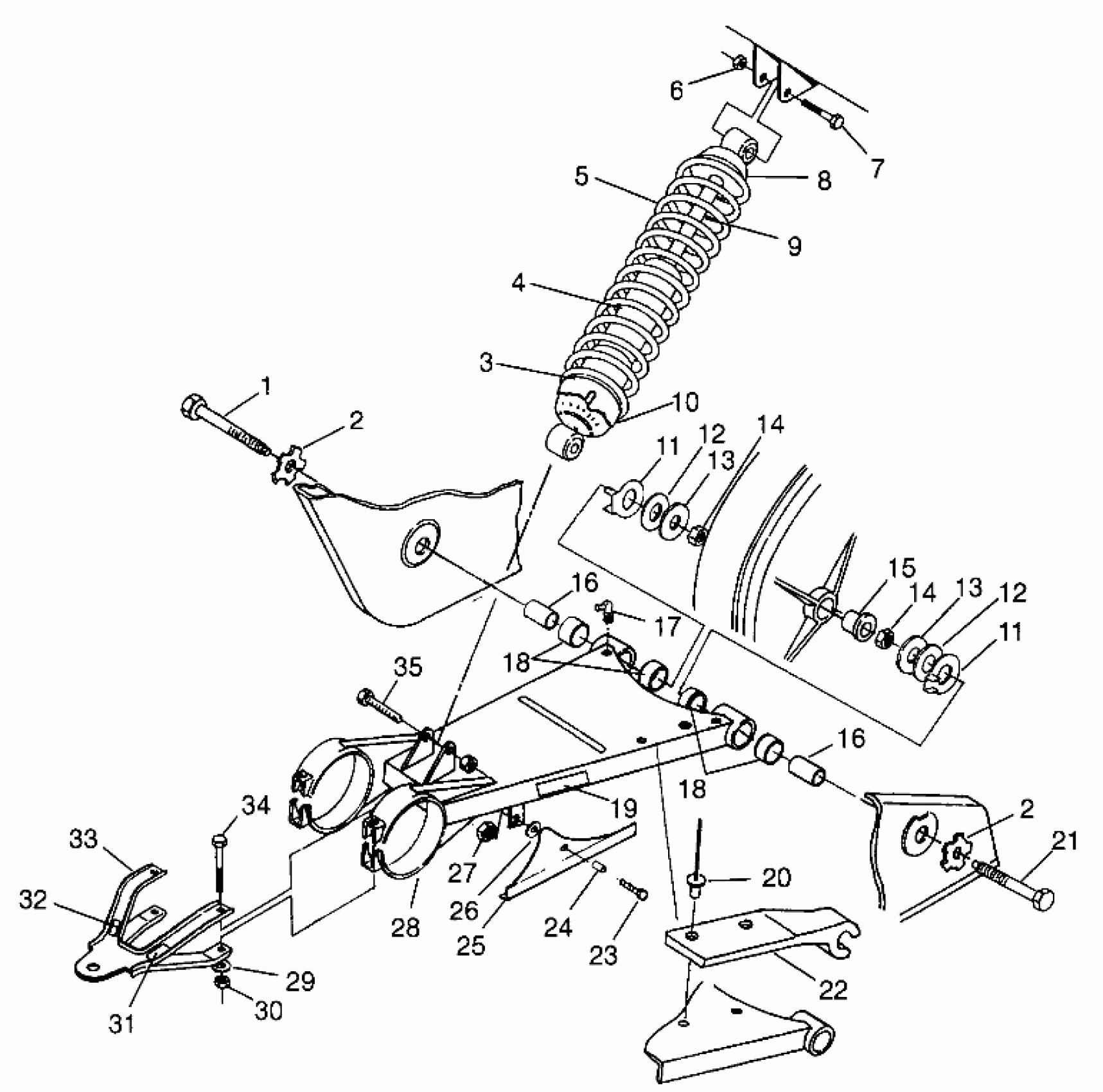

Polaris XPLORER 300 - W969130 SWING ARM/SHOCK MOUNTING XPLORER 300 W969130 (4935903590C001) Diagram

#

Description
Price

1

BOLT, SHOULDER

7512701

$23.99

2

PLATE,BOLT LOCK

5220958

$35.99

2

PLATE,BOLT LOCK

5220958

$35.99

3

ADAPTER,SPRING,SEAT

5630351

Unavailable

4

SLEEVE,SPRING PROTECTOR

5431032

$31.99

5

SPRING,COMP,REAR

7041204-067

$64.99

6

NUT-LOCK(10)

7542439

$1.49

7

BOLT(10)

7515415

$1.49

8

RETAINER, SHOCK

5222118

Unavailable

9

SHOCK,REAR

7041448

$151.99

10

CAM,ADJUSTING SPRING

5630334

$32.37

11

BUSHING

5240952

$34.99

11

BUSHING

5240952

$34.99

12

BUSHING Substituted by 5433414

5431977

Unavailable

12

BUSHING Substituted by 5433414

5431977

Unavailable

13

WASHER(10)

7555911

$4.79

13

WASHER(10)

7555911

$4.79

14

NUT, LOCK(10)

7542602

Unavailable

14

NUT, LOCK(10)

7542602

Unavailable

15

Bushing, Pivot (See Pg. C11, Ref.4)

-------

Unavailable

16

BUSHING,SWING ARM

5020793

$8.79

16

BUSHING,SWING ARM

5020793

$8.79

17

FITTING, LUBE. (45

7080438

$10.39

18

BUSHING,SWING ARM Substituted by 5433417

5431972

Unavailable

18

BUSHING,SWING ARM Substituted by 5433417

5431972

Unavailable

19

DECAL,LUBRICATION

7074214

Unavailable

20

RIVET(50)

7621433

$1.49

21

BOLT, SHOULDER

7512702

Unavailable

22

GUIDE, CHAIN

5431310

$32.37

23

SCREW-FLANGED(10)

7515304

$5.59

24

Bushing

5332828

$9.59

25

GUARD, CHAIN

5430776

$35.99

26

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

27

NUT LOCK(10)

7542321

$1.49

28

ARM ASM,SWING (Incl. 18, 17)

1580090

Unavailable

29

WASHER(10)

7555883

$3.99

30

NUT, LOCK,(10)

7542503

$10.39

31

DECAL,CHAIN FREE PLAY

7074752

Unavailable

32

DECAL, HITCH Substituted by 7078261

7072533

Unavailable

33

KIT, ATV HITCH Substituted by 2873036 (Incl. 29-34)

2200472

Unavailable

34

BOLT(10)

7512576

$7.99

35

BOLT(10)

7515438

$4.79
