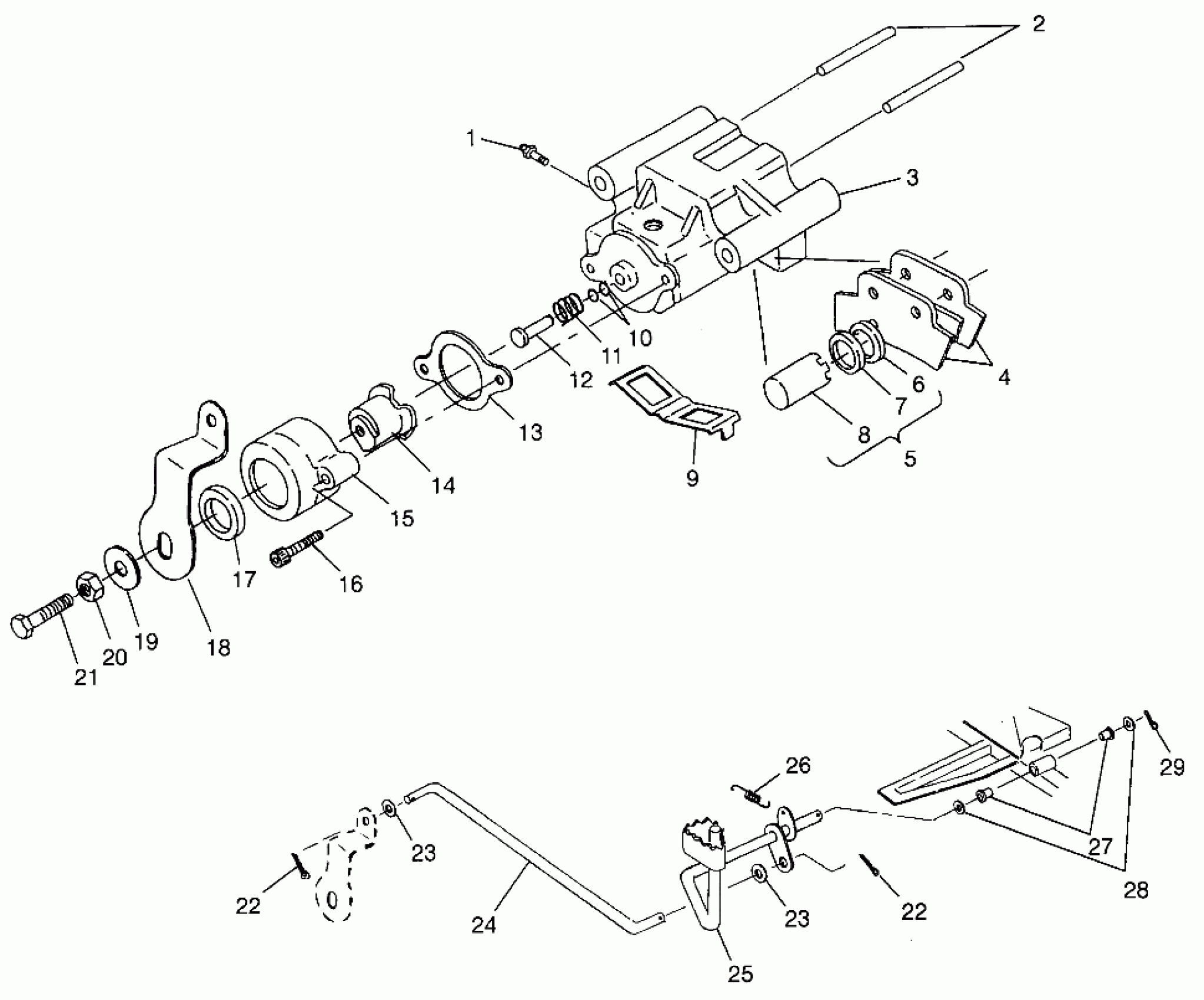

Polaris XPLORER 300 - W969130 REAR BRAKE XPLORER 300 W969130 (4935903590C006) Diagram

#

Description
Price

1

SCREW,BLEEDER

7080352

$3.17

2

PIN, DOWEL(10)

7661820

$13.99

3

CALIPER,R.BRAKE,MACH

5131272

Unavailable

3

CALIPER ASM,R.BRAKE Substituted by 1910226 (Incl. 1-3, 6-21)

1910209

Unavailable

4

KIT,R.BRAKEPAD,HVY.DUTY

2200899

Unavailable

5

KIT-PISTON & SEAL (Incl. 6-8)

2200463

$97.76

6

SQUARE RING-MOLDED (.134) (.134 Sq.)

5410766

$12.13

7

RING, SQUARE,(1''DIAM.) Substituted by 2200463 (.099 Sq.)

5410767

$97.76

8

PISTON,BRAKE Substituted by 2200463

5020667

$97.76

9

SPRING,ANTI-RATTLE

5240993

Unavailable

10

O RING-.364X.504X.07

5410542

$4.84

11

SPRING,BRAKE,COMP.

7041219

Unavailable

12

PIN,BRAKE CALIPER

5020666

Unavailable

13

GASKET, BRAKE

5830009

Unavailable

14

RAMP,MOVEABLE BRAKE Substituted by 2200905

5630458

Unavailable

15

RAMP, STAT.BRAKE Substituted by 2200905

5630457

Unavailable

16

SCREW(10)

7512173

Unavailable

17

SEAL, BRAKE

3610026

Unavailable

18

ARM, BRAKE CALIPER

5211692

Unavailable

19

WASHER, SPRING(10)

7555828

Unavailable

20

NUT(10)

7542129

$4.76

21

BOLT

7515145

Unavailable

22

PIN-COTTER(10)

7661205

$0.79

22

PIN-COTTER(10)

7661205

$0.79

23

WASHER(10)

7555827

$3.97

23

WASHER(10)

7555827

$3.97

24

ROD, BRAKE

5241621

$51.59

25

BRAKE,FOOT,BLK

1040514-067

$159.99

26

SPRING-EXHAUST(10)

7042029

$5.65

27

BUSHING-PEDAL PIVOT

5431107

$8.73

28

WASHER(10)

7555919

$4.99

29

COTTER PIN(10)

7661401

$0.79
