Description

Price

1

BOLT

3084829

Unavailable

2

WASHER(10) Substituted by 7555998

3083138

Unavailable

3

VALVE,CHECK

3084828

Unavailable

4

CLAMP, HOSE

3240173

Unavailable

4

CLAMP, HOSE

3240173

Unavailable

5

PIPE #1,VINYL (170mm)

3084826

Unavailable

6

SCREW-AIR VENT

3083125

Unavailable

7

PACKING(10)

3083126

$4.03

8

PUMP, OIL Substituted by 3085848 (Incl. 1-3, 6, 7, 9-14, 21)

3084824

Unavailable

9

Cap

3083758

$5.75

10

SPRING-RETURN

3083123

Unavailable

11

Collar, Camshaft

3083757

$4.39

12

LEVER,CONTROL

3084827

Unavailable

13

WASHER-SPRING(10)

3083121

$299.99

14

NUT(10)

3083120

$3.19

15

SCREW&WASHER,(10)

3083783

$2.39

16

SPACER *

3083428

$1.59

17

GEAR, SMALL (Requires Ref. 16)

3083429

Unavailable

17

GEAR, SMALL Substituted by 3083429 (Does Not Require Ref. 16)

3084825

Unavailable

18

O RING

3083129

Unavailable

19

BUSHING(OIL PUMP)

3083353

$31.99

20

SPACER #3 (0.6mm)

3083673

Unavailable

20

SPACER #2 (0.3mm)

3083672

Unavailable

20

SPACER #1 (0.15mm)

3083671

Unavailable

21

O RING

3083127

Unavailable

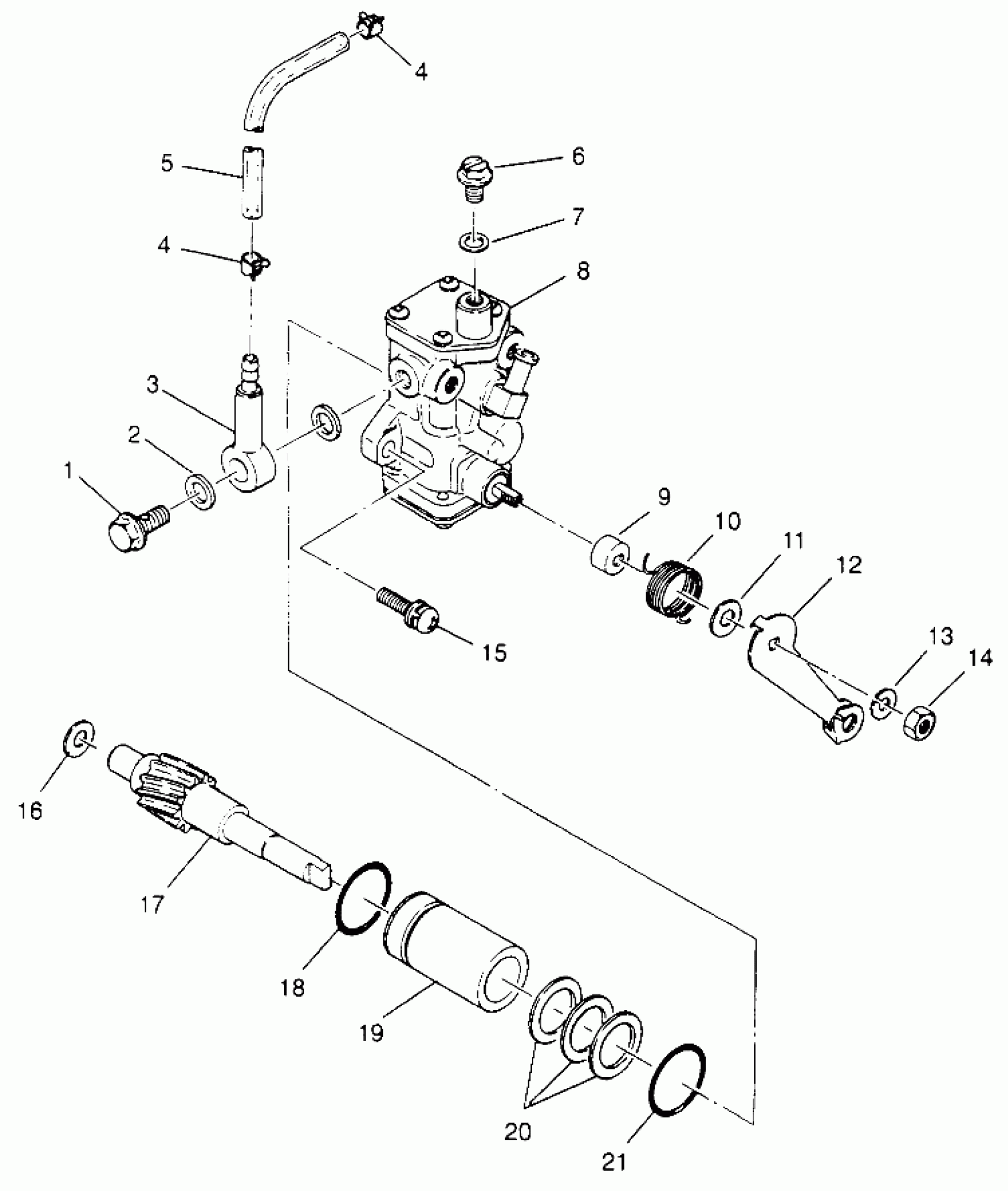

Polaris XPLORER 300 - W969130 OIL PUMP XPLORER 300 W969130 (4935903590D004) Diagram

BOLT

WASHER(10) Substituted by 7555998

VALVE,CHECK

CLAMP, HOSE

CLAMP, HOSE

PIPE #1,VINYL (170mm)

SCREW-AIR VENT

PACKING(10)

PUMP, OIL Substituted by 3085848 (Incl. 1-3, 6, 7, 9-14, 21)

Cap

SPRING-RETURN

Collar, Camshaft

LEVER,CONTROL

WASHER-SPRING(10)

NUT(10)

SCREW&WASHER,(10)

SPACER *

GEAR, SMALL (Requires Ref. 16)

GEAR, SMALL Substituted by 3083429 (Does Not Require Ref. 16)

O RING

BUSHING(OIL PUMP)

SPACER #3 (0.6mm)

SPACER #2 (0.3mm)

SPACER #1 (0.15mm)

O RING
