Description

Price

1

BOLT(10)

7515321

$1.49

2

DISC, BRAKE

5211325

$76.89

3

SEAL, FR. HUB

3610019

$35.99

4

Plate, Armature

5211148

$23.99

5

CLUTCH ASM,FR.HUB,E/M,HVY. Substituted by 1520281

1520214

$354.99

6

BRG,TAPER.ROLL.CONE

3554506

$31.99

6

BRG,TAPER.ROLL.CONE

3554506

$31.99

7

BRG,TAPER,ROLL CUP

3554507

$31.99

7

BRG,TAPER,ROLL CUP

3554507

$31.99

8

HUB ASM,W/BRG.RACE (Incl. 3, 7, 14)

1520182

Unavailable

9

Cage, Roll

3250028

$218.56

10

ROLLS

3250010

$35.99

11

SPRING,GARTER

3250032

$17.59

12

SPACER Substituted by 1321814

3250031

$24.99

13

Cam

3250030

$198.48

14

STUD(10)

7515523

$3.19

15

PLUG,PIPE

7052045

$12.79

16

TIRE,FR(22X8-10) (22x8x10)

5410480

Unavailable

17

HUB ASM,(3-LOBE)W/BRG.RACE (3-Lobe) w/Bearing Race (Incl. 3, 7, 14)

1520227

Unavailable

18

CAP,HUB,3-LOBE,(AWD) Substituted by 5432611

5432347

$13.89

19

SCREW(10) Substituted by 7511989

7512085

Unavailable

20

CAP, HUB

5431368

$23.99

21

O RING

5410470

$2.41

22

RING,RETAINING(10)

7710436

$4.79

23

NUT,LH THREAD

7543204

Unavailable

23

NUT,RH THREAD

7543201

Unavailable

24

WASHER(10)

7555903

Unavailable

25

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

26

RIM,FRT,(SILVER)

1520175-117

Unavailable

27

VALVE-RIM

1525017

$5.59

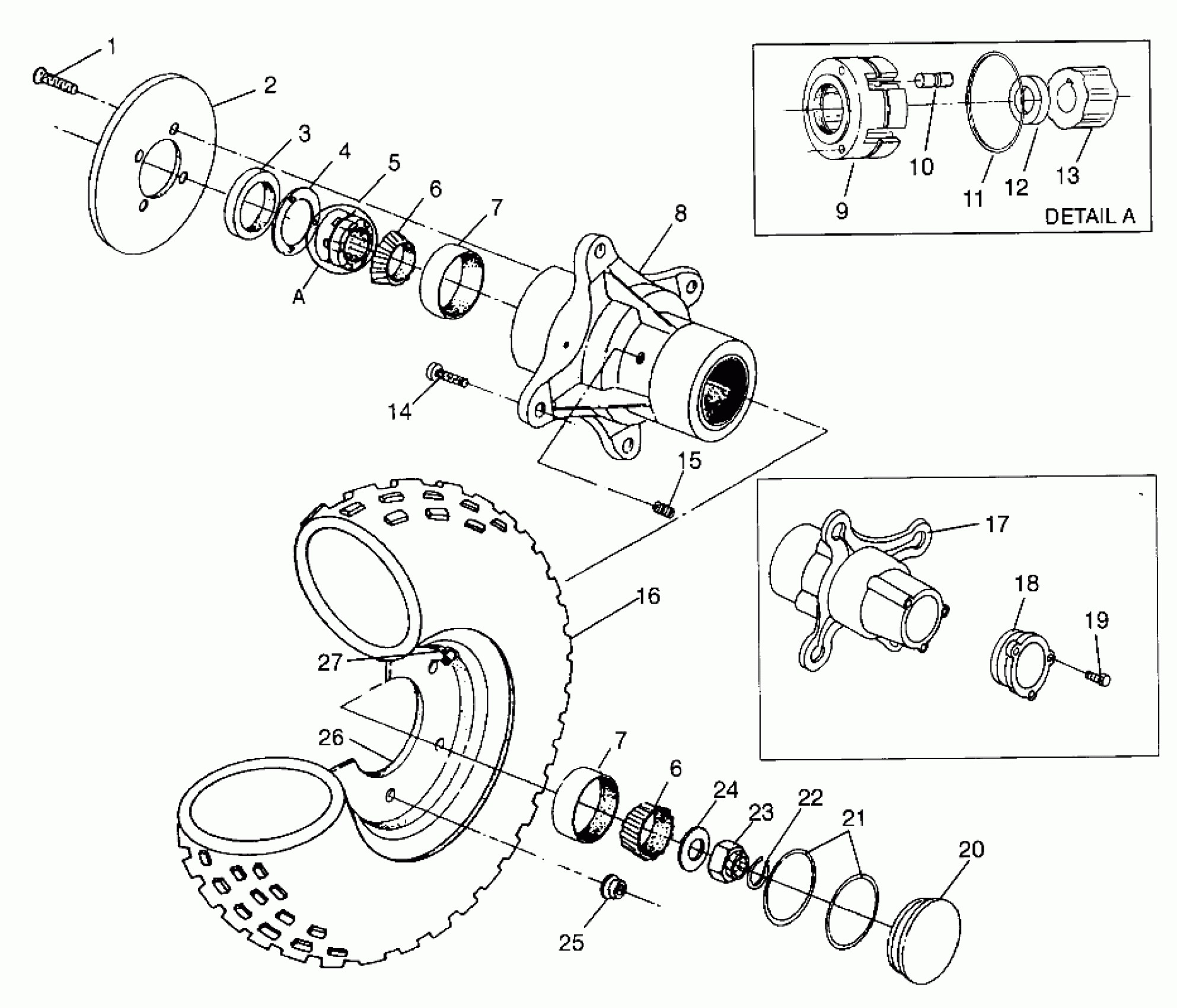

Polaris XPLORER 300 - W969130 FRONT WHEEL XPLORER 300 W969130 (4935903590B006) Diagram

BOLT(10)

DISC, BRAKE

SEAL, FR. HUB

Plate, Armature

CLUTCH ASM,FR.HUB,E/M,HVY. Substituted by 1520281

BRG,TAPER.ROLL.CONE

BRG,TAPER.ROLL.CONE

BRG,TAPER,ROLL CUP

BRG,TAPER,ROLL CUP

HUB ASM,W/BRG.RACE (Incl. 3, 7, 14)

Cage, Roll

ROLLS

SPRING,GARTER

SPACER Substituted by 1321814

Cam

STUD(10)

PLUG,PIPE

TIRE,FR(22X8-10) (22x8x10)

HUB ASM,(3-LOBE)W/BRG.RACE (3-Lobe) w/Bearing Race (Incl. 3, 7, 14)

CAP,HUB,3-LOBE,(AWD) Substituted by 5432611

SCREW(10) Substituted by 7511989

CAP, HUB

O RING

RING,RETAINING(10)

NUT,LH THREAD

NUT,RH THREAD

WASHER(10)

NUT-HXFL-3/8-24 B ZTB P-A

RIM,FRT,(SILVER)

VALVE-RIM
