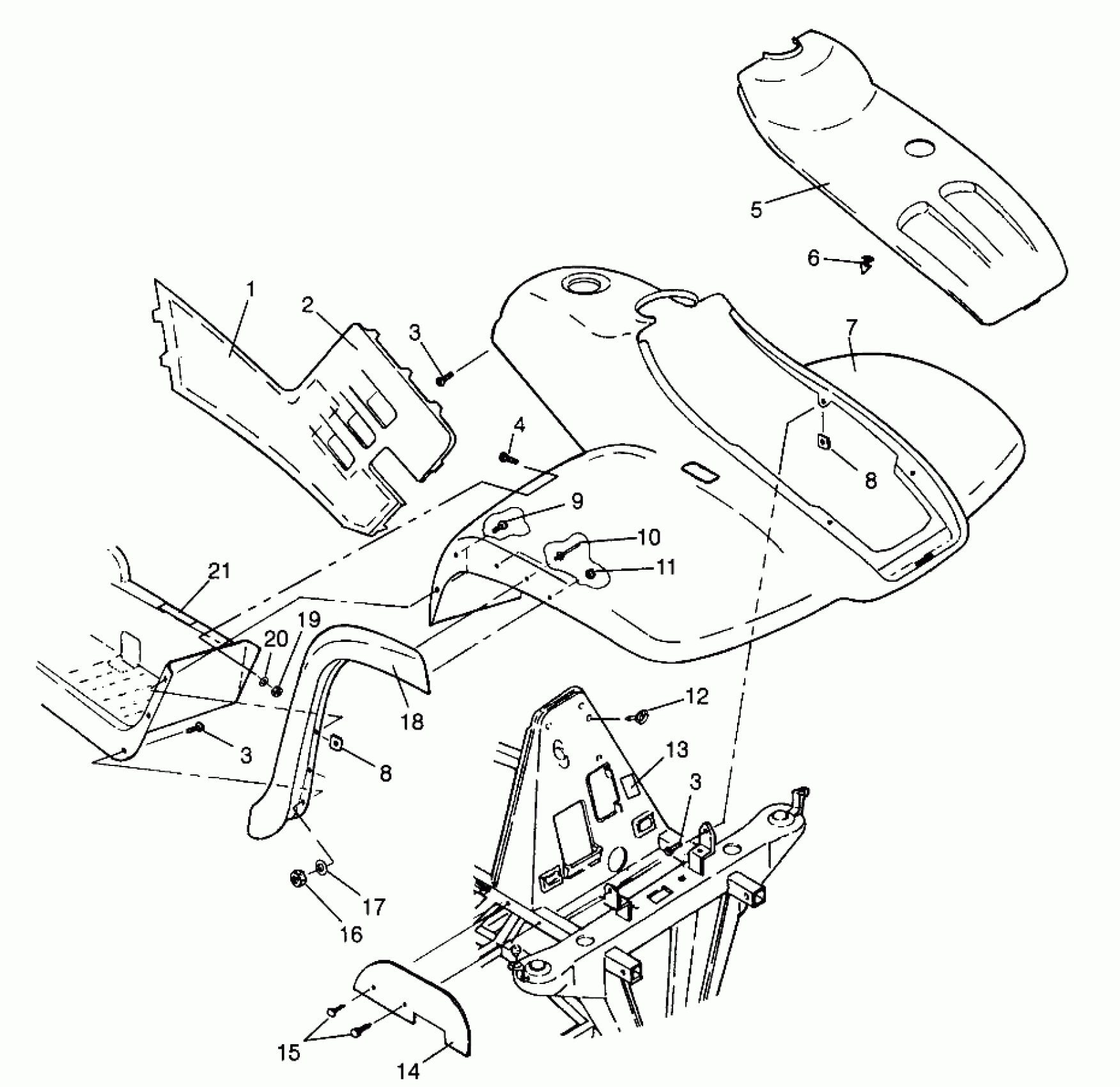

Polaris XPLORER 300 - W969130 FRONT CAB XPLORER 300 W969130 (4935903590A005) Diagram

#

Description
Price

1

FOIL,FOAM,SIDEPANEL(300)

5811210

$34.92

2

PANEL ASM,RH,EB GREEN (Incl. Foil & Foam)

2620096-195

Unavailable

2

PANEL,LH,SIDE,E.B.GRN. (Eddie Bauer Green)

5431809-195

Unavailable

3

BOLT(10)

7512232

$1.49

3

BOLT(10)

7512232

$1.49

3

BOLT(10)

7512232

$1.49

4

SCREW(10) Substituted by 7511989

7512085

Unavailable

5

COVER,FR,E.B.GRN.

5431806-195

$115.99

6

CLIP,SPRING(10)

7670085

$3.51

7

CAB ASM,FR,300,EB GRN. (Incl. Warning Decals)

2631782-195

Unavailable

8

NUT, SPEED(10)

7670057

$1.49

8

NUT, SPEED(10)

7670057

$1.49

9

SCREW(10)

7522026

$4.79

10

RIVET(50)

7661645

$3.99

11

PALNUT(10)

7670009

$2.39

12

CLAMP,WIRE ROUTING(10)

7080409

$2.39

13

DECAL,CAUTION,"FAN"

7074819

Unavailable

14

SHIELD,RH,DEFLECTOR

5811098

Unavailable

14

SHIELD,LH,DEFLECTOR

5811096

Unavailable

15

CLIP-PLASTIC DART, NYLON

7670088

$1.59

16

NUT-LOCK(10)

7542122

$1.49

17

WASHER(10) Substituted by 7558221

7555931

Unavailable

18

MUDGUARD,LH,FRT.BLK. Substituted by 5431798-070

5431798

Unavailable

18

MUDGUARD,RH,FRT.BLK. Substituted by 5431799-070

5431799

$84.99

19

NUT, LOCK(10) Substituted by 7541925

7541929

Unavailable

20

WASHER(10)

7555792

$4.79

21

DECAL,DRAIN RECOIL Substituted by 7078577

7075741

Unavailable
