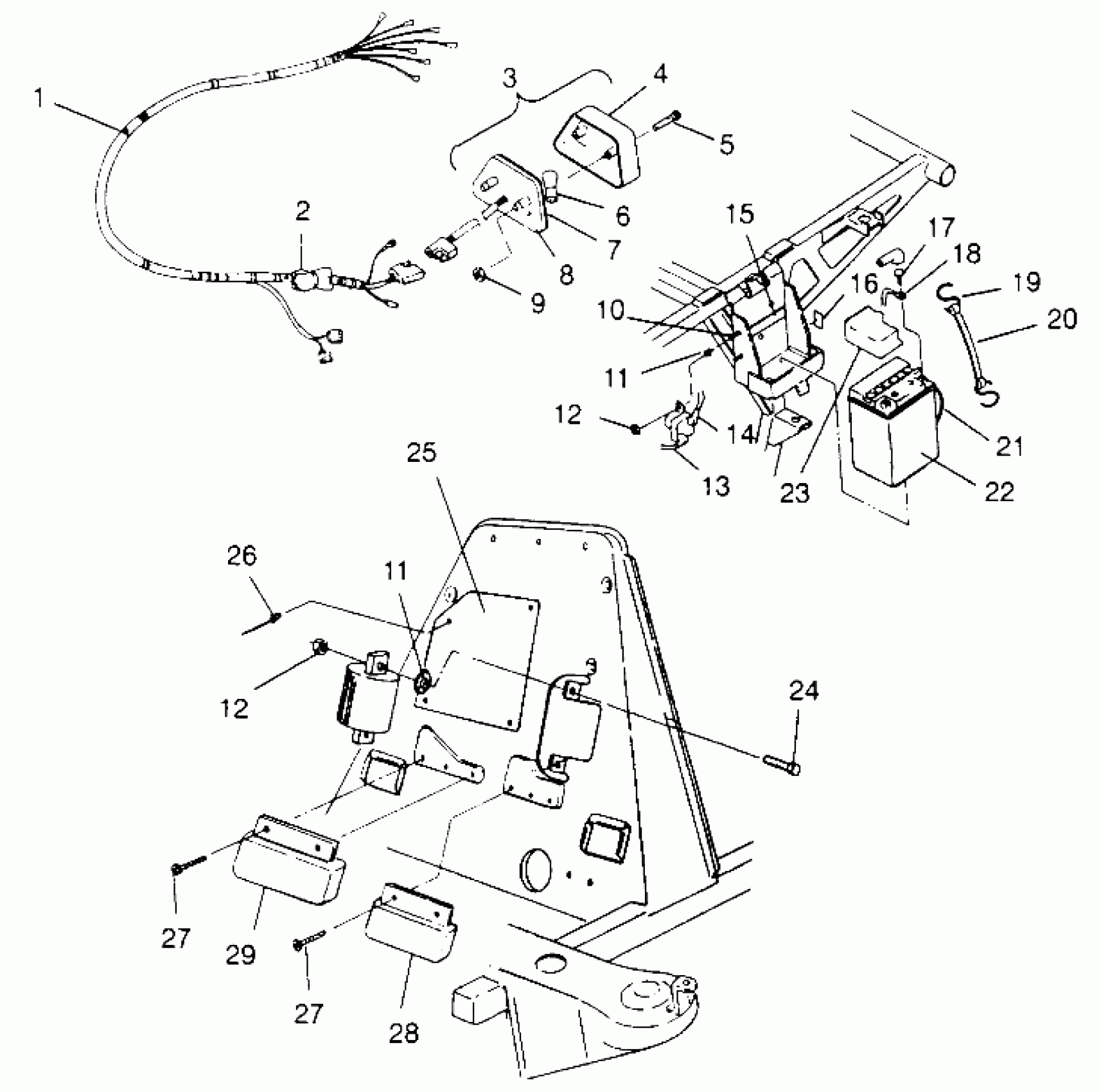

Polaris XPLORER 300 - W969130 ELECTRICAL/TAILLIGHT ASSEMBLY XPLORER 300 W969130 (4935903590C008) Diagram

#

Description
Price

1

HARNESS-MAIN WIRE

2460554

Unavailable

2

KIT,CKT.BRKR,20 AMP

2200593

$63.99

3

TAIL LIGHT ASM. (Incl. 4-9)

2432034

$55.99

4

LENS,TAILLIGHT

4032046

$32.37

5

Screw, Taillight

4032029

$4.79

6

BULB,TAILLIGHT

4030043

$6.46

7

GASKET,TAILLIGHT

4032045

$4.03

8

BACKING,TAILLIGHT

4032064

$83.99

9

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

10

SCREW(10)

7512027

$1.49

11

WASHER(10)

7571602

$4.79

11

WASHER(10)

7571602

$4.79

12

NUT(10)

7541925

$1.49

12

NUT(10)

7541925

$1.49

13

CABLE,SOLENOID/STARTER

4010064

Unavailable

14

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

15

PAD-BATTERY

5810290

$7.27

16

DECAL, BATTERY [No Longer Available]

7072606

Unavailable

17

BOLT,BATT,KIT(SHORT) (Short)

2200361

$3.99

18

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

19

HOOK-BATT.H/D(10)

7010032

$1.59

20

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

21

TUBE,BATTERY VENT

5432077

Unavailable

22

Battery

4140006

$99.99

23

COVER,BATTERY

5431769

$14.39

24

SCREW(10)

7512007

$3.99

25

BOARD,TERMINAL,150 ALT,ATV

4040063

Unavailable

26

RIVET,(50)

7621336

$1.59

27

SCREW,(10)

7512024

$4.79

27

SCREW,(10)

7512024

$4.79

28

RECTIFIER, VOLTAGE

4060087

Unavailable

29

LIMITER,REV.SPEED

4060085

Unavailable
