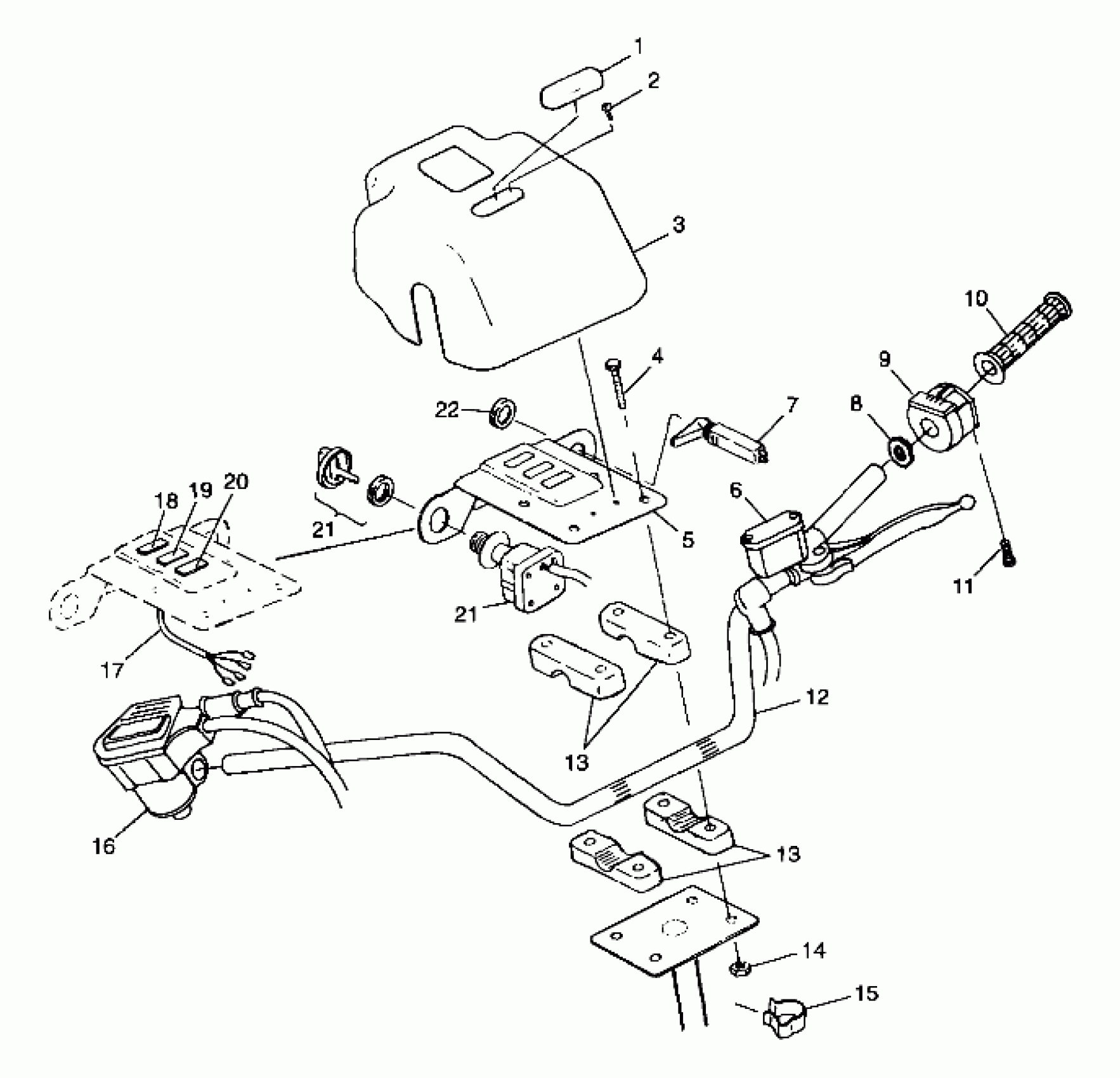

Polaris XPLORER 300 - A99CC28CA HANDLEBAR - A99CC28CA (4949484948b011) Diagram

#

Description
Price

1

COVER-LOGO, BLK

5432247-070

Unavailable

2

SCREW,(10)

7512024

$4.79

3

PANEL,INST.,BLK

5432246-070

Unavailable

4

Screw

7517216

Unavailable

5

BRKT,INST.PANEL,BLK

5241397-067

$24.79

6

Asm., Master Cylinder (See Footnote) (See Control - Master Cyl./Brake Line Pg. B10 for Details)

-------

Unavailable

7

KIT-CHOKE CONTROL

2200188

$24.27

7

CABLE,CHOKE CONTROL

7080579

$97.13

8

SPACER-PLASTIC (.88)

5433198

Unavailable

9

SWITCH,HI/LOW/OFF,LH,H'BAR

4110193

$184.99

10

GRIP, HANDLEBAR

5431030

$24.27

11

SCREW

2010055

Unavailable

12

HANDLEBAR,TUBE,BLK

5224715-067

Unavailable

13

BLOCK,H'BAR,(300)

5630629

$11.59

13

BLOCK,H'BAR,(300)

5630629

$11.59

14

NUT-LOCK(10)

7542122

$1.49

15

CLIP,CABLE RETAIN,(10)

7080631

$6.29

16

Asm., Throttle Control (See Footnote) (See Controls - Throttle Asm./Cable Pg. B9, Ref. 5)

-------

Unavailable

17

HARNESS,CONTROL PANEL

2460553

Unavailable

18

INDIC"NEUT./REV."

4040054

$31.99

19

INDIC"LOW OIL&HI-BEAM."

4040052

$31.99

20

PLUG,INDIC.HOLE

5430967

$5.65

21

COVER, KEY Substituted by 5433534

5431964

Unavailable

21

SWITCH, IGNITION (Incl. Key) (See Footnote) NOTE: Ignition key may be ordered by using the four digit number on the key.

4110194

Unavailable

21

COVER, KEY Substituted by 5433534

5431964

Unavailable

21

SWITCH, IGNITION (Incl. Key) (See Footnote) NOTE: Ignition key may be ordered by using the four digit number on the key.

4110194

Unavailable

22

Nut

7080229

$19.99
