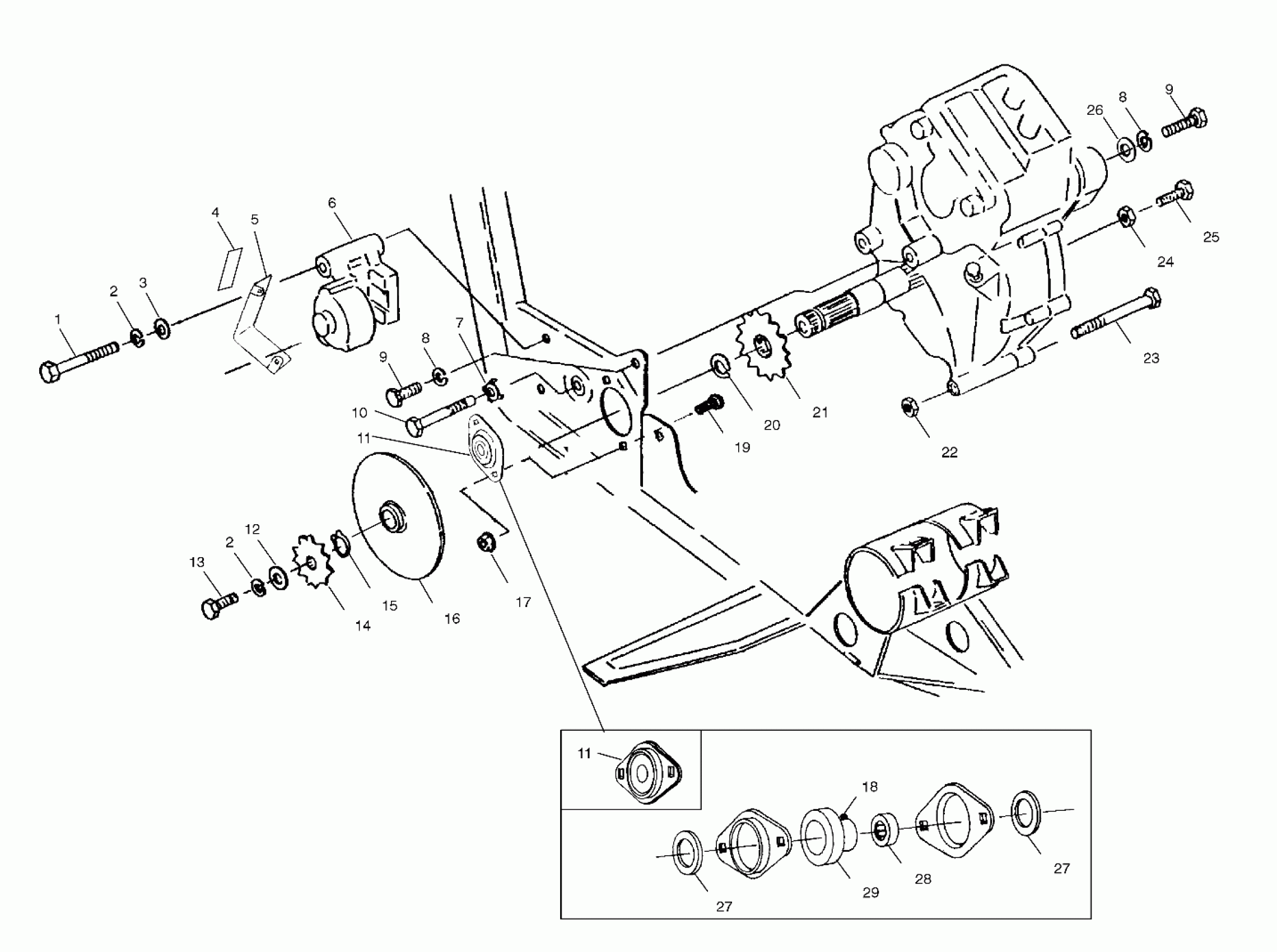

Polaris XPLORER 300 - A99CC28CA GEARCASE/BRAKE and CHAIN COVER MOUNTING - A99CC28CA (4949484948c006) Diagram

#

Description
Price

1

BOLT(10)

7515345

$5.56

2

LOCK WASHER(10)

7552901

$1.19

2

LOCK WASHER(10)

7552901

$1.19

3

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

4

DECAL,BRAKE SHIELD

7075339

Unavailable

5

SHIELD,R.CALIPER,BLK.

5241018-067

Unavailable

6

CALIPER ASM,R.BRAKE

1910226

Unavailable

7

Plate, Bolt Lock (See Footnote) (See Swing Arm/Shock Mounting Pg. B14, Ref. 2)

----

Unavailable

8

WASHER(10)

7552603

$0.79

8

WASHER(10)

7552603

$0.79

9

BOLT(10)

7515522

$3.97

9

BOLT(10)

7515522

$3.97

10

Bolt, Shoulder (See Footnote) (See Swing Arm/Shock Mounting Pg. B14, Ref. 16)

----

Unavailable

11

KIT,RELUBE BEARING (Incl. 18,27-29)

2201115

Unavailable

11

KIT,RELUBE BEARING (Incl. 18,27-29)

2201115

Unavailable

12

WASHER FLAT(10)

7555701

$3.97

13

BOLT(10)

7515321

Unavailable

14

SPKT, 11T

3221058

$74.99

15

RING,RETAINING(10)

7710433

$4.76

16

DISC ASM,BRAKE

1910177

Unavailable

17

NUT,FLANGE LOCK(10)

7542449

$3.97

18

ZERK,FITTING,THREADED(10)

7080433

$1.19

19

BOLT,CARRIAGE(10)

7515484

Unavailable

20

RING,SNAP(10)

7710434

$3.97

21

SPKT,13T,SPLINED

3221041

$44.51

22

NUT LOCK(10)

7542403

Unavailable

23

BOLT(10)

7515472

$2.38

24

NUT(10)

7542404

$1.59

25

BOLT(10)

7515485

$3.02

26

WASHER(10)

7555806

$0.79

27

SEAL,BRAKE

3610062

Unavailable

27

SEAL,BRAKE

3610062

Unavailable

28

BEARING,NEEDLE

3554202

Unavailable

29

HSG,BRNG,O/P SHAFT

5131643

Unavailable
