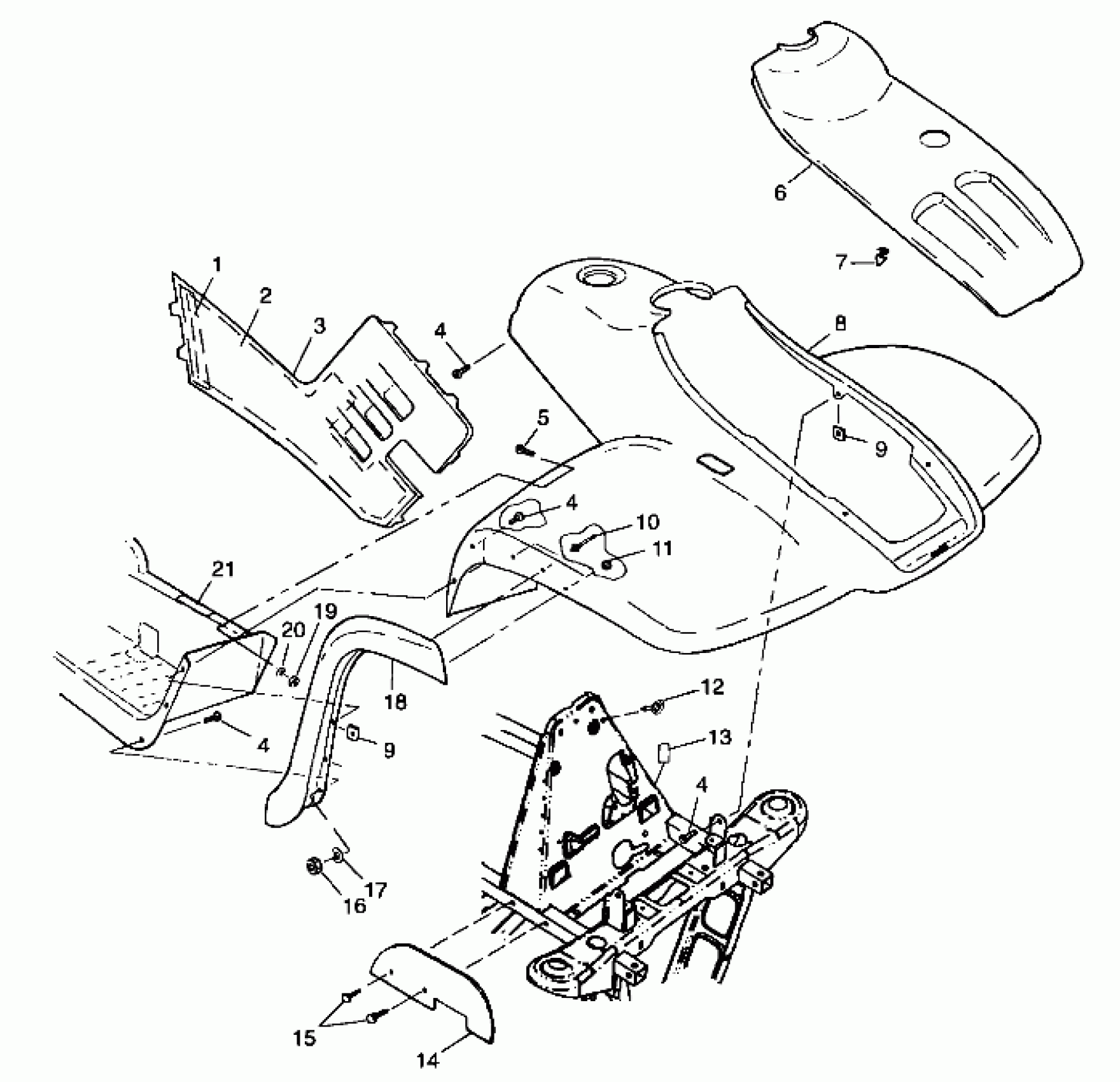

Polaris XPLORER 300 - A99CC28CA FRONT CAB - A99CC28CA (4949484948a007) Diagram

#

Description
Price

1

FOIL,RH,SIDEPANEL,GEN IV

5811491

Unavailable

2

FOIL,FOAM,SIDEPANEL(300)

5811210

$34.92

3

PANEL ASM,RH,EB GREEN (Incl. Foil & Foam)

2620096-195

Unavailable

3

PANEL,LH,SIDE,E.B.GRN.

5431809-195

Unavailable

4

BOLT(10)

7512232

$1.49

4

BOLT(10)

7512232

$1.49

4

BOLT(10)

7512232

$1.49

4

BOLT(10)

7512232

$1.49

5

SCREW(10) Substituted by 7511989

7512085

Unavailable

6

COVER,FR,E.B.GRN.

5431806-195

$115.99

7

CLIP,SPRING(10)

7670085

$3.51

8

CAB,FRONT GREEN Substituted by 2632303-195 (Incl. Warning Decals)

2631990-195

$281.75

9

NUT, SPEED(10)

7670057

$1.49

9

NUT, SPEED(10)

7670057

$1.49

10

RIVET(50)

7661645

$3.99

11

PALNUT(10)

7670009

$2.39

12

CLAMP,WIRE ROUTING(10)

7080409

$2.39

13

DECAL,CAUTION,"FAN"

7074819

Unavailable

14

SHIELD,DEFLECTOR Substituted by 5811917

5811489

$7.38

15

CLIP-PLASTIC DART, NYLON

7670088

$1.59

16

NUT-LOCK(10)

7542122

$1.49

17

WASHER(10) Substituted by 7558221

7555931

Unavailable

18

MUDGUARD,LH,FRT.BLK. Substituted by 5431798-070

5431798

Unavailable

18

MUDGUARD,RH,FRT.BLK. Substituted by 5431799-070

5431799

$84.99

19

NUT(10)

7541925

$1.49

20

WASHER(10)

7555792

$4.79

21

Decal - Drain Recoil (See Decal Pg. A9, Ref. 11)

-------

Unavailable
