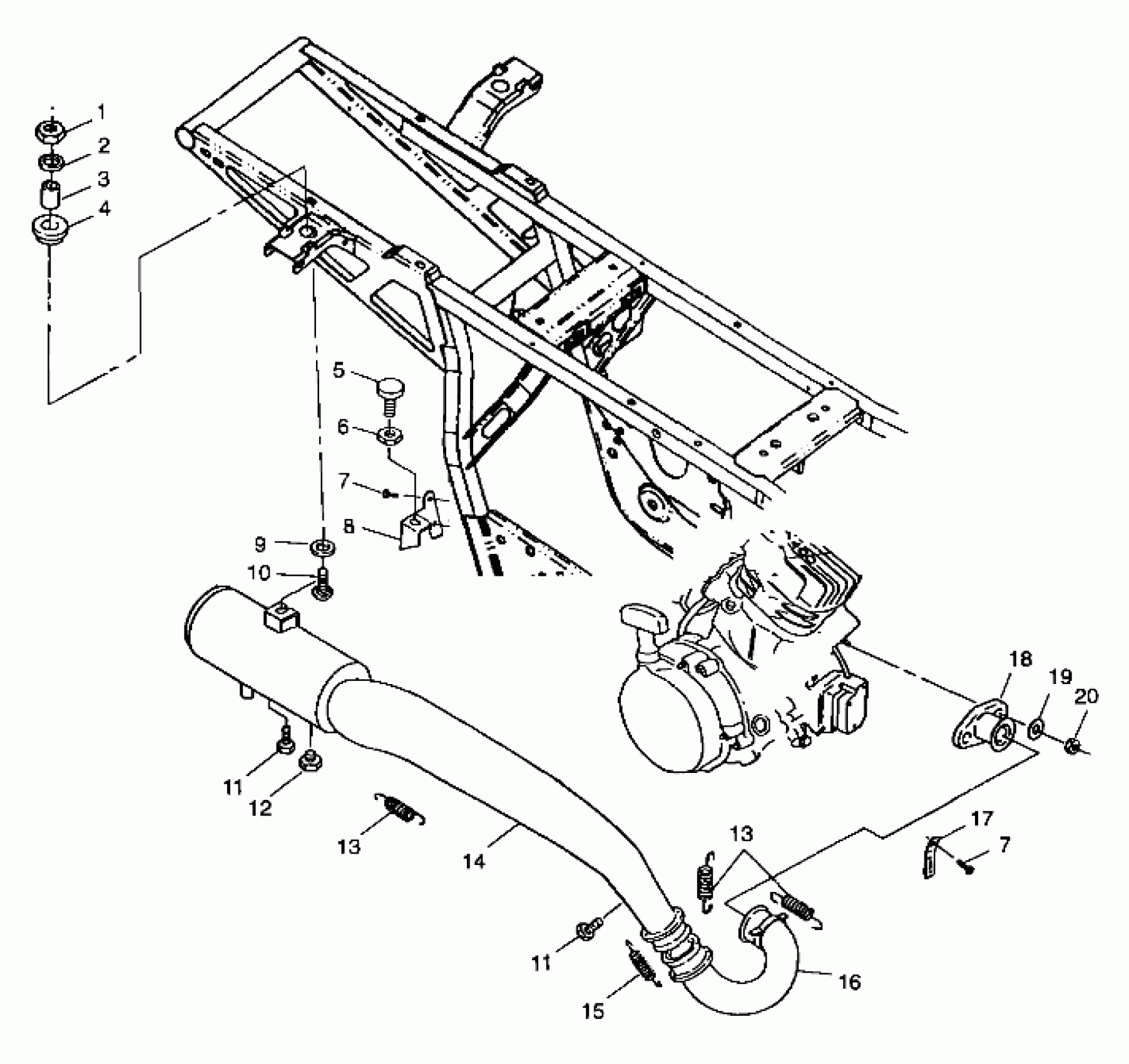

Polaris XPLORER 300 - A99CC28CA EXHAUST SYSTEM - A99CC28CA (4949484948a013) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

2

WASHER(10)

7555716

$1.59

3

BUSHING-RES. MT.

5010192

$6.39

4

DAMPENER

5410241

Unavailable

5

MOUNT,TORQUE-STOP

3110064

Unavailable

6

NUT HEX(10)

7542301

$1.59

7

BOLT(10)

7512232

$1.49

7

BOLT(10)

7512232

$1.49

8

BRKT,MFLR.SUPPORT,BLK

5242081-067

Unavailable

9

WASHER,RUBBER

5410436

$1.59

10

BOLT(10)

7515316

$2.39

11

BOLT(10)

7512666

$2.39

11

BOLT(10)

7512666

$2.39

12

PLUG, CLEANOUT

7052083

$15.87

13

SPRING-EXHAUST(10)

7042029

$4.84

13

SPRING-EXHAUST(10)

7042029

$4.84

14

EXHAUST WELD,BLK.

1260702-029

Unavailable

15

SPRING, EXHAUST(10)

7042031

$5.65

16

HEADPIPE WELD.

1260658-029

Unavailable

17

TAB, SPRINGS

5222665

Unavailable

18

MANIFOLD, BLK.

1260543-029

Unavailable

19

Washer, Spring (See Footnote) (See Crankcase and Cylinder Pg. C14, Ref. 36)

-------

Unavailable

20

Nut (See Footnote) (See Crankcase and Cylinder Pg. C14, Ref. 37)

-------

Unavailable
